Combination Meter: Components: Illustration

Fig 1: Combination Meter Replacement Components With Torque Specifications (1 Of 3)
GTY307067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

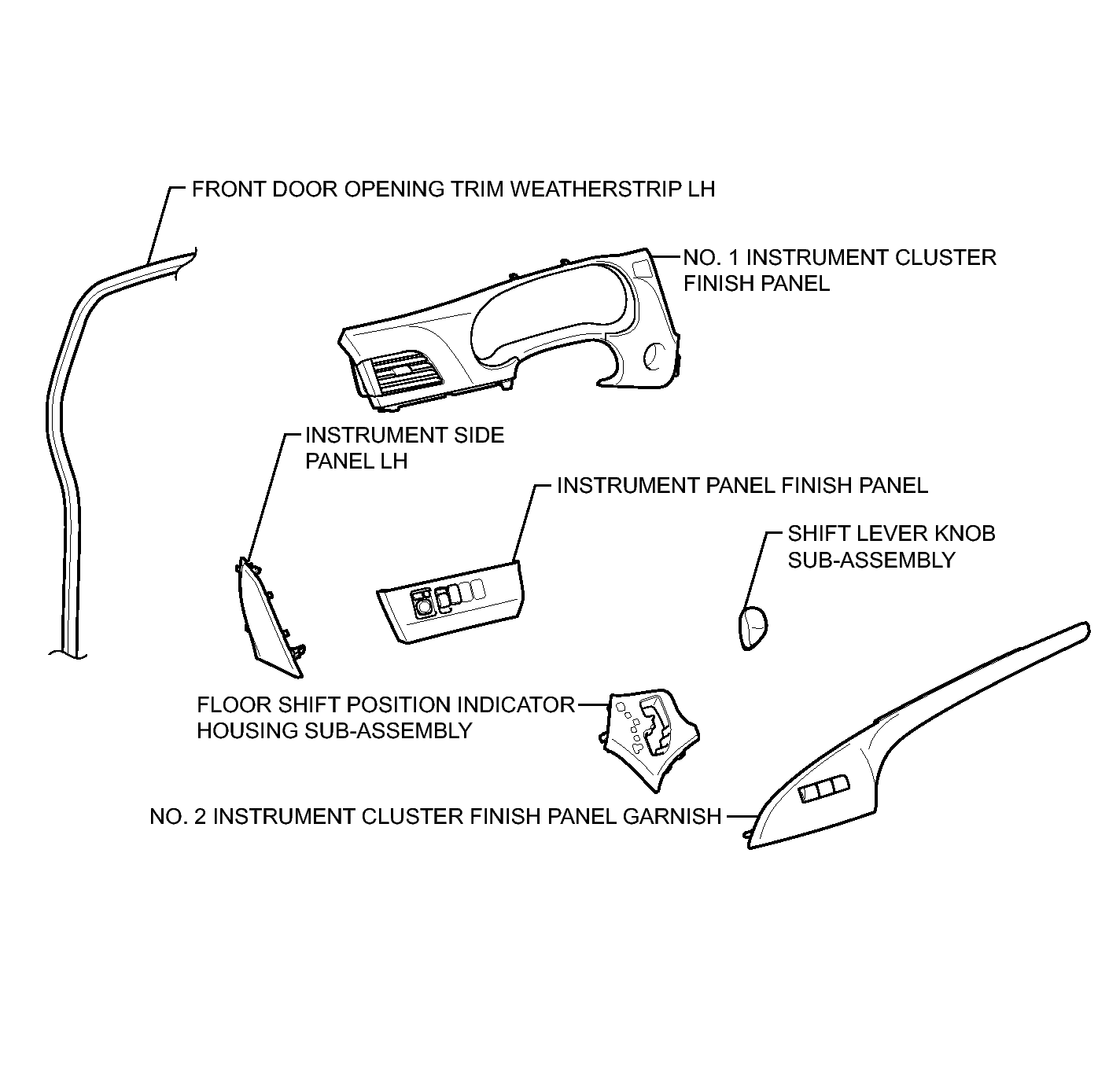

Fig 1: Combination Meter Replacement Components (2 of 3)
GTY304842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

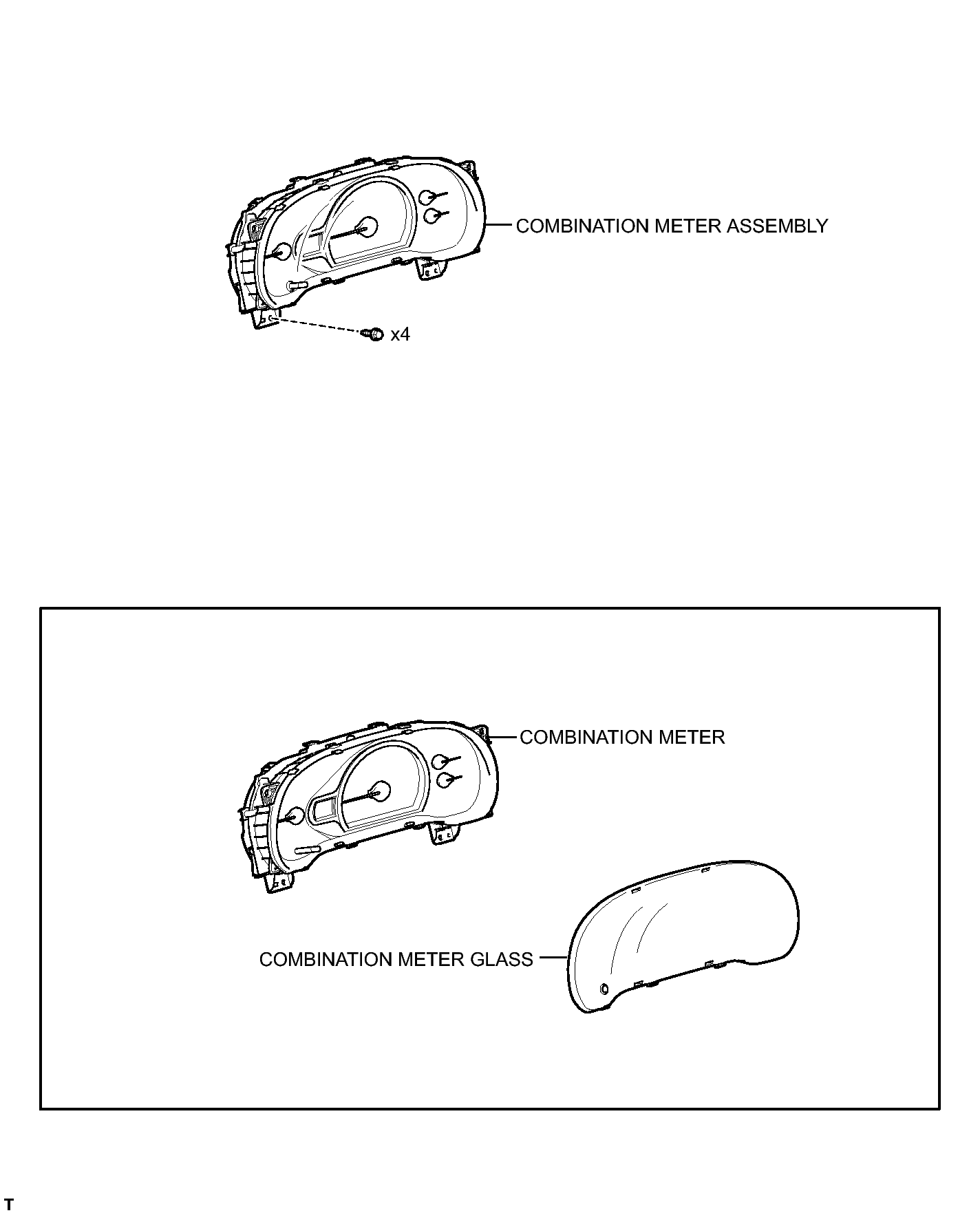

Fig 1: Combination Meter Replacement Components (3 of 3)
GTY295504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
