Fuel Tank: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

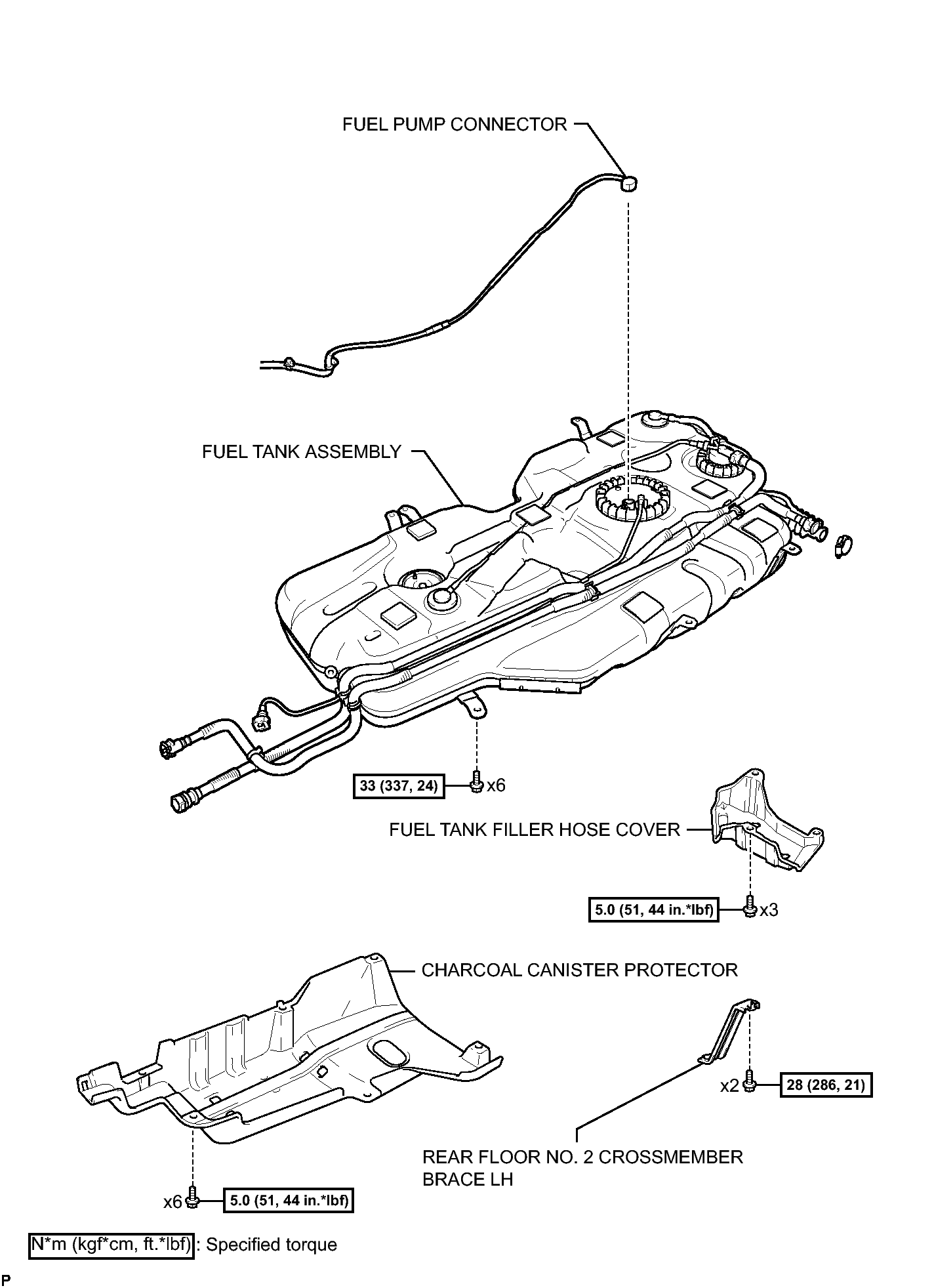

Fig 1: Fuel Tank Replacement Components (1 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

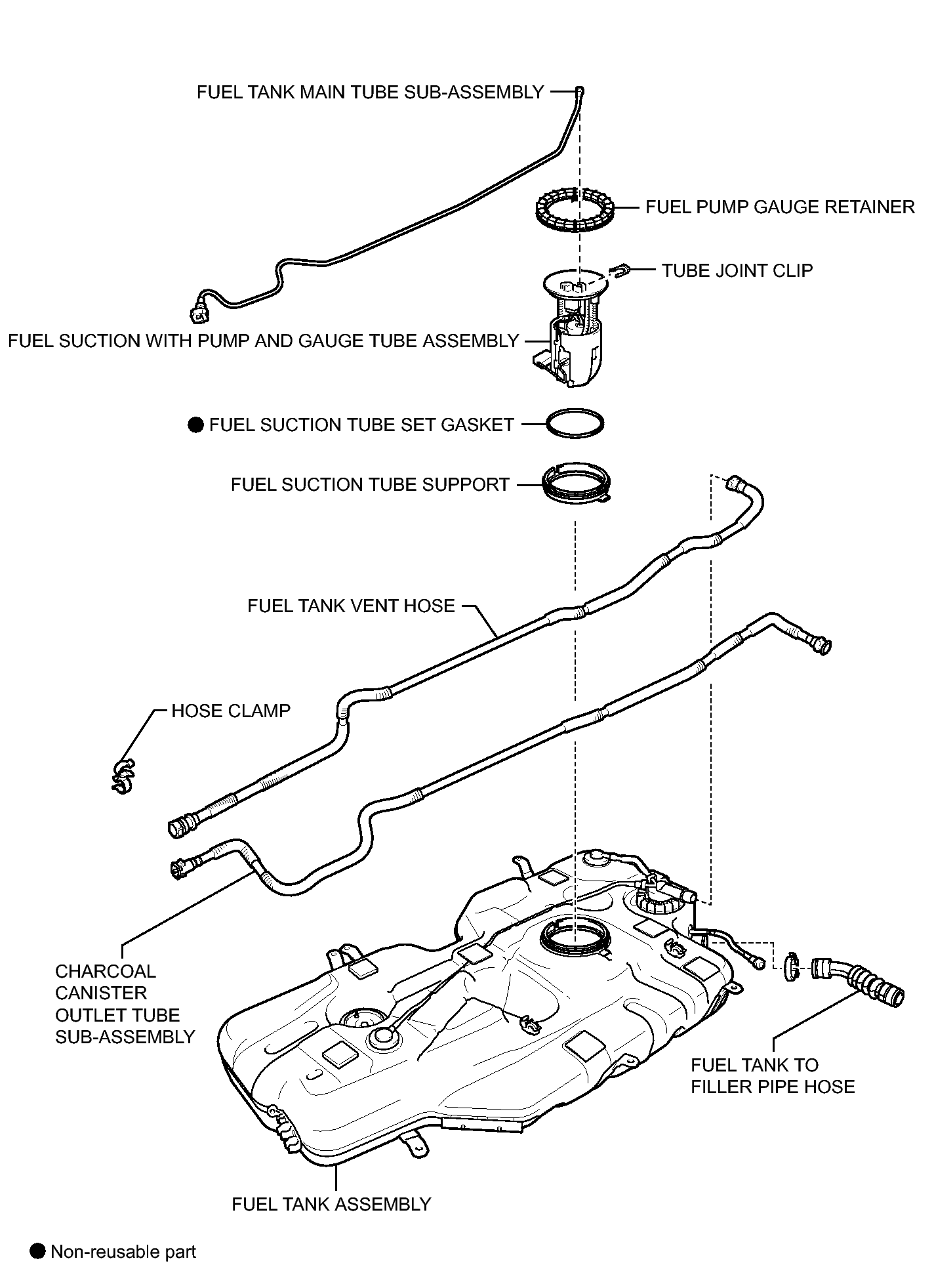

Fig 1: Fuel Tank Replacement Components With Torque Specifications (2 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

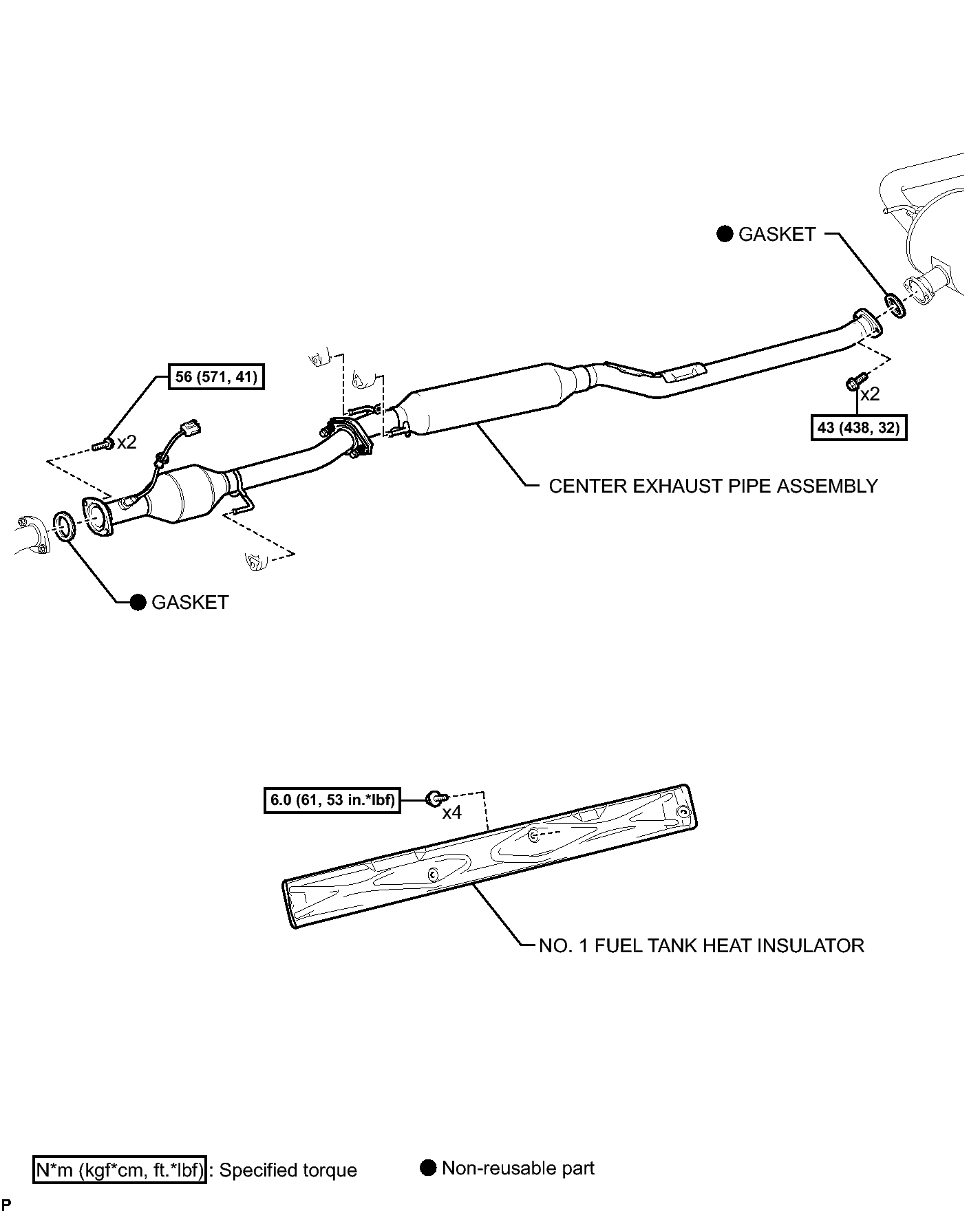

Fig 1: Fuel Tank Replacement Components With Torque Specifications (3 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Fuel Tank Replacement Components With Torque Specifications (3 of 4)

Fig 1: Fuel Tank Replacement Components With Torque Specifications (5 of 5)
