Fuel Pressure Pulsation Damper: Installation: Installation

1. Apply a light coat of gasoline or spindle oil to a new O-ring.
2. Install the O-ring to the fuel pressure pulsation damper.
3. Install the fuel pressure pulsation damper with the 2 bolts.

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

   NOTE:

   Make sure that the O-ring is not cracked or jammed when installing the damper.

1. Line up the pipe and connector and push them together until a "click" sound is heard. Refer to PRECAUTION .

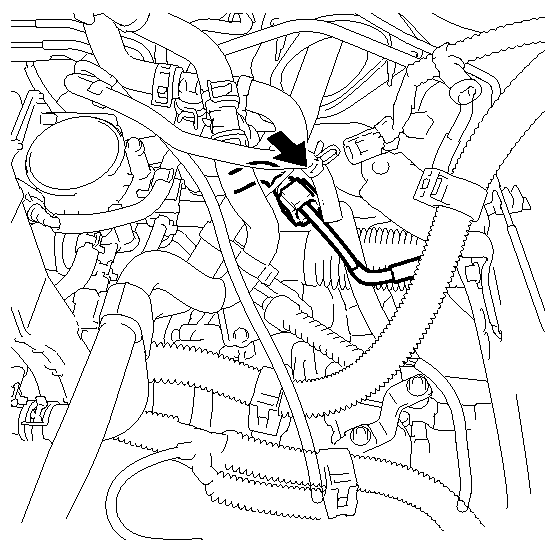

   Fig 1: Installing Fuel Tube Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   Push

   NOTE:

   • Check that there are no scratches or foreign objects on the connecting part.
   • Check that the tube is inserted securely.
   • Check that the tube is securely connected by pulling on it.
2. Engage the claw and install the EFI fuel pipe clamp.
3. Connect the fuel tube.
   Fig 2: Precautions - Removing/Installing Fuel Tube Connectors (Metallic Type)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	EFI Fuel Pipe Clamp
   	Push

4. Push the fuel tube connector until it makes a "click" sound.
5. Install the EFI fuel pipe clamp.
6. Install the fuel tube to the fuel hose clamp.

Refer to INSTALLATION
