Valve Body Assembly: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

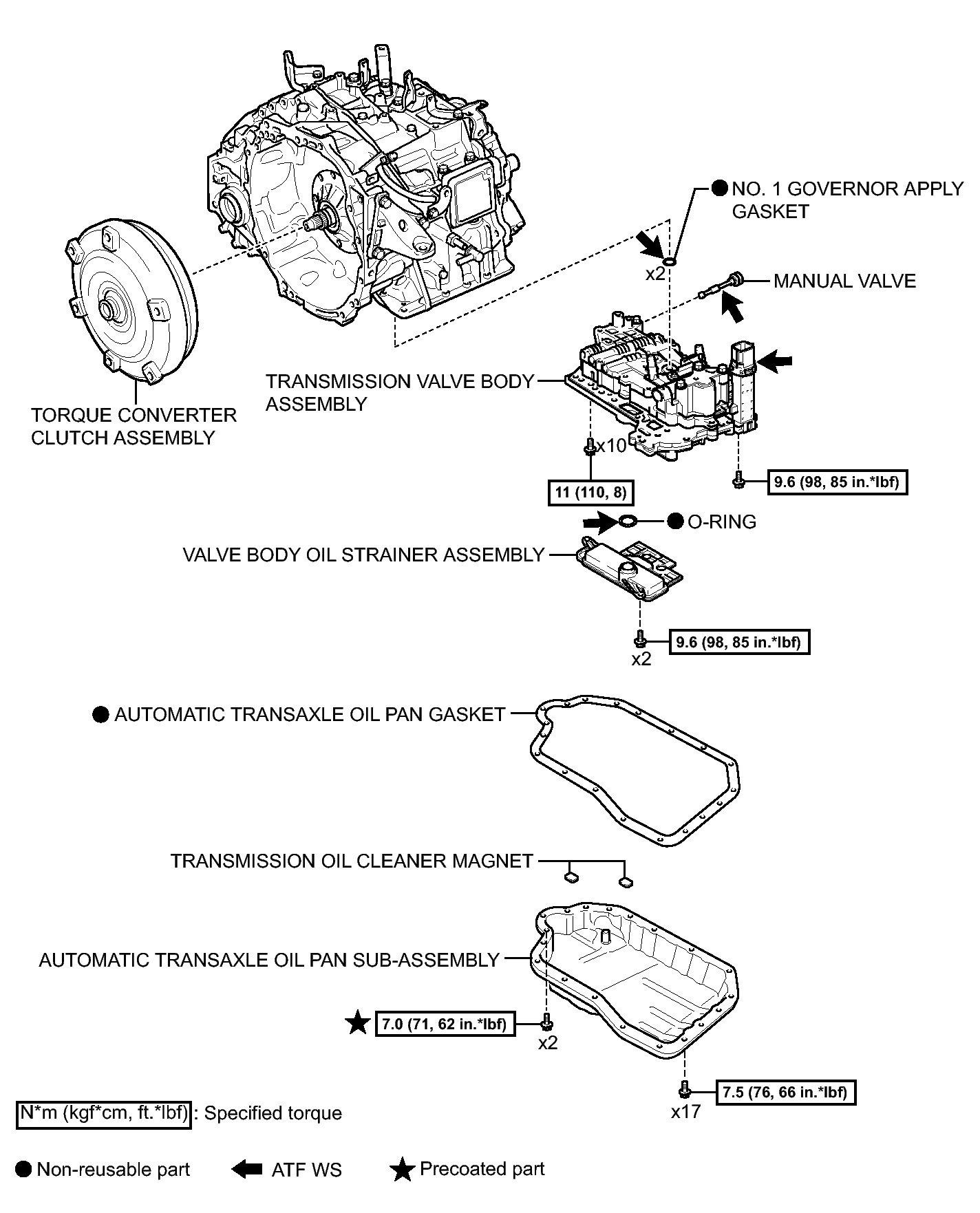

Fig 1: Valve Body Assembly Replacement Components With Torque Specifications (1 Of 3)
GTY295076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

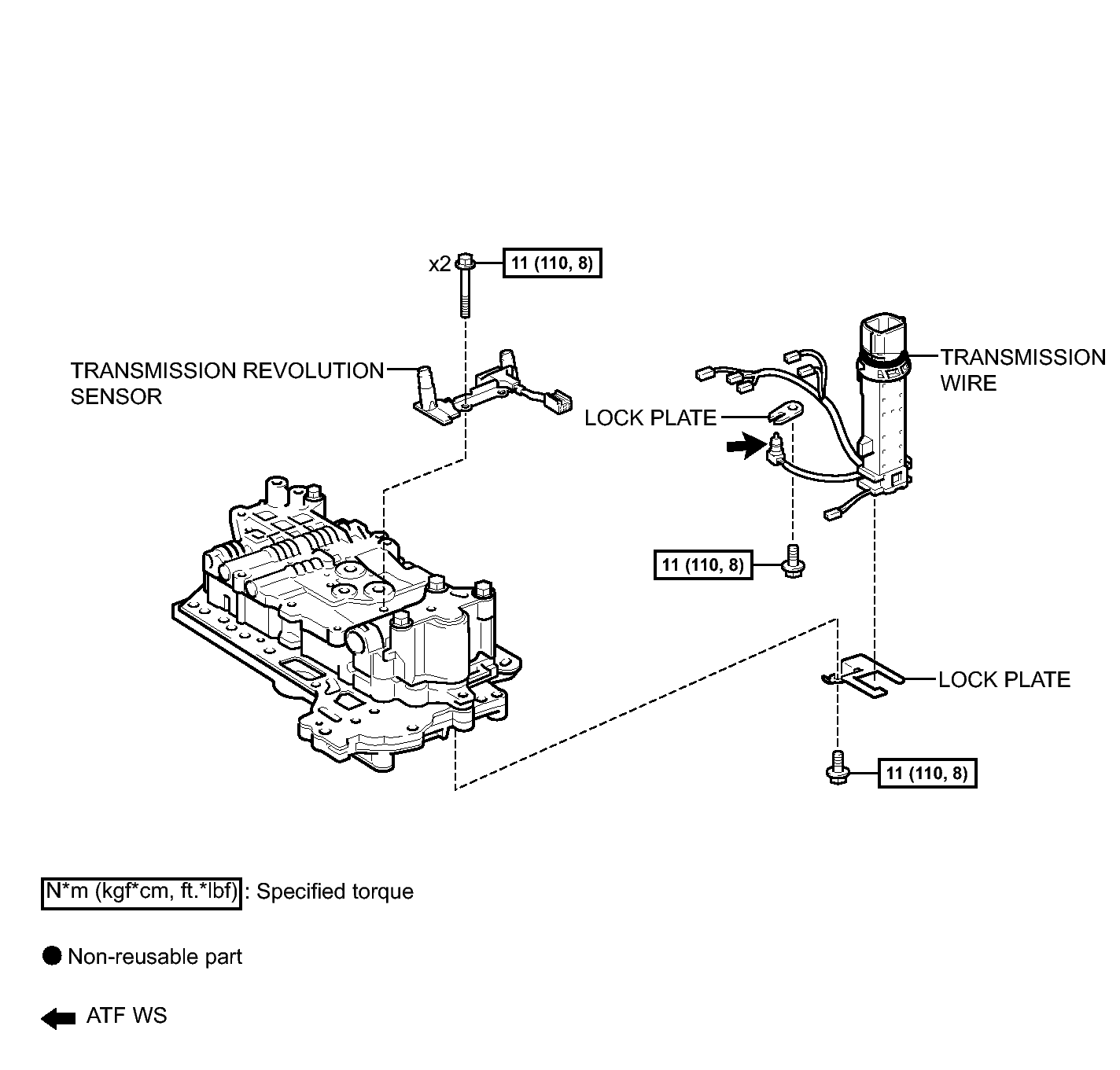

Fig 1: Valve Body Assembly Replacement Components With Torque Specifications (2 Of 3)
GTY297004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

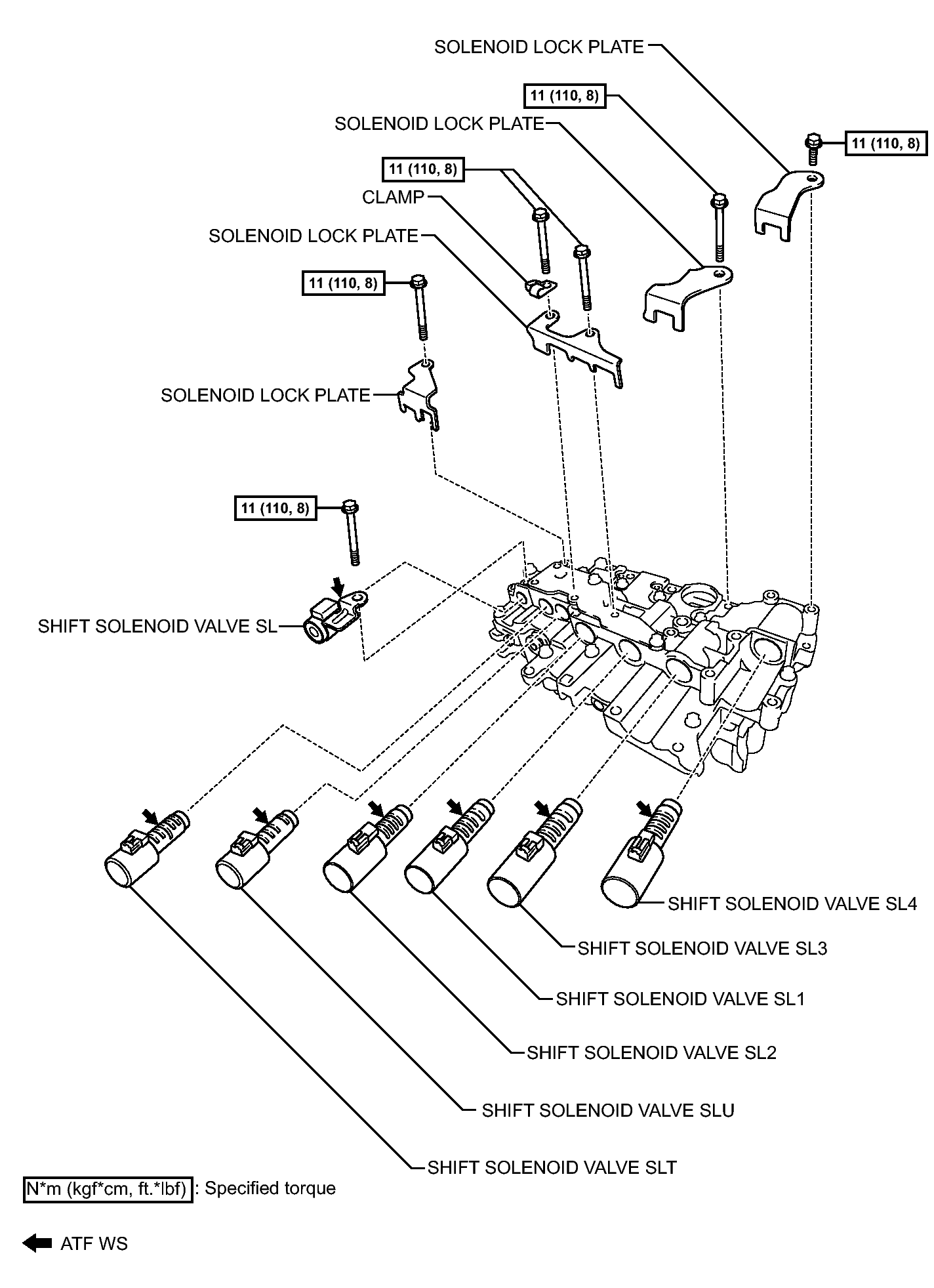

Fig 1: Valve Body Assembly Replacement Components With Torque Specifications (3 Of 3)
GTY302928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
