Differential Oil Seal: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

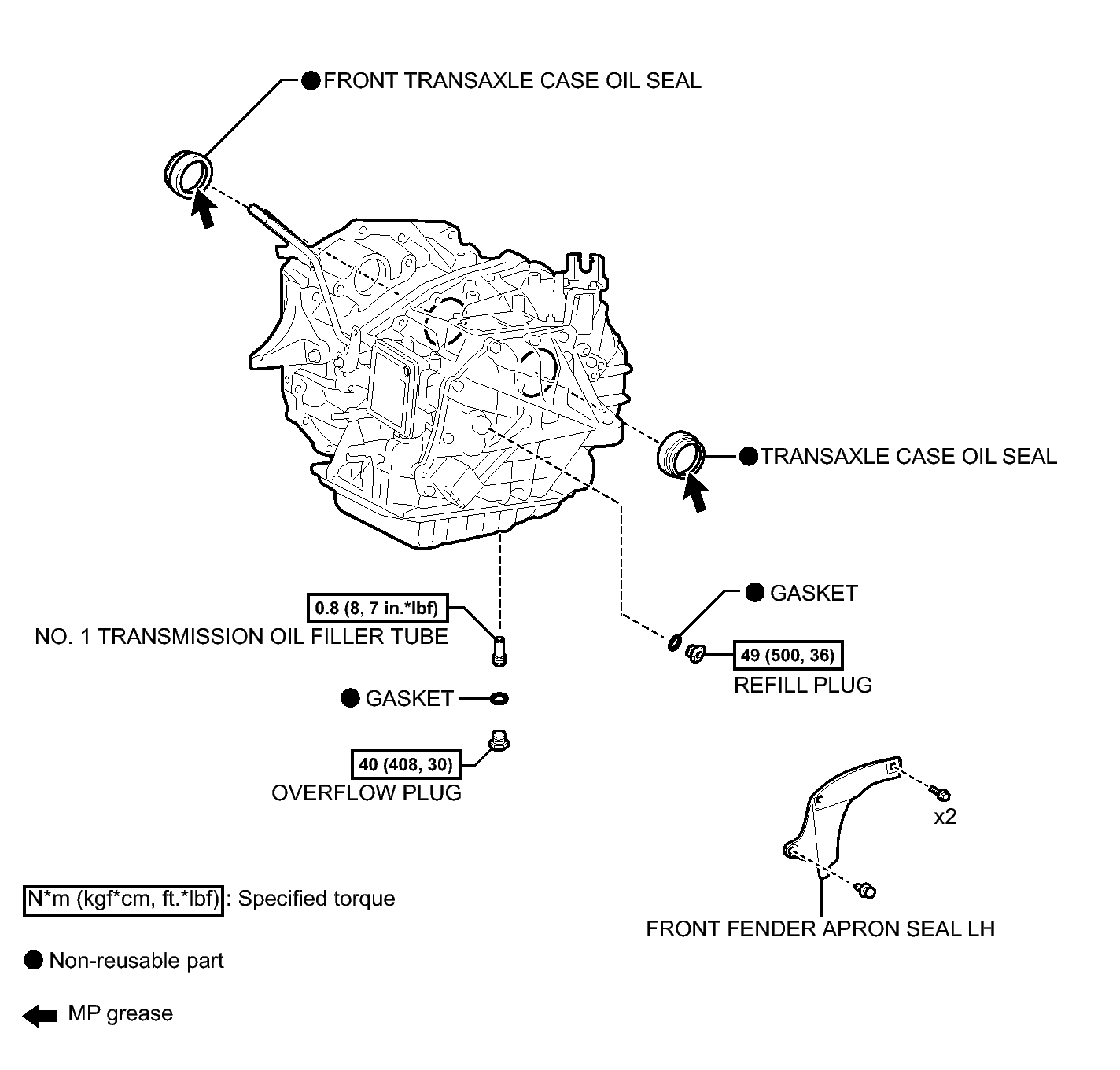

Fig 1: Differential Oil Seal Replacement Components With Torque Specifications
GTY298610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
