Park / Neutral Position Switch: Components: Illustration

WARNING: This page is about a different variant/trim than selected.
Fig 1: Park/Neutral Position Switch Replacement Components With Torque Specifications (1 Of 2)
GTY302432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

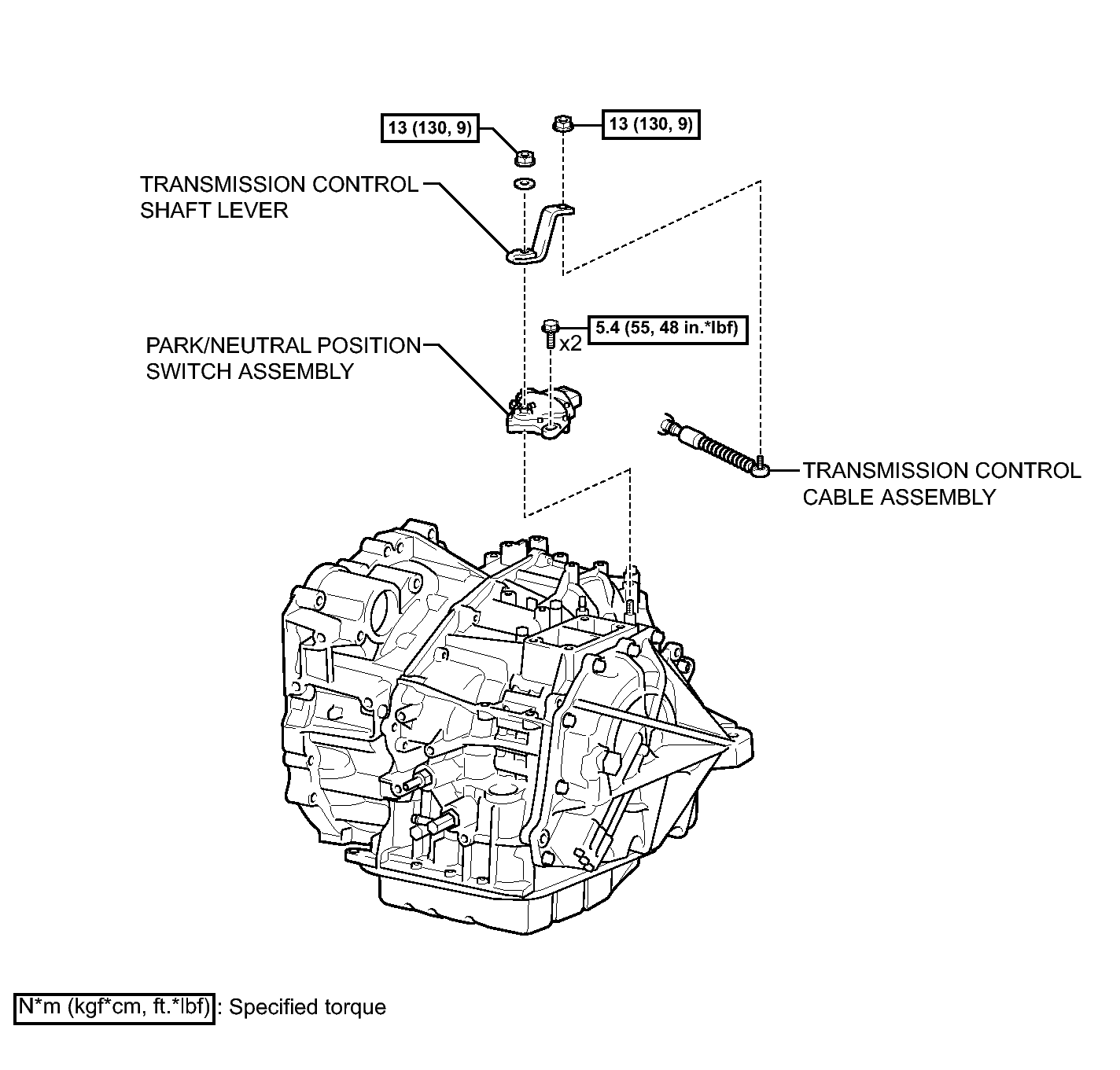

Fig 1: Park/Neutral Position Switch Replacement Components With Torque Specifications (2 Of 2)
GTY305208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
