Heated Oxygen Sensor: Components: Illustration

WARNING: This page is about a different variant/trim than selected.
Fig 1: Heated Oxygen Sensor Replacement Components (1 Of 2)
GTY301974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

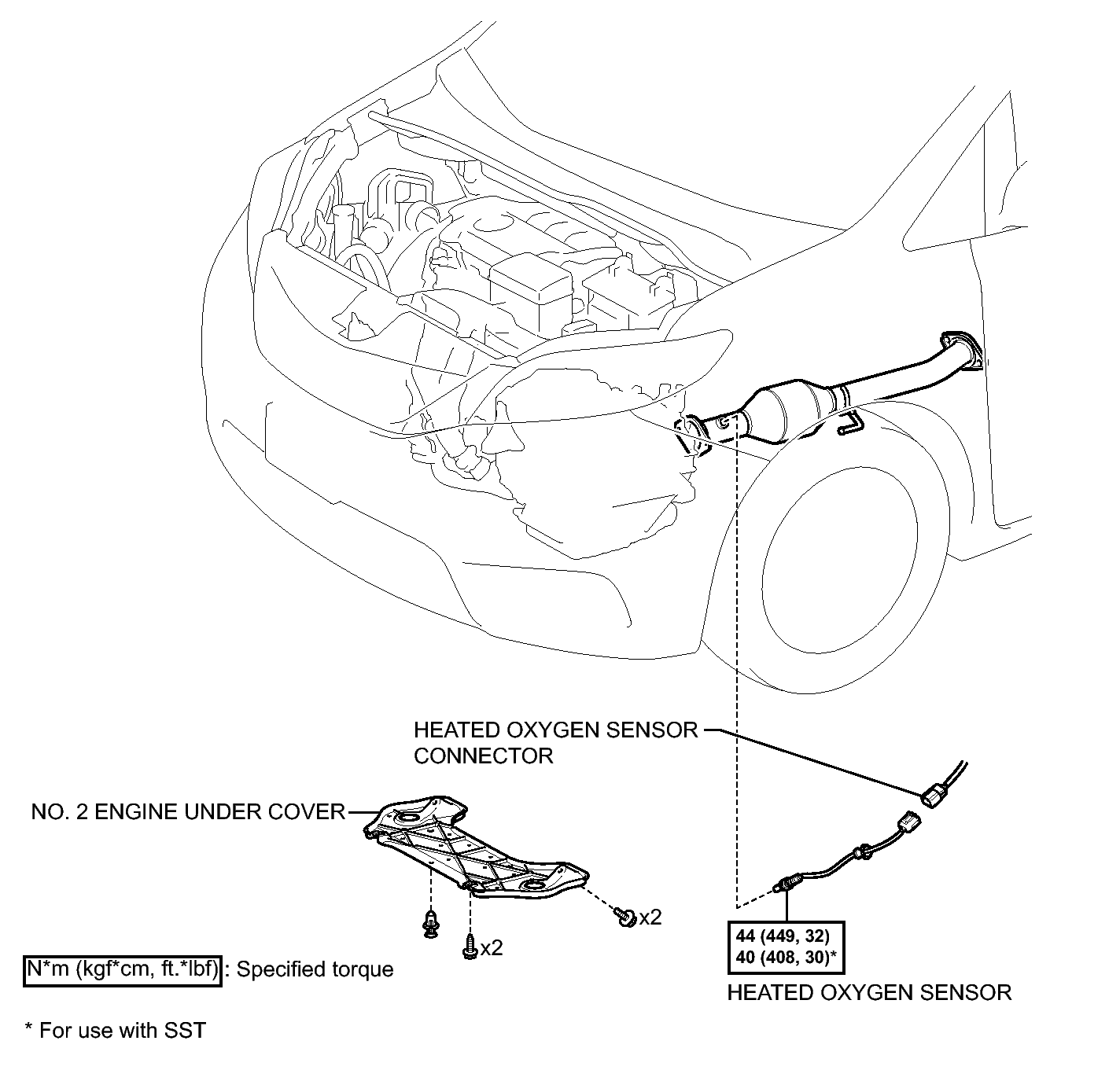

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY306802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
