Section 1 (Engine Control System (1AR-FE) (Service Information)): ECM: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

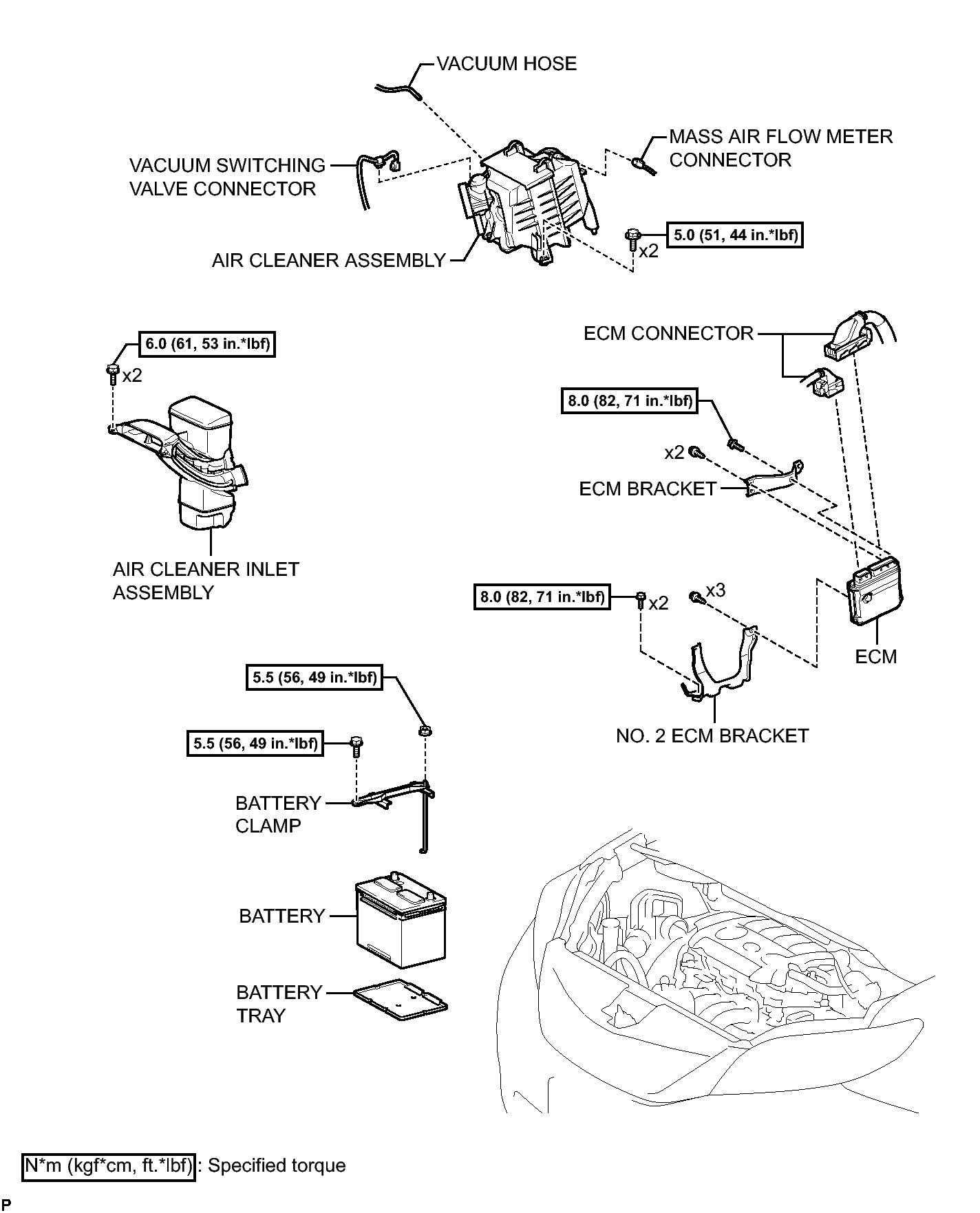

Fig 1: ECM Replacement Components With Torque Specifications
