Camshaft Oil Control Valve: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

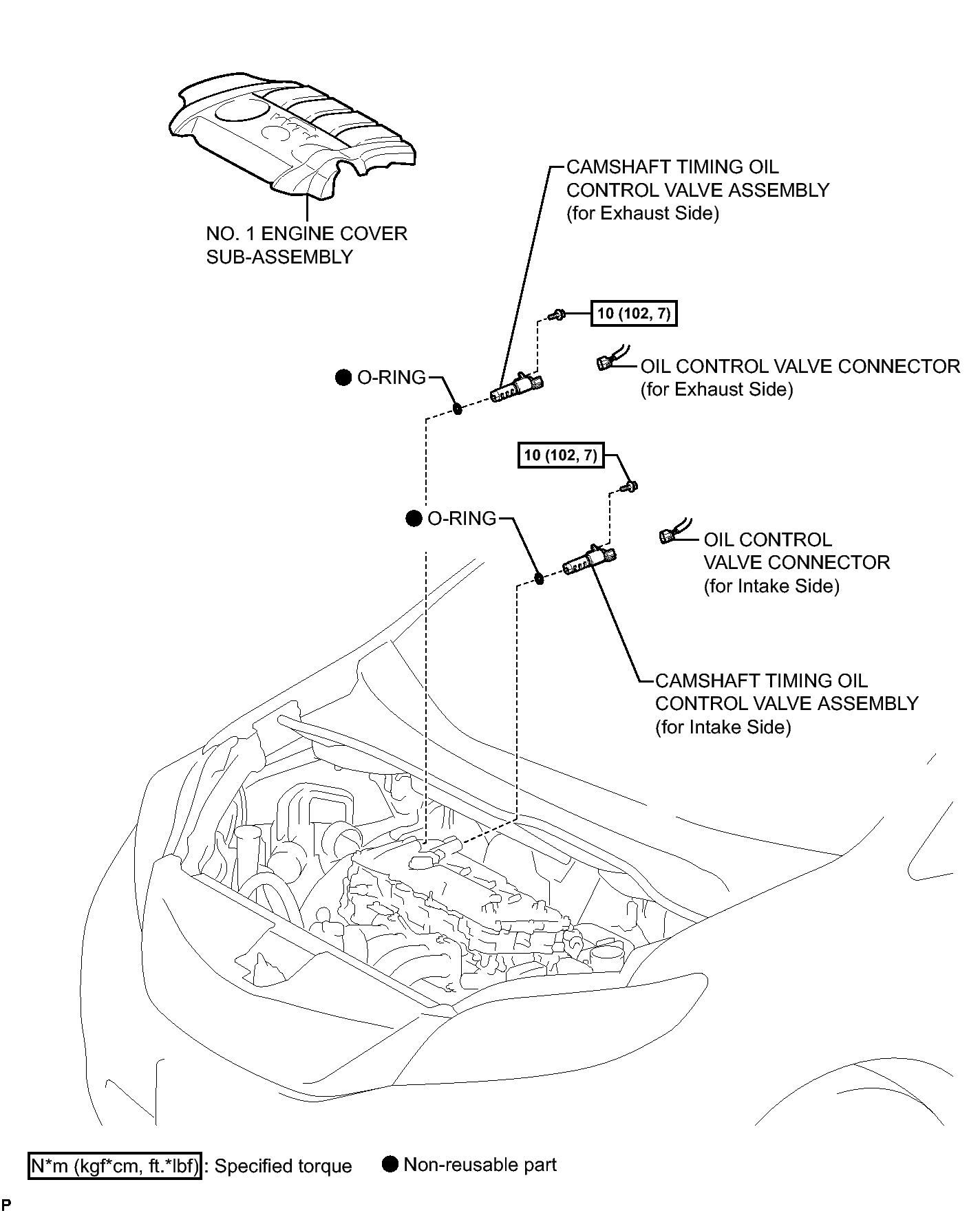

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications
GTY300091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
