Air Fuel Ratio Sensor: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL AIR FUEL RATIO SENSOR

Using SST, install the air fuel ratio sensor to the exhaust manifold.

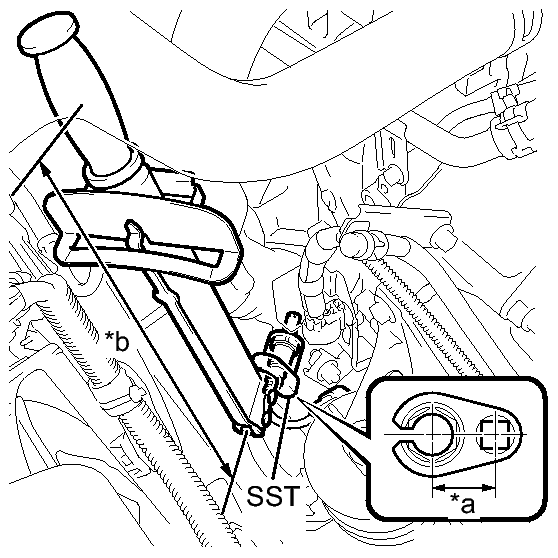

Fig 1: Installing Air Fuel Ratio Sensor At Exhaust Manifold Using SST

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	Fulcrum Length 30 mm
*b	Fulcrum Length 300 mm

without SST

Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

with SST

Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)

HINT:

The "with SST" torque value is effective when using SST with a fulcrum length of 30 mm (1.18 in.).
The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 300 mm (11.81 in.). Refer to PRECAUTION .
This torque value is effective when SST is parallel to the torque wrench.
