Engine Immobilizer, Smart Key, Starting, Steering Lock, Wireless Door Lock Control System (w/Smart Key System)

Fig 1: Engine Immobilizer, Smart Key, Starting, Steering Lock And Wireless Door Lock Control System (w/Smart Key System) Electrical Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

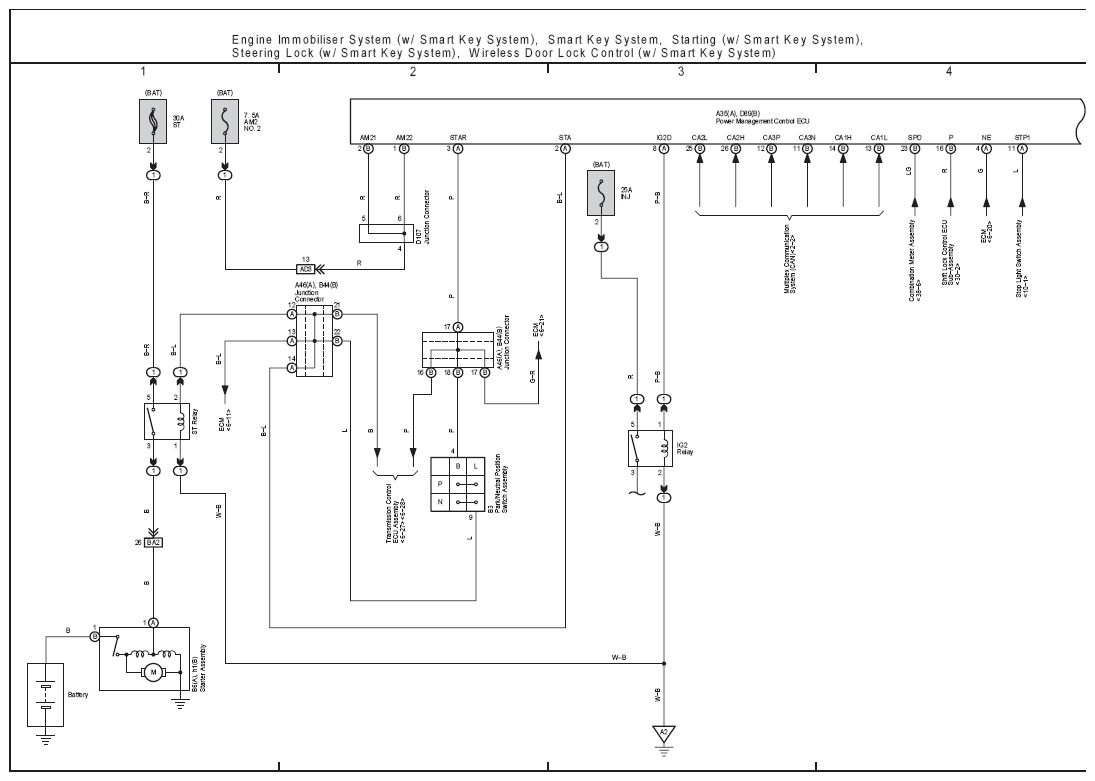

Fig 2: Engine Immobilizer, Smart Key, Starting, Steering Lock And Wireless Door Lock Control System (w/Smart Key System) Electrical Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

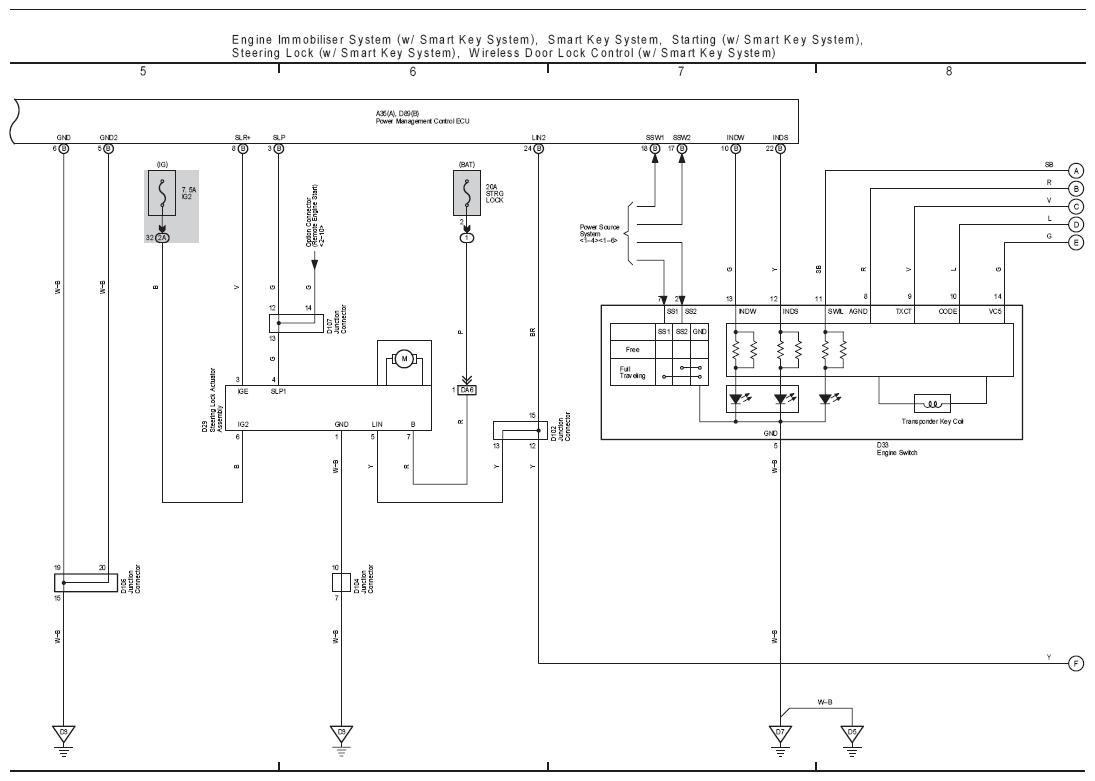

Fig 3: Engine Immobilizer, Smart Key, Starting, Steering Lock And Wireless Door Lock Control System (w/Smart Key System) Electrical Wiring Diagram (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

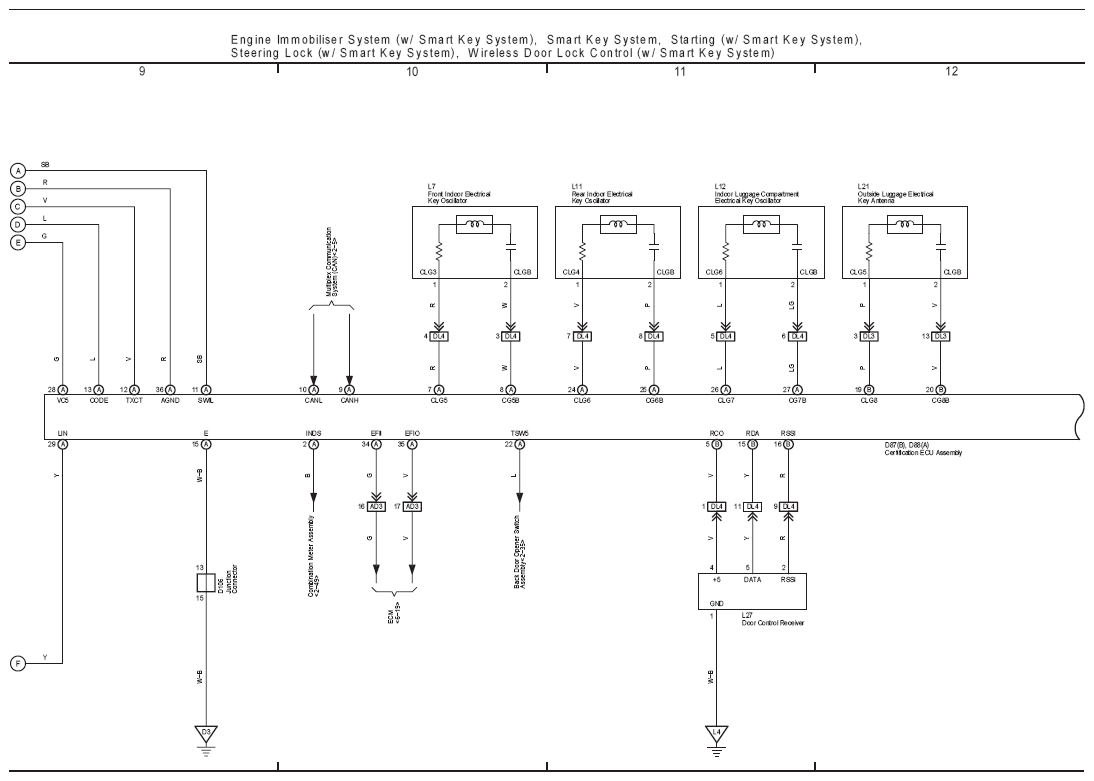

Fig 4: Engine Immobilizer, Smart Key, Starting, Steering Lock And Wireless Door Lock Control System (w/Smart Key System) Electrical Wiring Diagram (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
