Cruise Control, Dynamic Radar Cruise Control, Electronically Controlled Transmission and A/T Indicator, Engine Control, (2GR-FE)

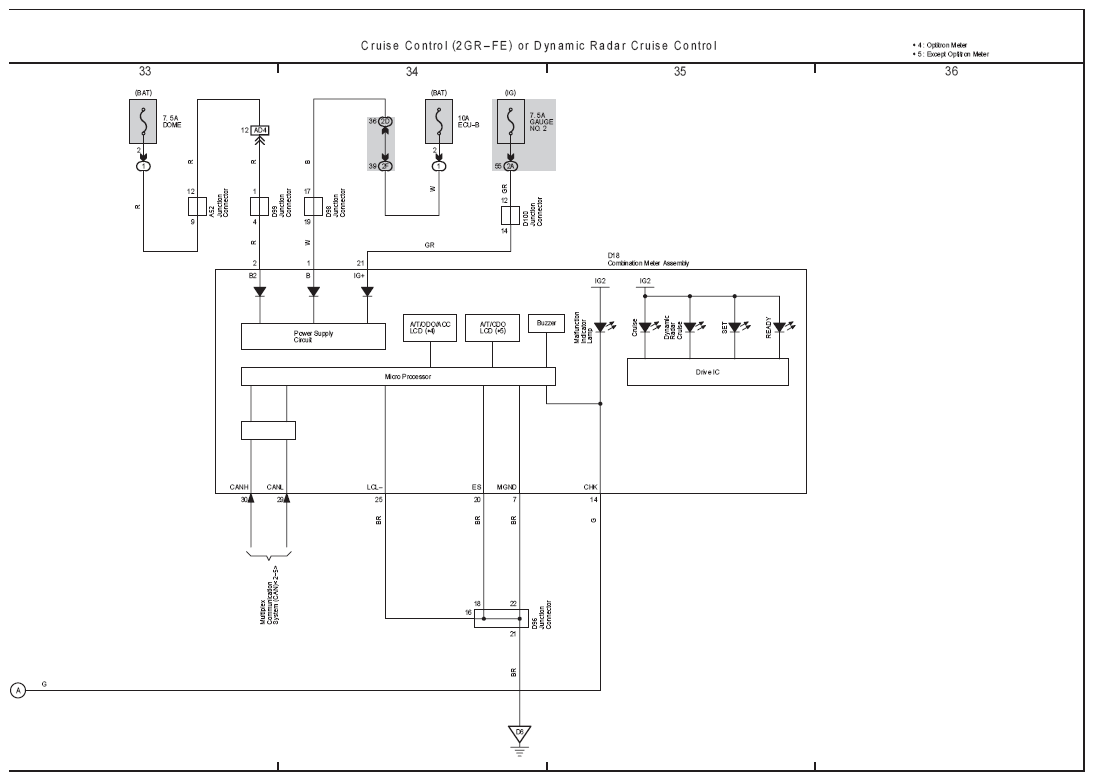

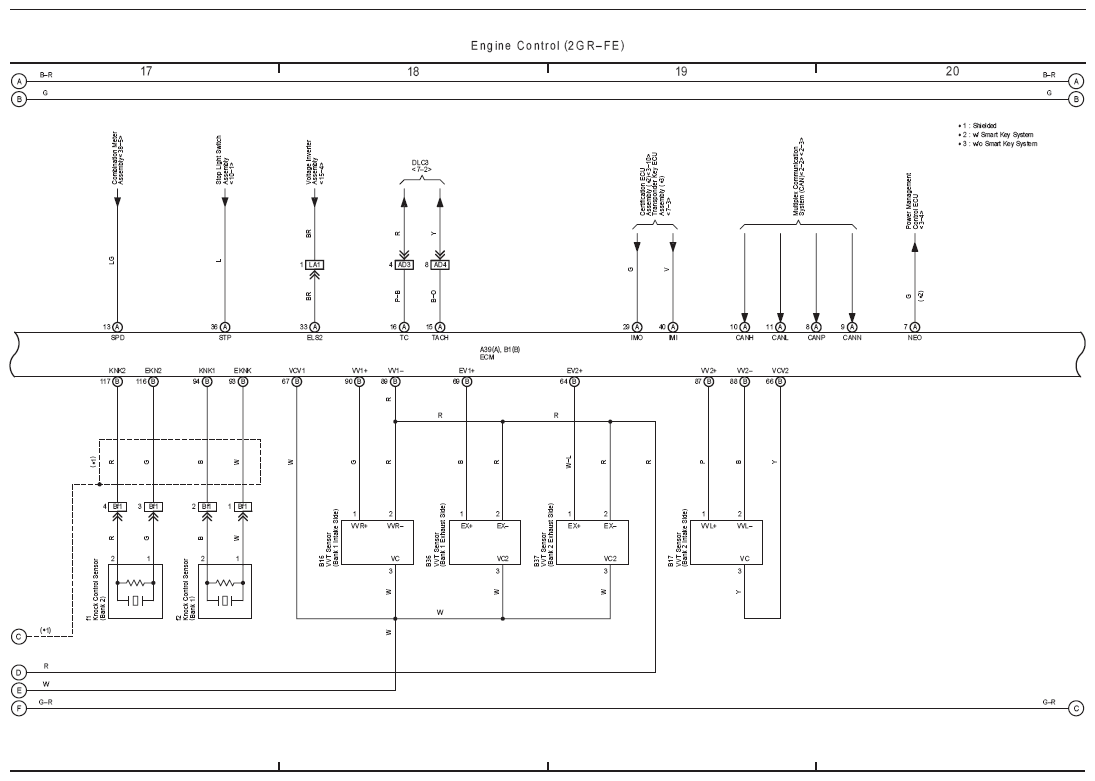

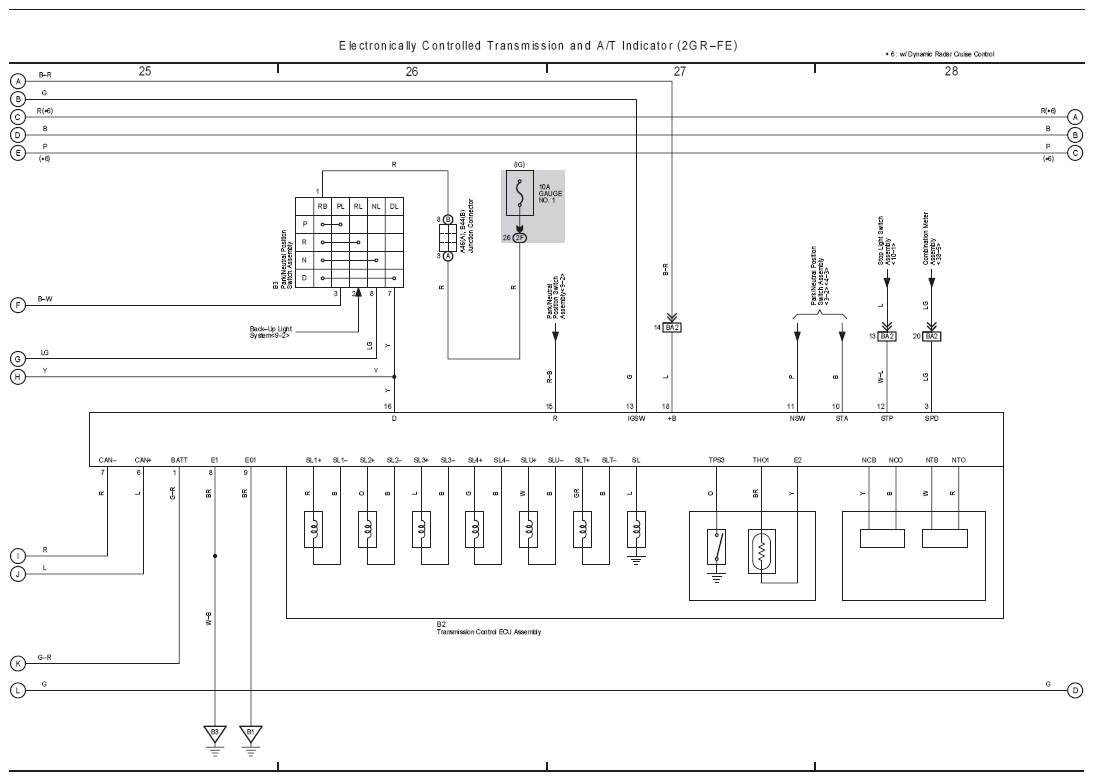

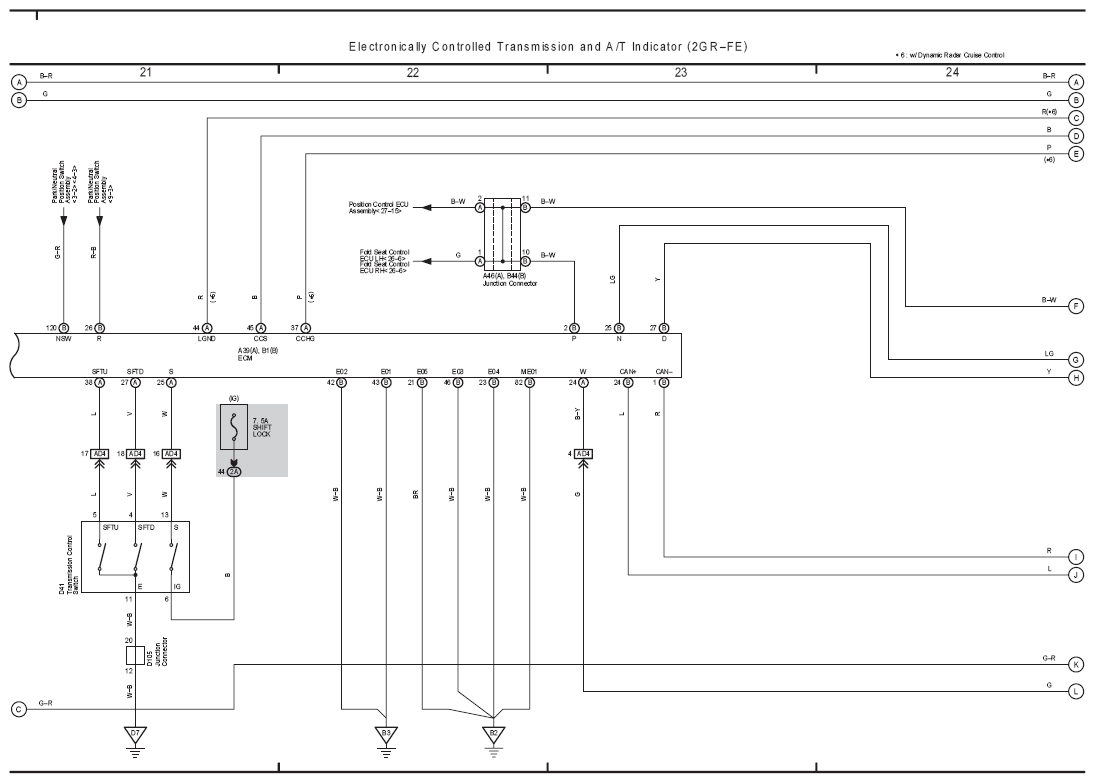

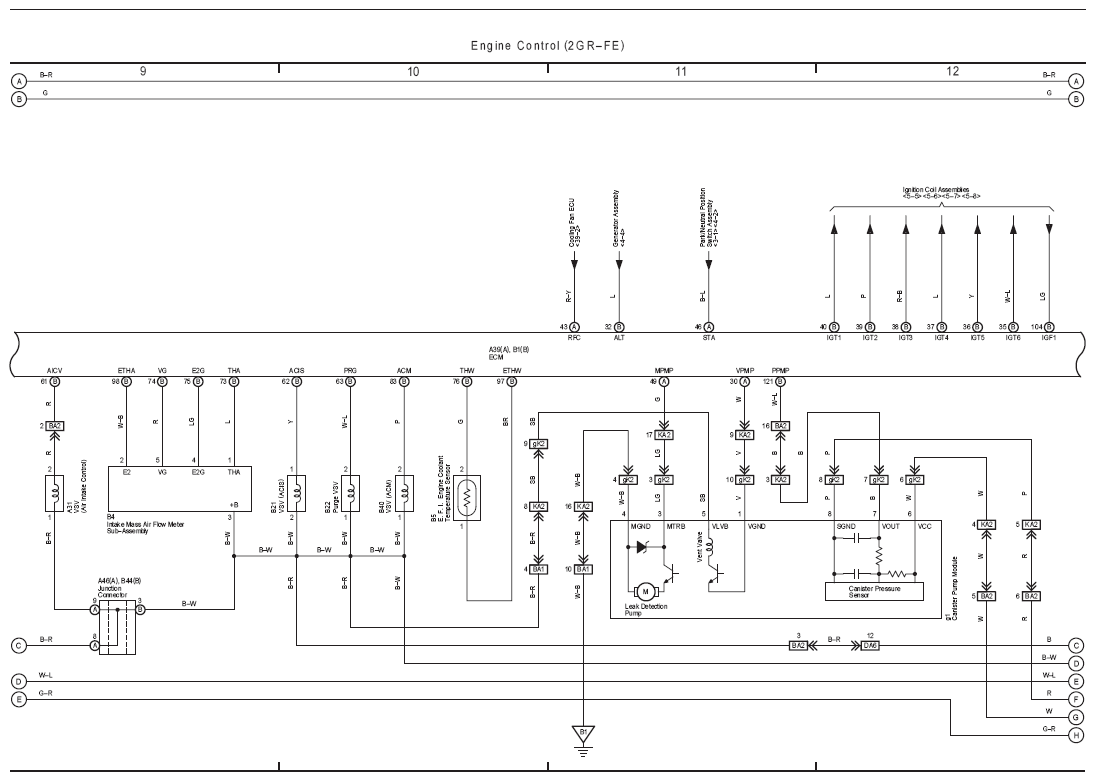

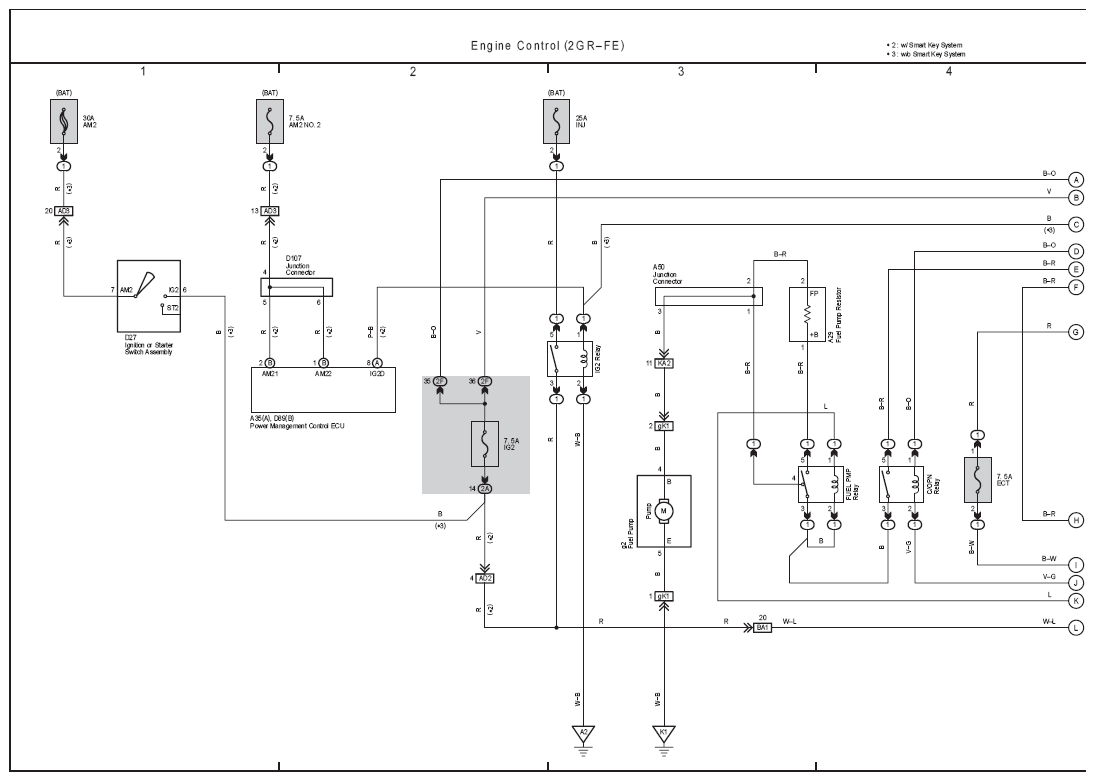

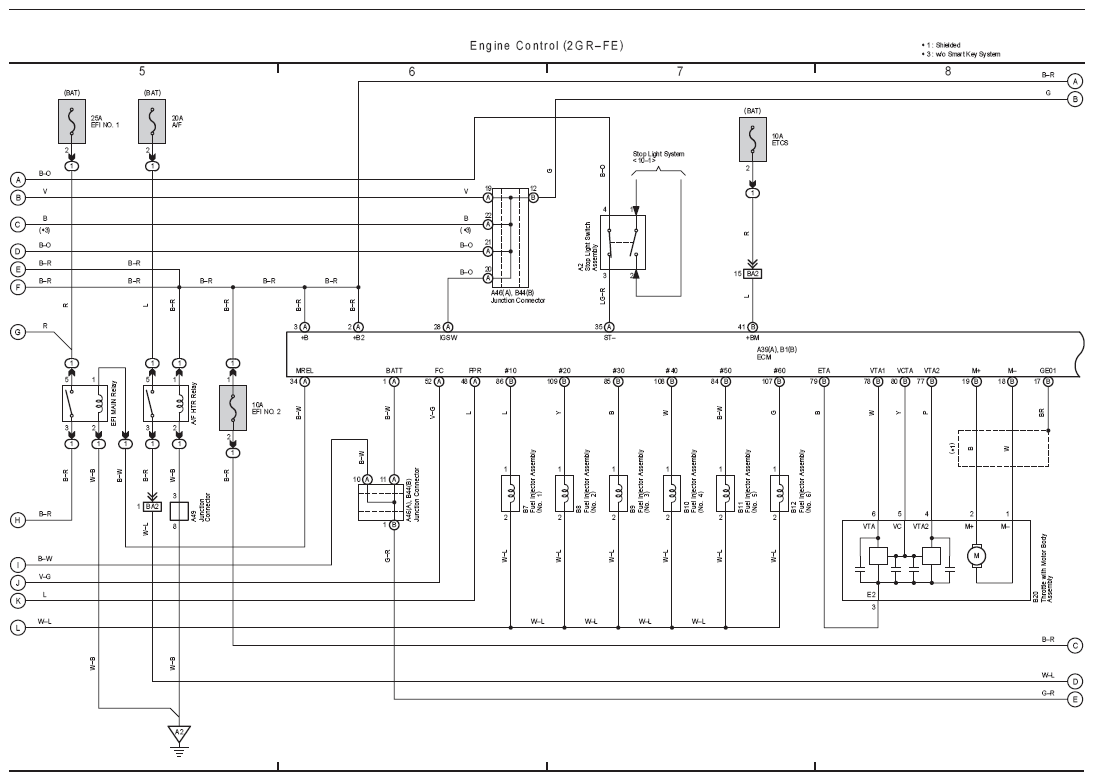

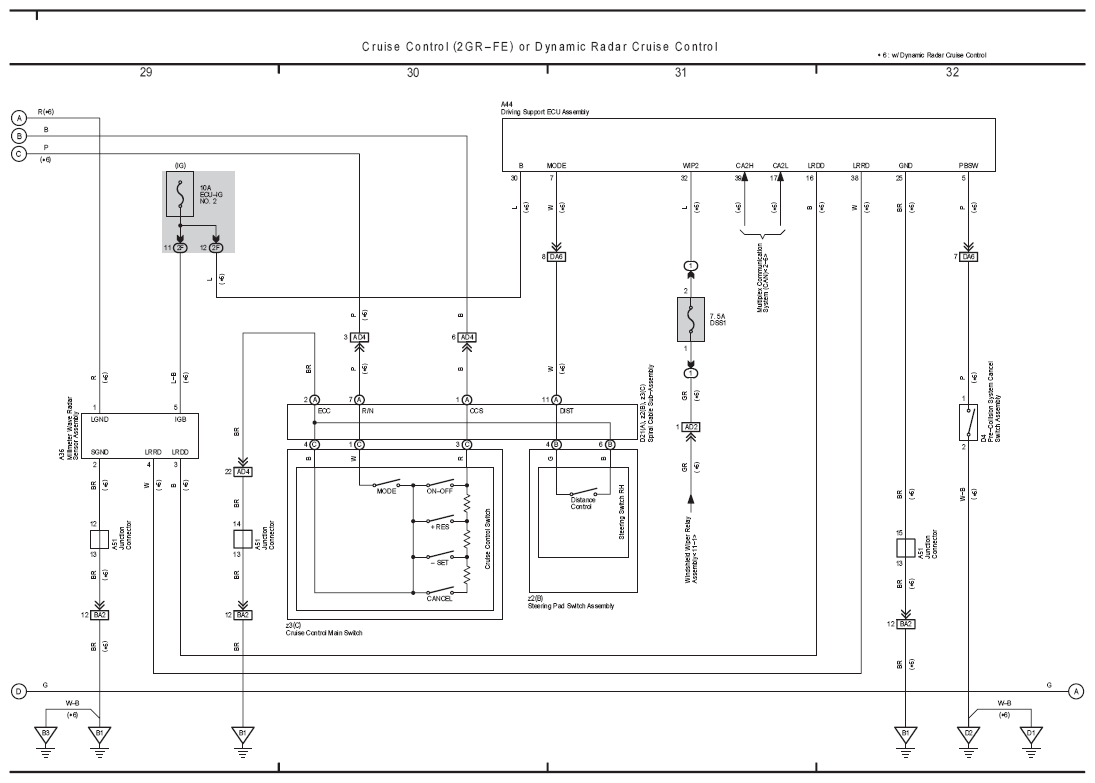

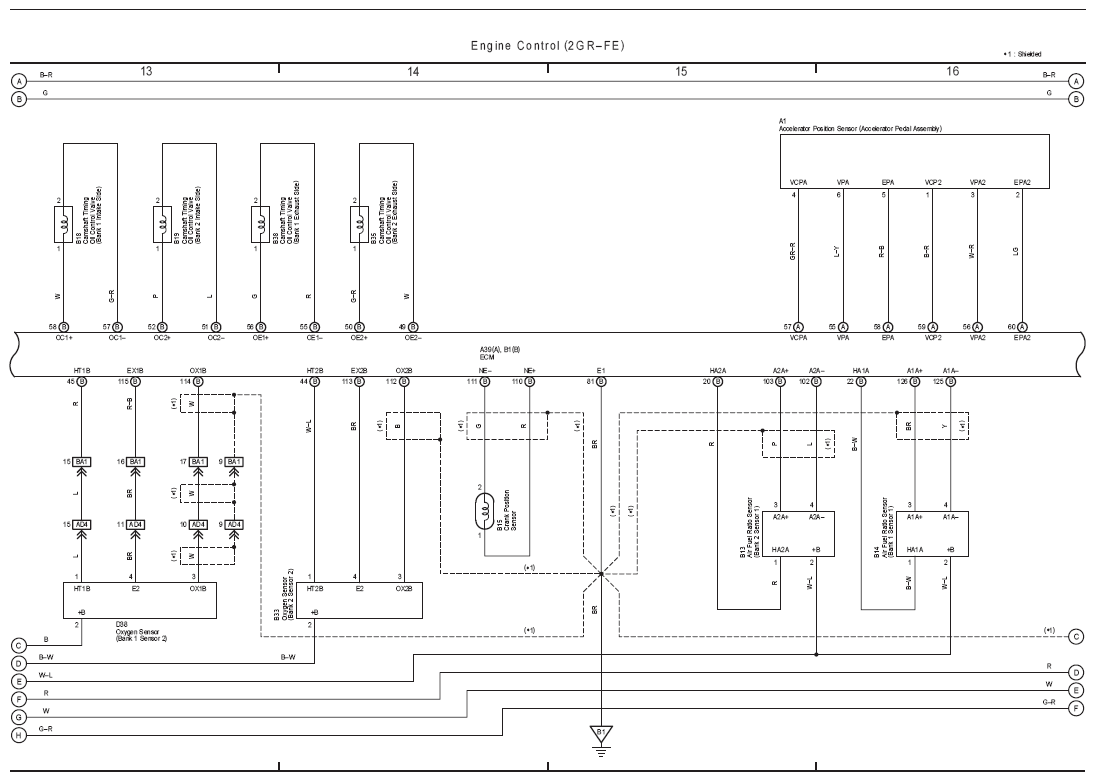

Fig 1: Cruise Control, Dynamic Radar Cruise Control, Electronically Controlled Transmission and A/T Indicator, Engine Control System Electrical Wiring Diagram (2GR-FE; 1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Cruise Control, Dynamic Radar Cruise Control, Electronically Controlled Transmission and A/T Indicator, Engine Control System Electrical Wiring Diagram (2GR-FE; 2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Cruise Control, Dynamic Radar Cruise Control, Electronically Controlled Transmission and A/T Indicator, Engine Control System Electrical Wiring Diagram (2GR-FE; 3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Cruise Control, Dynamic Radar Cruise Control, Electronically Controlled Transmission and A/T Indicator, Engine Control System Electrical Wiring Diagram (2GR-FE; 4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Cruise Control, Dynamic Radar Cruise Control, Electronically Controlled Transmission and A/T Indicator, Engine Control System Electrical Wiring Diagram (2GR-FE; 5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Cruise Control, Dynamic Radar Cruise Control, Electronically Controlled Transmission and A/T Indicator, Engine Control System Electrical Wiring Diagram (2GR-FE; 6 Of 9)

Fig 7: Cruise Control, Dynamic Radar Cruise Control, Electronically Controlled Transmission and A/T Indicator, Engine Control System Electrical Wiring Diagram (2GR-FE; 7 Of 9)

Fig 8: Cruise Control, Dynamic Radar Cruise Control, Electronically Controlled Transmission and A/T Indicator, Engine Control System Electrical Wiring Diagram (2GR-FE; 8 Of 9)

Fig 9: Cruise Control, Dynamic Radar Cruise Control, Electronically Controlled Transmission and A/T Indicator, Engine Control System Electrical Wiring Diagram (2GR-FE; 9 Of 9)
