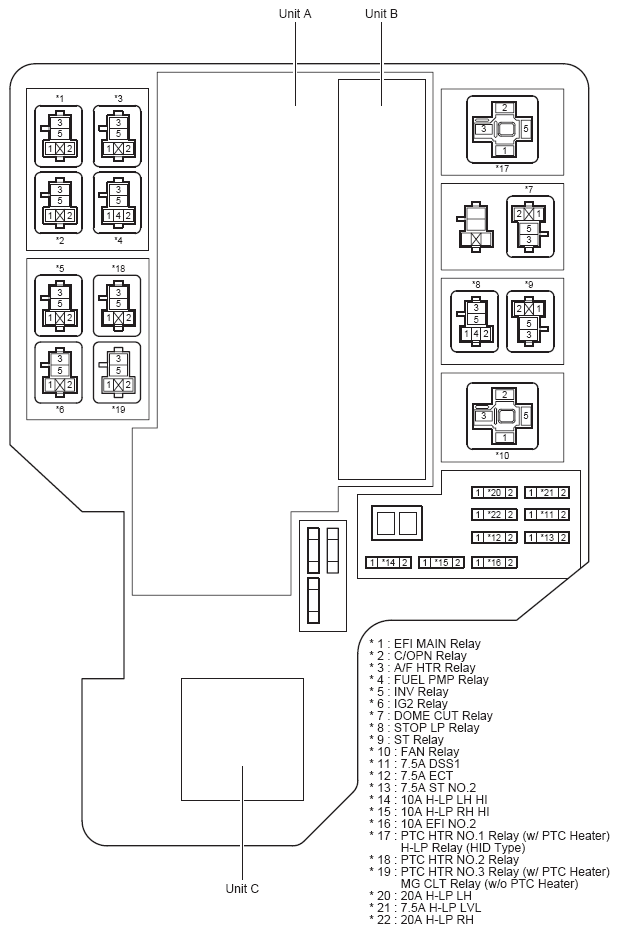

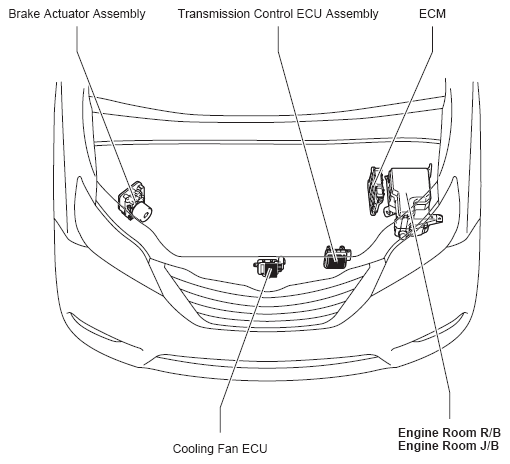

Engine Room Relay Block And Engine Room Junction Block - Front Fender Apron LH
Front Fender Apron LH (See Figure)
Engine Room R/B And J/B Relay Identification
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| *1 | EFI Main Relay |
| *2 | C/Open Relay |
| *3 | A/F HTR Relay |
| *4 | Fuel PMP Relay |
| *5 | INV Relay |
| *6 | IG2 Relay |
| *7 | Dome CUT Relay |
| *8 | Stop LP Relay |
| *9 | ST Relay |
| *10 | Fan Relay |
| *17 | PTC HTR No. 1 Relay (w/ PTC Heater) H-LP Relay (HID Type) |
| *18 | PTC HTR No. 2 Relay |
| *19 | PTC HTR No. 3 Relay (w/ PTC Heater) MG CLT Relay (w/o PTC Heater) |
Engine Room R/B And J/B Fuse Identification Legend
| Fuse | System | |
|---|---|---|
| 5A | SMART | Engine Immobilizer System (w/Smart Key System), Smart Key System, Starting (w/Smart Key System), Steering Lock (w/Smart Key System) and Wireless Door Lock Control (w/Smart Key System) |
| 7.5A | ALT-S | Charging |
| 7.5A | AM2 NO. 2 | Combination Meter, Multi Display and Parking Assist (Rear View Monitor w/o Navigation System) |
| Cruise Control (2GR-FE), Electronically Controlled Transmission and A/T Indicator (2GR-FE) and Engine Control (2GR-FE) | ||
| Dynamic Radar Cruise Control | ||
| Engine Immobilizer System (w/Smart Key System), Smart Key System, Starting (w/Smart Key System), Steering Lock (w/Smart Key System) and Wireless Door Lock Control (w/Smart Key System) | ||
| Ignition (2GR-FE) | ||
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| 7.5A | DOME | Air Conditioning |
| AWD | ||
| Back Door Opener | ||
| Charging | ||
| Clock | ||
| Combination Meter, Multi Display and Parking Assist (Rear View Monitor w/o Navigation System) | ||
| Cooling Fan | ||
| Cruise Control (1AR-FE), Electronically Controlled Transmission and A/T Indicator (1AR-FE) and Engine Control (1AR-FE) | ||
| Cruise Control (2GR-FE), Electronically Controlled Transmission and A/T Indicator (2GR-FE) and Engine Control (2GR-FE) | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Engine Immobilizer System (w/Smart Key System), Smart Key System, Starting (w/Smart Key System), Steering Lock (w/Smart Key System) and Wireless Door Lock Control (w/Smart Key System) | ||
| Engine Immobilizer System (w/o Smart Key System) | ||
| EPS | ||
| Front Fog Light | ||
| Front Wiper and Washer (w/Auto Wiper System) | ||
| Headlight | ||
| Hill-Start Assist Control, Vehicle Dynamics Integrated Management or ABS, TRAC and VSC | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Key Reminder (w/o Smart Key System) | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Rear No. 2 Seat with Stowing Function | ||
| Pre-Collision System | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| SRS | ||
| Theft Deterrent | ||
| Tire Pressure Warning System | ||
| 7.5A | DSS1 | Dynamic Radar Cruise Control |
| Pre-Collision System | ||
| 7.5A | ECT | Cruise Control (1AR-FE), Electronically Controlled Transmission and A/T Indicator (1AR-FE) and Engine Control (1AR-FE) |
| Cruise Control (2GR-FE), Electronically Controlled Transmission and A/T Indicator (2GR-FE) and Engine Control (2GR-FE) | ||
| Dynamic Radar Cruise Control | ||
| 7.5A | ECU-B NO. 2 | Air Conditioning |
| Door Lock Control | ||
| Power Window | ||
| 7.5A | H-LP LVL | Headlight Beam Level Control |
| 7.5A | MG CLT | Air Conditioning |
| 7.5A | ST NO. 2 | Cruise Control (1AR-FE), Electronically Controlled Transmission and A/T Indicator (1AR-FE) and Engine Control (1AR-FE) |
| Cruise Control (2GR-FE), Electronically Controlled Transmission and A/T Indicator (2GR-FE) and Engine Control (2GR-FE) | ||
| Starting (w/o Smart Key System) | ||
| 10A | ECU-B | Air Conditioning |
| Auto Access Seat | ||
| Automatic Glare-Resistant EC Mirror with Compass and Garage Door Opener | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| AWD | ||
| Back Door Opener | ||
| Charging | ||
| Combination Meter, Multi Display and Parking Assist (Rear View Monitor w/o Navigation System) | ||
| Cooling Fan | ||
| Cruise Control (1AR-FE), Electronically Controlled Transmission and A/T Indicator (1AR-FE) and Engine Control (1AR-FE) | ||
| Cruise Control (2GR-FE), Electronically Controlled Transmission and A/T Indicator (2GR-FE) and Engine Control (2GR-FE) | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Engine Immobilizer System (w/Smart Key System), Smart Key System, Starting (w/Smart Key System), Steering Lock (w/Smart Key System) and Wireless Door Lock Control (w/Smart Key System) | ||
| Engine Immobilizer System (w/o Smart Key System) | ||
| EPS | ||
| Front Fog Light | ||
| Front Wiper and Washer (w/Auto Wiper System) | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Hill-Start Assist Control, Vehicle Dynamics Integrated Management or ABS, TRAC and VSC | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Key Reminder (w/o Smart Key System) | ||
| Parking Assist (Back Guide Monitor) | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Back Door | ||
| Power Rear No. 2 Seat with Stowing Function | ||
| Power Rear Quarter Window | ||
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| Power Slide Door | ||
| Power Window | ||
| Pre-Collision System | ||
| Remote Control Mirror (w/Seat Position Memory) | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| SRS | ||
| Theft Deterrent | ||
| Tire Pressure Warning System | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 10A | EFI NO. 2 | Cruise Control (1AR-FE), Electronically Controlled Transmission and A/T Indicator (1AR-FE) and Engine Control (1AR-FE) |
| Cruise Control (2GR-FE), Electronically Controlled Transmission and A/T Indicator (2GR-FE) and Engine Control (2GR-FE) | ||
| 10A | ETCS | Cruise Control (1AR-FE), Electronically Controlled Transmission and A/T Indicator (1AR-FE) and Engine Control (1AR-FE) |
| Cruise Control (2GR-FE), Electronically Controlled Transmission and A/T Indicator (2GR-FE) and Engine Control (2GR-FE) | ||
| Dynamic Radar Cruise Control | ||
| 10A | H-LP LH HI | Headlight |
| Theft Deterrent | ||
| 10A | H-LP RH HI | Headlight |
| Theft Deterrent | ||
| 10A | MIRROR | Interior Light |
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| Remote Control Mirror (w/Seat Position Memory) | ||
| 15A | HAZ | Turn Signal and Hazard Warning Light |
| 15A | RAD NO. 1 | Audio System (w/Navigation System), Navigation System and Parking Assist (Rear View Monitor w/Navigation System) |
| Audio System (w/o Navigation System) | ||
| Safety Connect | ||
| 15A | RSE | Audio System (w/Navigation System), Navigation System and Parking Assist (Rear View Monitor w/Navigation System) |
| Audio System (w/o Navigation System) | ||
| 20A | A/F | Cruise Control (1AR-FE), Electronically Controlled Transmission and A/T Indicator (1AR-FE) and Engine Control (1AR-FE) |
| Cruise Control (2GR-FE), Electronically Controlled Transmission and A/T Indicator (2GR-FE) and Engine Control (2GR-FE) | ||
| 20A | H-LP LH | Headlight |
| Headlight Beam Level Control | ||
| Theft Deterrent | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 20A | H-LP RH | Headlight |
| Theft Deterrent | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 20A | INV | Power Outlet (120V) |
| 20A | STRG LOCK | Engine Immobilizer System (w/Smart Key System), Smart Key System, Starting (w/Smart Key System), Steering Lock (w/Smart Key System) and Wireless Door Lock Control (w/Smart Key System) |
| 25A | EFI NO. 1 | Cruise Control (1AR-FE), Electronically Controlled Transmission and A/T Indicator (1AR-FE) and Engine Control (1AR-FE) |
| Cruise Control (2GR-FE), Electronically Controlled Transmission and A/T Indicator (2GR-FE) and Engine Control (2GR-FE) | ||
| Dynamic Radar Cruise Control | ||
| 25A | INJ | Combination Meter, Multi Display and Parking Assist (Rear View Monitor w/o Navigation System) |
| Cruise Control (1AR-FE), Electronically Controlled Transmission and A/T Indicator (1AR-FE) and Engine Control (1AR-FE) | ||
| Cruise Control (2GR-FE), Electronically Controlled Transmission and A/T Indicator (2GR-FE) and Engine Control (2GR-FE) | ||
| Dynamic Radar Cruise Control | ||
| Engine Immobilizer System (w/Smart Key System), Smart Key System, Starting (w/Smart Key System), Steering Lock (w/Smart Key System) and Wireless Door Lock Control (w/Smart Key System) | ||
| Ignition (1AR-FE) | ||
| Ignition (2GR-FE) | ||
| 30A | A/A SEAT | Auto Access Seat |
| 30A | AM2 | Cruise Control (1AR-FE), Electronically Controlled Transmission and A/T Indicator (1AR-FE) and Engine Control (1AR-FE) |
| Cruise Control (2GR-FE), Electronically Controlled Transmission and A/T Indicator (2GR-FE) and Engine Control (2GR-FE) | ||
| Dynamic Radar Cruise Control | ||
| Starting (w/o Smart Key System) | ||
| 30A | AMP | Audio System (w/Navigation System), Navigation System and Parking Assist (Rear View Monitor w/Navigation System) |
| Audio System (w/o Navigation System) | ||
| 30A | DRL | Headlight |
| Theft Deterrent | ||
| 30A | FOLD SEAT | Power Rear No. 2 Seat with Stowing Function |
| 30A | PBD | Power Back Door |
| 30A | PSB | Pre-Collision System |
| 30A | PTC HTR NO. 2 | Air Conditioning |
| 30A | PTC HTR NO. 3 | Air Conditioning |
| 30A | ST | Engine Immobilizer System (w/Smart Key System), Smart Key System, Starting (w/Smart Key System), Steering Lock (w/Smart Key System) and Wireless Door Lock Control (w/Smart Key System) |
| Starting (w/o Smart Key System) | ||
| 30A | VSC NO. 2 | Hill-Start Assist Control, Vehicle Dynamics Integrated Management or ABS, TRAC and VSC |
| 40A | A/C RR | Air Conditioning |
| 40A | H-LP MAIN | Automatic Light Control and Light Auto Turn Off System |
| Headlight | ||
| Headlight Beam Level Control | ||
| Theft Deterrent | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 40A | P/I | Automatic Light Control and Light Auto Turn Off System |
| Engine Immobilizer System (w/Smart Key System), Smart Key System, Starting (w/Smart Key System), Steering Lock (w/Smart Key System) and Wireless Door Lock Control (w/Smart Key System) | ||
| Front Fog Light | ||
| Front Window Deicer | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Horn | ||
| Illumination and Taillight | ||
| Mirror Heater and Rear Window Defogger | ||
| Theft Deterrent | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 50A | HTR | Air Conditioning |
| 50A | PTC HTR NO. 1 | Air Conditioning |
| 50A | VSC NO. 1 | Hill-Start Assist Control, Vehicle Dynamics Integrated Management or ABS, TRAC and VSC |
| 60A | EPS | EPS |
| 60A | FAN | Cooling Fan |
| 140A | ALT | Automatic Light Control and Light Auto Turn Off System |
| Charging | ||
| Engine Immobilizer System (w/Smart Key System), Smart Key System, Starting (w/Smart Key System), Steering Lock (w/Smart Key System) and Wireless Door Lock Control (w/Smart Key System) | ||
| Front Fog Light | ||
| Front Window Deicer | ||
| Front Wiper and Washer (w/Auto Wiper System) | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Illumination and Taillight | ||
| Mirror Heater and Rear Window Defogger | ||
| Power Rear Quarter Window | ||
| Sliding Roof | ||
| Theft Deterrent | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||

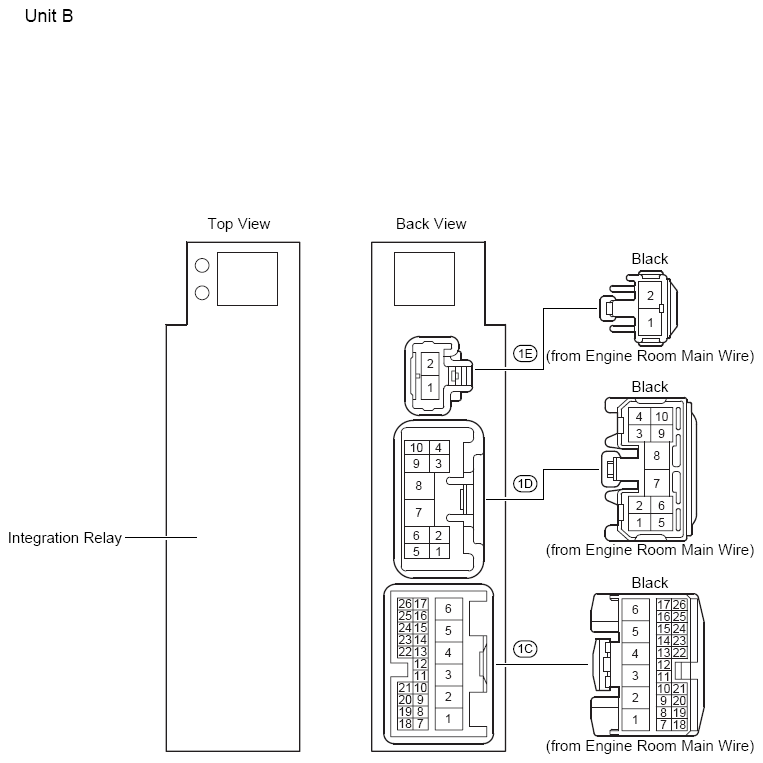

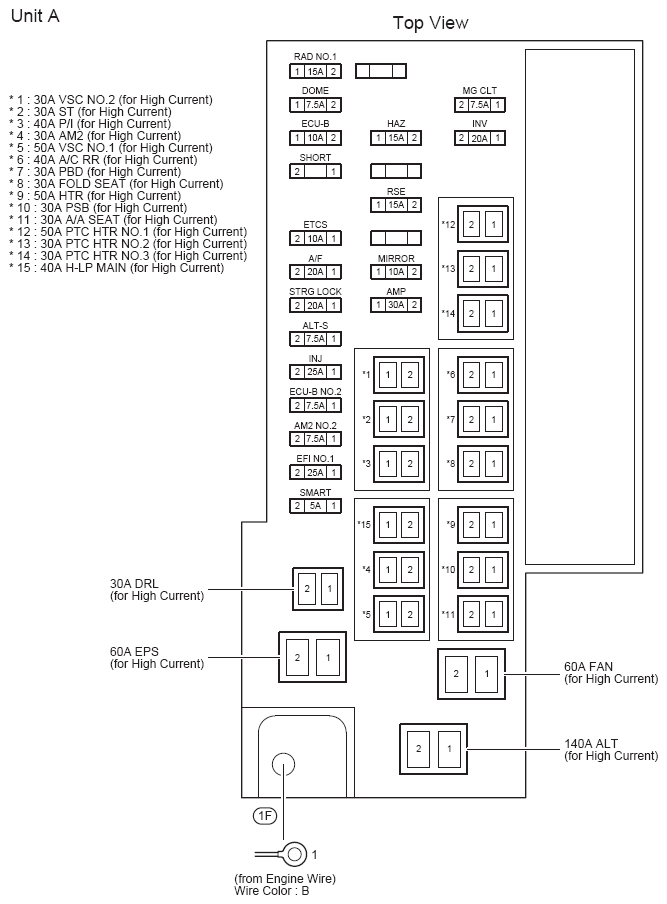

Engine Room R/B And J/B Fuse Identification Legend (Unit A)
| For fuse identification see Engine Room R/B And J/B Fuse Identification Legend . |
Engine Room R/B And J/B (Unit C) Relay Identification
| RELAY DESCRIPTION |
|---|
| DRL Relay |
| DIM Relay |
