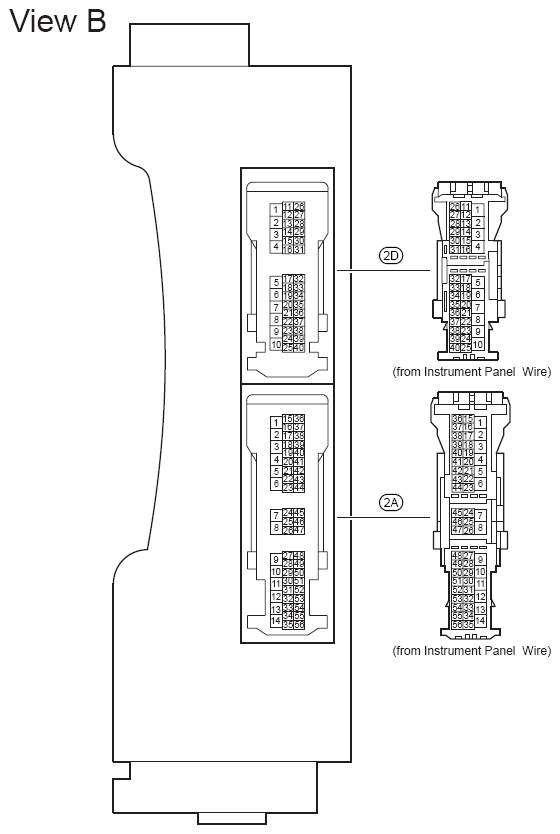

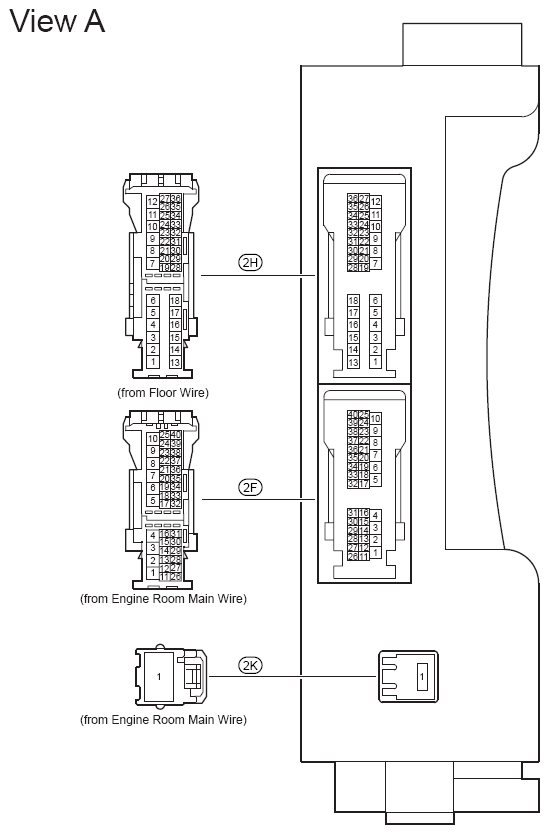

Instrument Panel Junction Block - Cowl Side Panel LH

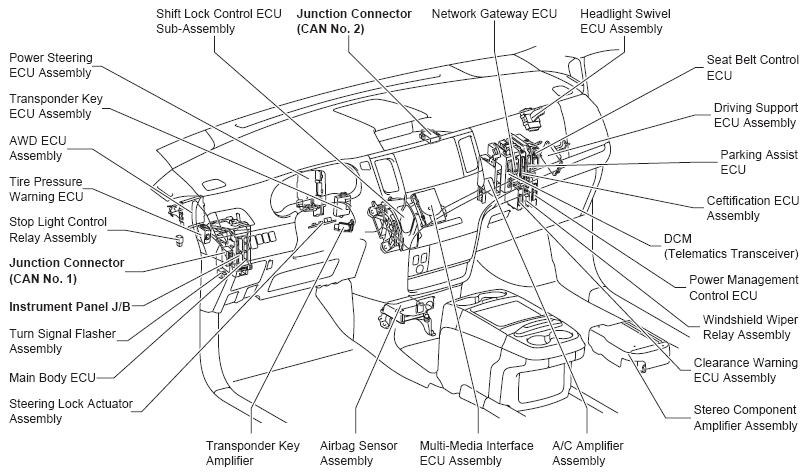

Cowl Side Panel LH (See Figure)
Instrument Panel J/B Fuse Identification legend
| Fuse | System | |
|---|---|---|
| 7.5A | 4WD | AWD |
| 7.5A | GAUGE NO. 2 | Air Conditioning |
| AWD | ||
| Back Door Opener | ||
| Charging | ||
| Combination Meter, Multi Display and Parking Assist (Rear View Monitor w/o Navigation System) | ||
| Cooling Fan | ||
| Cruise Control (1AR-FE), Electronically Controlled Transmission and A/T Indicator (1AR-FE) and Engine Control (1AR-FE) | ||
| Cruise Control (2GR-FE), Electronically Controlled Transmission and A/T Indicator (2GR-FE) and Engine Control (2GR-FE) | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Engine Immobilizer System (w/Smart Key System), Smart Key System, Starting (w/Smart Key System), Steering Lock (w/Smart Key System) and Wireless Door Lock Control (w/Smart Key System) | ||
| Engine Immobilizer System (w/o Smart Key System) | ||
| EPS | ||
| Front Fog Light | ||
| Front Wiper and Washer (w/Auto Wiper System) | ||
| Headlight | ||
| Hill-Start Assist Control, Vehicle Dynamics Integrated Management or ABS, TRAC and VSC | ||
| Illumination and Taillight | ||
| Key Reminder (w/o Smart Key System) | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Rear No. 2 Seat with Stowing Function | ||
| Pre-Collision System | ||
| Safety Connect | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| SRS | ||
| Theft Deterrent | ||
| Tire Pressure Warning System | ||
| 7.5A | IG2 | Combination Meter, Multi Display and Parking Assist (Rear View Monitor w/o Navigation System) |
| Cruise Control (1AR-FE), Electronically Controlled Transmission and A/T Indicator (1AR-FE) and Engine Control (1AR-FE) | ||
| Cruise Control (2GR-FE), Electronically Controlled Transmission and A/T Indicator (2GR-FE) and Engine Control (2GR-FE) | ||
| Dynamic Radar Cruise Control | ||
| Engine Immobilizer System (w/Smart Key System), Smart Key System, Starting (w/Smart Key System), Steering Lock (w/Smart Key System) and Wireless Door Lock Control (w/Smart Key System) | ||
| Engine Immobilizer System (w/o Smart Key System) | ||
| Ignition (1AR-FE) | ||
| Ignition (2GR-FE) | ||
| Seat Belt Warning | ||
| SRS | ||
| 7.5A | OBD | Air Conditioning |
| Automatic Light Control and Light Auto Turn Off System | ||
| AWD | ||
| Back Door Opener | ||
| Combination Meter, Multi Display and Parking Assist (Rear View Monitor w/o Navigation System) | ||
| Data Link Connector 3 | ||
| Door Lock Control | ||
| Engine Immobilizer System (w/Smart Key System), Smart Key System, Starting (w/Smart Key System), Steering Lock (w/Smart Key System) and Wireless Door Lock Control (w/Smart Key System) | ||
| Front Fog Light | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Hill-Start Assist Control, Vehicle Dynamics Integrated Management or ABS, TRAC and VSC | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Key Reminder (w/o Smart Key System) | ||
| Power Back Door | ||
| Power Rear Quarter Window | ||
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| Power Slide Door | ||
| Power Window | ||
| Remote Control Mirror (w/Seat Position Memory) | ||
| Sliding Roof | ||
| Theft Deterrent | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 7.5A | RAD NO. 2 | Audio System (w/Navigation System), Navigation System and Parking Assist (Rear View Monitor w/Navigation System) |
| Audio System (w/o Navigation System) | ||
| Safety Connect | ||
| 7.5A | SHIFT LOCK | Cruise Control (1AR-FE), Electronically Controlled Transmission and A/T Indicator (1AR-FE) and Engine Control (1AR-FE) |
| Cruise Control (2GR-FE), Electronically Controlled Transmission and A/T Indicator (2GR-FE) and Engine Control (2GR-FE) | ||
| Dynamic Radar Cruise Control | ||
| Shift Lock | ||
| 7.5A | WIP ECU | Front Wiper and Washer (w/Auto Wiper System) |
| 10A | AFS | Headlight |
| 10A | ECU-ACC | Air Conditioning |
| Automatic Light Control and Light Auto Turn Off System | ||
| AWD | ||
| Back Door Opener | ||
| Clock | ||
| Combination Meter, Multi Display and Parking Assist (Rear View Monitor w/o Navigation System) | ||
| Door Lock Control | ||
| Engine Immobilizer System (w/Smart Key System), Smart Key System, Starting (w/Smart Key System), Steering Lock (w/Smart Key System) and Wireless Door Lock Control (w/Smart Key System) | ||
| Front Fog Light | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Hill-Start Assist Control, Vehicle Dynamics Integrated Management or ABS, TRAC and VSC | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Key Reminder (w/o Smart Key System) | ||
| Parking Assist (Back Guide Monitor) | ||
| Power Back Door | ||
| Power Rear Quarter Window | ||
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| Power Slide Door | ||
| Power Window | ||
| Remote Control Mirror (w/Seat Position Memory) | ||
| Remote Control Mirror (w/o Seat Position Memory) | ||
| Shift Lock | ||
| Sliding Roof | ||
| Theft Deterrent | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 10A | ECU-IG NO. 1 | Air Conditioning |
| Audio System (w/Navigation System), Navigation System and Parking Assist (Rear View Monitor w/Navigation System) | ||
| Auto Access Seat | ||
| Automatic Glare-Resistant EC Mirror with Compass and Garage Door Opener | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| AWD | ||
| Back Door Opener | ||
| Combination Meter, Multi Display and Parking Assist (Rear View Monitor w/o Navigation System) | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Engine Immobilizer System (w/Smart Key System), Smart Key System, Starting (w/Smart Key System), Steering Lock (w/Smart Key System) and Wireless Door Lock Control (w/Smart Key System) | ||
| Front Fog Light | ||
| Front Window Deicer | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Hill-Start Assist Control, Vehicle Dynamics Integrated Management or ABS, TRAC and VSC | ||
| Horn | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Key Reminder (w/o Smart Key System) | ||
| Mirror Heater and Rear Window Defogger | ||
| Multiplex Communication System (CAN) | ||
| Parking Assist (Back Guide Monitor) | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Back Door | ||
| Power Rear Quarter Window | ||
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| Power Slide Door | ||
| Power Window | ||
| Pre-Collision System | ||
| Remote Control Mirror (w/Seat Position Memory) | ||
| Seat Heater | ||
| Sliding Roof | ||
| Stop Light | ||
| Theft Deterrent | ||
| Tire Pressure Warning System | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 10A | ECU-IG NO. 2 | Dynamic Radar Cruise Control |
| EPS | ||
| Front Wiper and Washer (w/Auto Wiper System) | ||
| Headlight | ||
| Multiplex Communication System (CAN) | ||
| Parking Assist (Back Guide Monitor) | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Back Door | ||
| Power Outlet (120V) | ||
| Power Rear No. 2 Seat with Stowing Function | ||
| Power Slide Door | ||
| Pre-Collision System | ||
| Seat Belt Warning | ||
| SRS | ||
| 10A | GAUGE NO. 1 | Audio System (w/Navigation System), Navigation System and Parking Assist (Rear View Monitor w/Navigation System) |
| Auto Access Seat | ||
| AWD | ||
| Back Door Opener | ||
| Back-Up Light | ||
| Charging | ||
| Combination Meter, Multi Display and Parking Assist (Rear View Monitor w/o Navigation System) | ||
| Cruise Control (1AR-FE), Electronically Controlled Transmission and A/T Indicator (1AR-FE) and Engine Control (1AR-FE) | ||
| Cruise Control (2GR-FE), Electronically Controlled Transmission and A/T Indicator (2GR-FE) and Engine Control (2GR-FE) | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Hill-Start Assist Control, Vehicle Dynamics Integrated Management or ABS, TRAC and VSC | ||
| Interior Light | ||
| Parking Assist (Back Guide Monitor) | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Back Door | ||
| Power Rear No. 2 Seat with Stowing Function | ||
| Power Slide Door | ||
| Turn Signal and Hazard Warning Light | ||
| 10A | HTR-IG | Air Conditioning |
| Cooling Fan | ||
| Front Window Deicer | ||
| Mirror Heater and Rear Window Defogger | ||
| 10A | PANEL | Illumination and Taillight |
| 10A | STOP | AWD |
| Cruise Control (1AR-FE), Electronically Controlled Transmission and A/T Indicator (1AR-FE) and Engine Control (1AR-FE) | ||
| Cruise Control (2GR-FE), Electronically Controlled Transmission and A/T Indicator (2GR-FE) and Engine Control (2GR-FE) | ||
| Dynamic Radar Cruise Control | ||
| Engine Immobilizer System (w/Smart Key System), Smart Key System, Starting (w/Smart Key System), Steering Lock (w/Smart Key System) and Wireless Door Lock Control (w/Smart Key System) | ||
| Hill-Start Assist Control, Vehicle Dynamics Integrated Management or ABS, TRAC and VSC | ||
| Power Rear No. 2 Seat with Stowing Function | ||
| Pre-Collision System | ||
| Shift Lock | ||
| Stop Light | ||
| 10A | TAIL | Front Fog Light |
| Illumination and Taillight | ||
| 15A | CIG | Power Outlet (12V) |
| 15A | D/L | Back Door Opener |
| Door Lock Control | ||
| Engine Immobilizer System (w/Smart Key System), Smart Key System, Starting (w/Smart Key System), Steering Lock (w/Smart Key System) and Wireless Door Lock Control (w/Smart Key System) | ||
| Power Slide Door | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 15A | P/OUTLET | Power Outlet (12V) |
| 15A | P/VENT | Power Rear Quarter Window |
| Sliding Roof | ||
| 15A | S-HTR FL | Seat Heater |
| 15A | S-HTR FR | Seat Heater |
| 15A | WASHER RR | Rear Wiper and Washer |
| 20A | P/W FL | Power Window |
| 20A | P/W FR | Power Window |
| 20A | P/W RL | Power Window |
| 20A | P/W RR | Power Window |
| 20A | WASHER | Front Wiper and Washer (w/Auto Wiper System) |
| Front Wiper and Washer (w/o Auto Wiper System) | ||
| 20A | WIP RR | Rear Wiper and Washer |
| 25A | PSD LH | Power Slide Door |
| 25A | PSD RH | Power Slide Door |
| 30A | P/SEAT FL | Power Seat (Driver's Seat w/Seat Position Memory) |
| Power Seat (Driver's Seat w/o Seat Position Memory) | ||
| 30A | P/SEAT FR | Power Seat (Front Passenger's Seat) |
| 30A | S/ROOF Sliding | Roof |
| 30A | WIP Front | Wiper and Washer (w/Auto Wiper System) |
| Front Wiper and Washer (w/o Auto Wiper System) | ||
