Vehicle Stability Control System
>>
DTC C1403: Rear Speed Sensor RH Malfunction; DTC C1404: Rear Speed Sensor LH Malfunction
>>
Wiring Diagram
DTC C1403: Rear Speed Sensor RH Malfunction; DTC C1404: Rear Speed Sensor LH Malfunction: Wiring Diagram

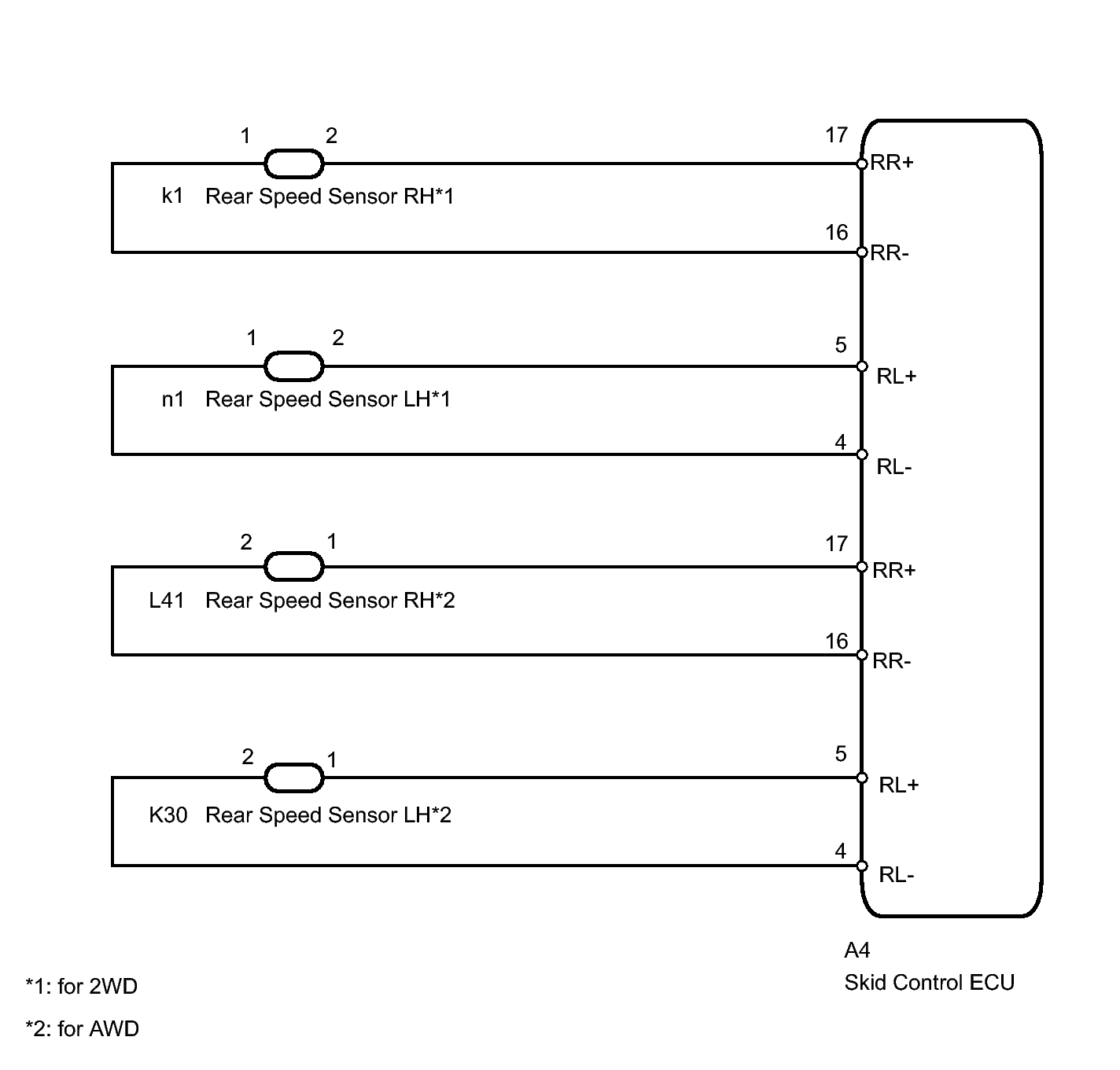

Fig 1: Rear Speed Sensors Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
