DTC B2260: Power Slide Door Neutral Closer Switch RH Malfunction during Open Operation: Description

The neutral position switch is installed to the power slide door lock assembly, and detects the neutral position of the active closer lever. During a slide door open operation, if the neutral position cannot be accurately detected due to a malfunction in either the neutral position switch (NPR) or neutral position switch (NPC) signal, the power slide door ECU stores a DTC.

WARNING:

A malfunction in the neutral position switch may cause the power slide door to open unexpectedly, even when the vehicle is in motion.

HINT:

After the release operation, the active closer lever returns to the neutral position area by means of the release return operation. During this operation, the neutral position SW (NPR) and neutral position SW (NPC) operate according to the following table.

	Neutral Position (NPR)	→	Release Operation	→	Release Return Operation	→	Neutral Position (NPR)
NPC SW	OFF	→	OFF	→	OFF	→	OFF
NPR SW	OFF	→	ON	→	ON	→	OFF

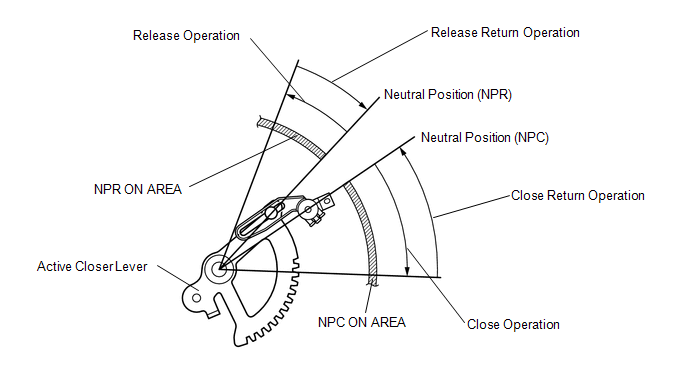

Fig 1: Identifying Power Slide Door Neutral Closer Operation

DTC No.	DTC Detection Condition	Trouble Area
B2260	The release operation begins with the neutral position SW (NPR) in the ON position. With the neutral position SW (NPR) ON, the neutral position SW (NPC) is simultaneously turned ON. The release return operation continues for 1.4 seconds or more.	Power slide door lock assembly RH Rear door wire RH Slide door motor unit RH (Power slide door ECU RH)
