DTC B124C: Automatic High Beam Camera: Wiring Diagram

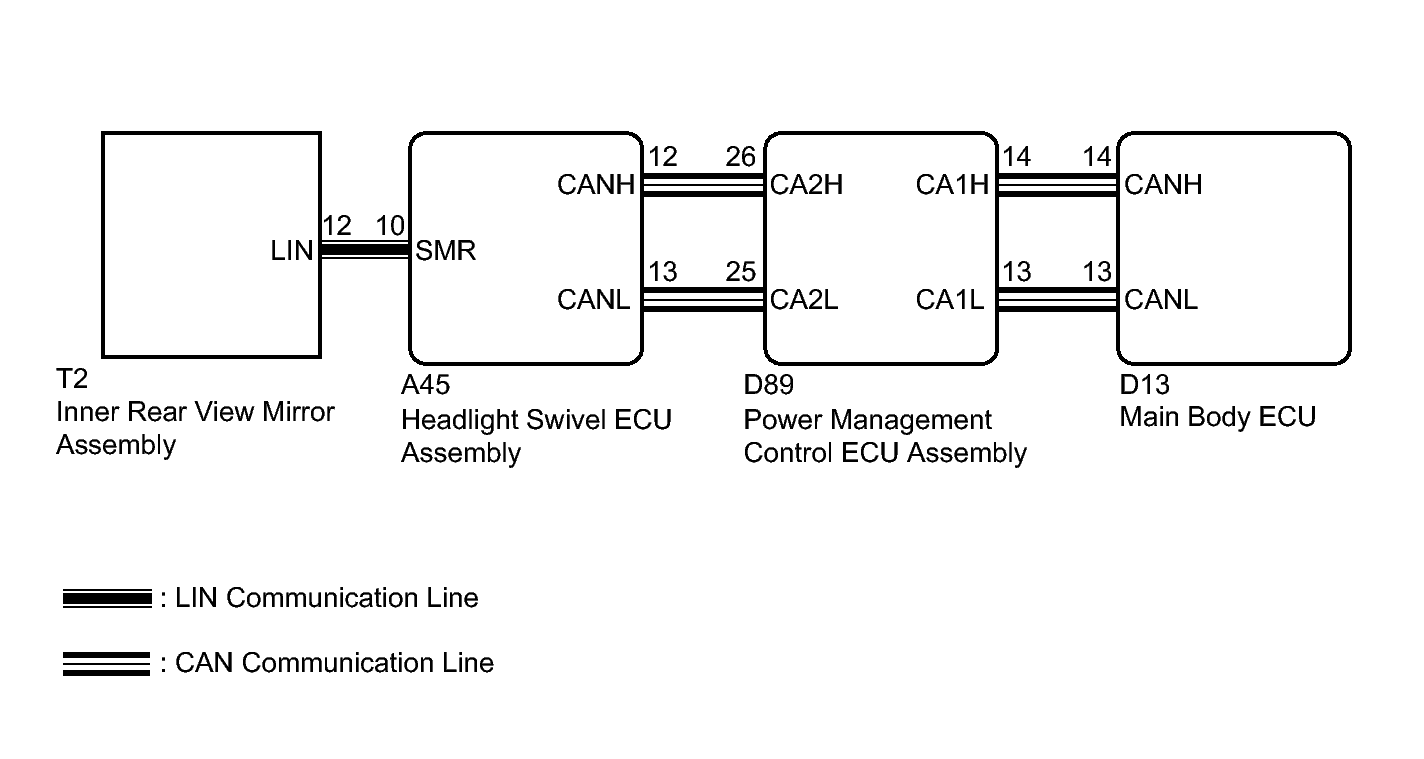

Fig 1: Inner Rear View Mirror Assembly Wiring Diagram
GTY294703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
