Headlight Relay Circuit: Wiring Diagram

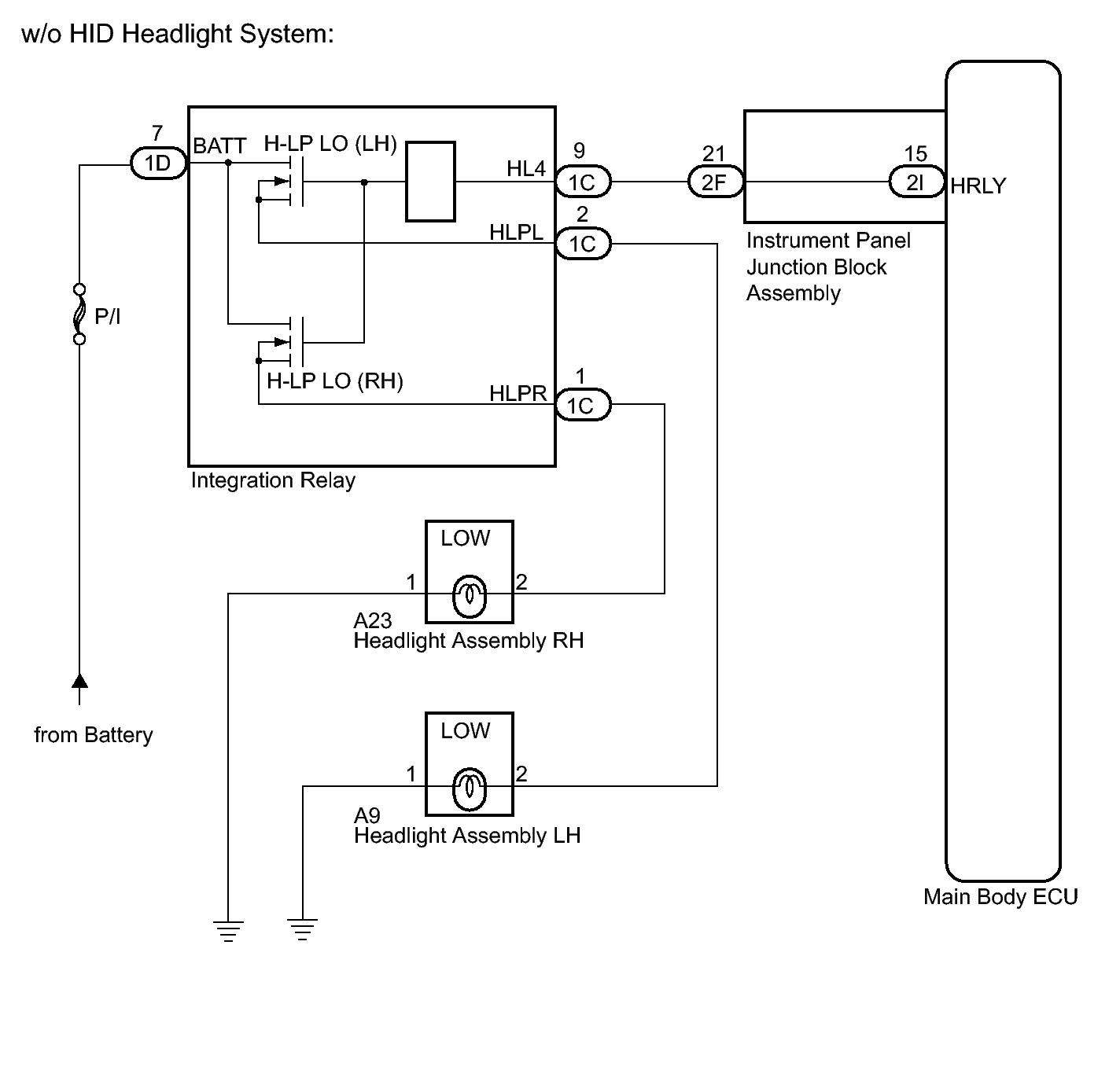

Fig 1: Headlight Relay Circuit Wiring Diagram (w/o HID)
GTY323873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

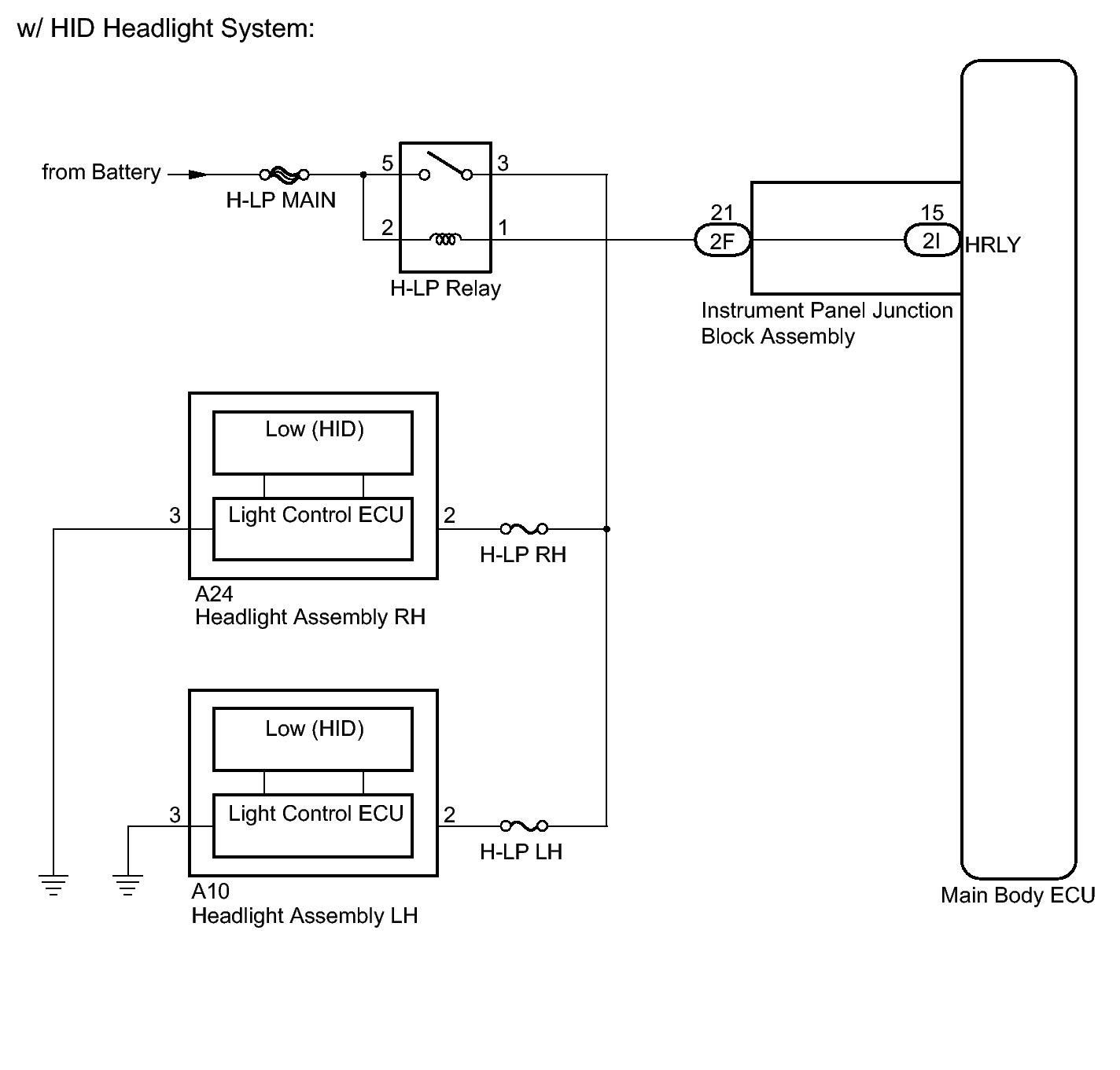

Fig 2: Headlight Relay Circuit Wiring Diagram (w/ HID)
GTY329899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
