Headlight (HI-BEAM) Circuit: Wiring Diagram

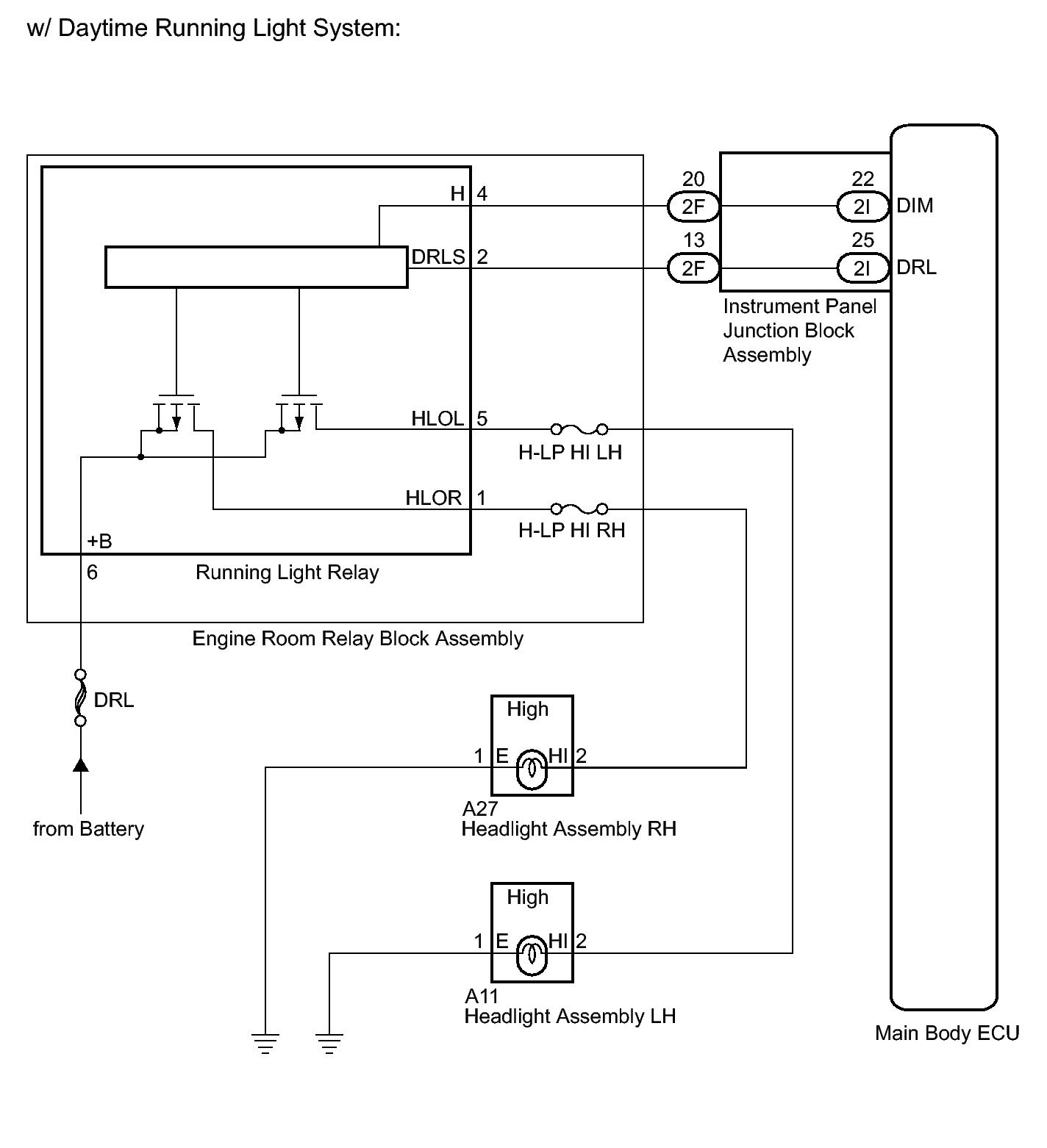

Fig 1: Headlight (HI-BEAM) Circuit (w/ Daytime Running Light System) - Wiring Diagram (1 Of 2)
GTY306727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

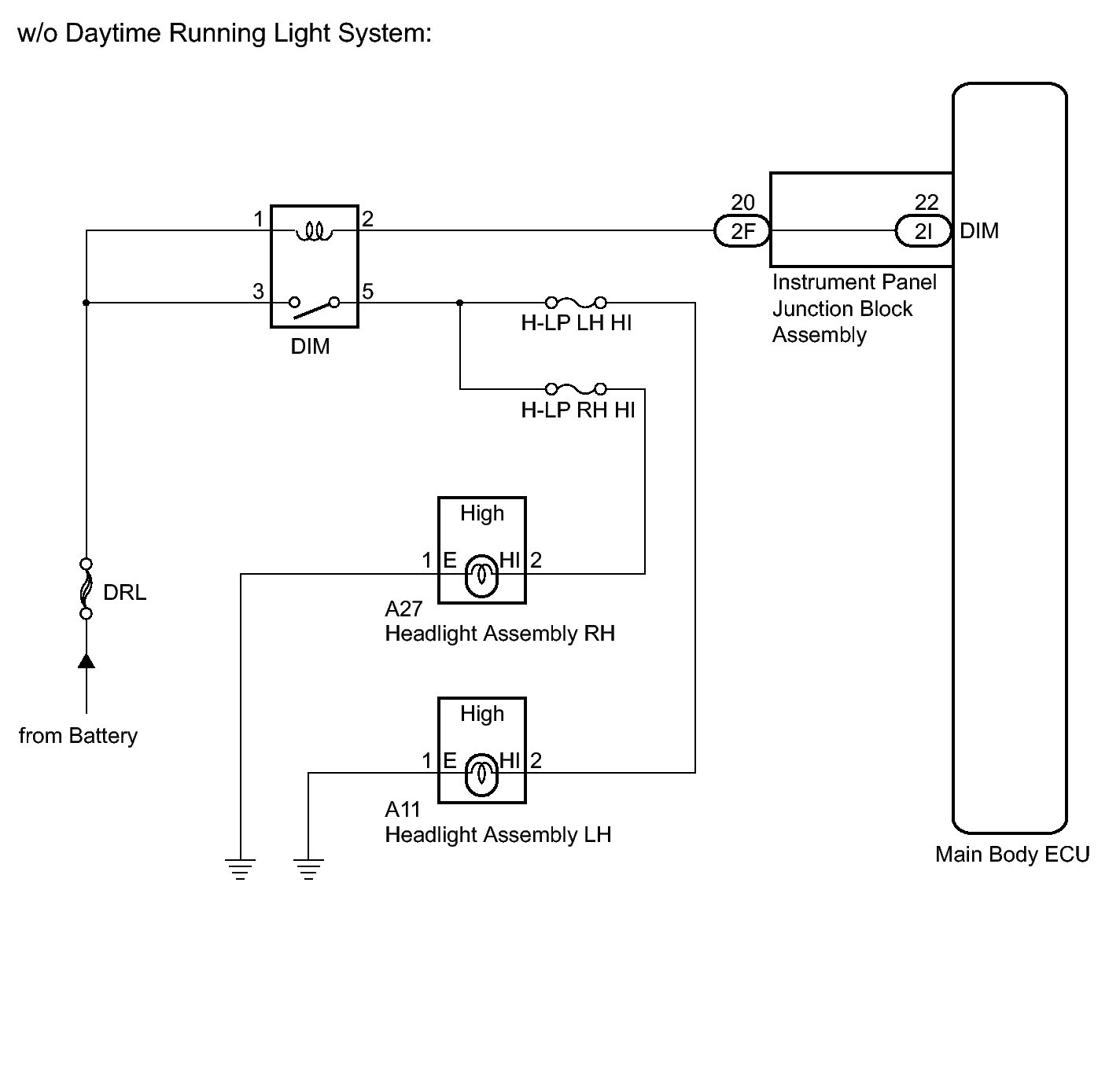

Fig 2: Headlight (HI-BEAM) Circuit (w/o Daytime Running Light System) - Wiring Diagram (2 Of 2)
GTY295609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
