Parts Location: Illustration

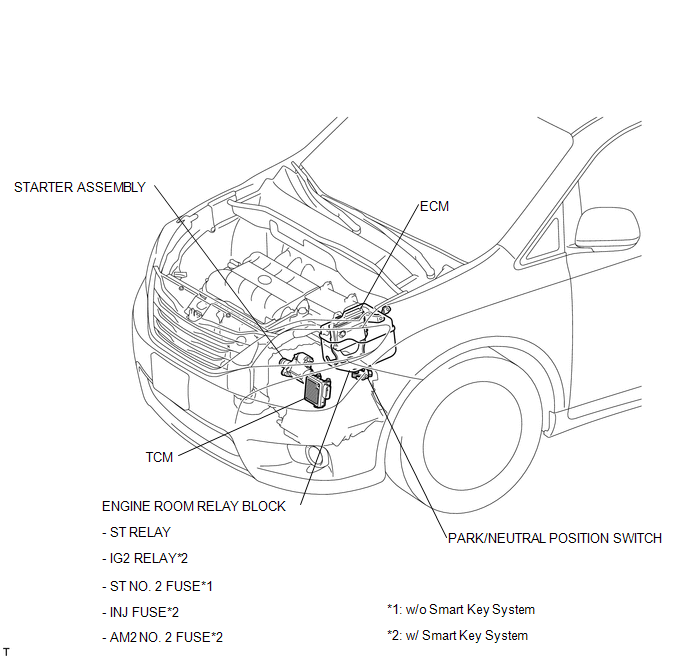

Fig 1: Starting System Components Location (1 of 2)
GTY300209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

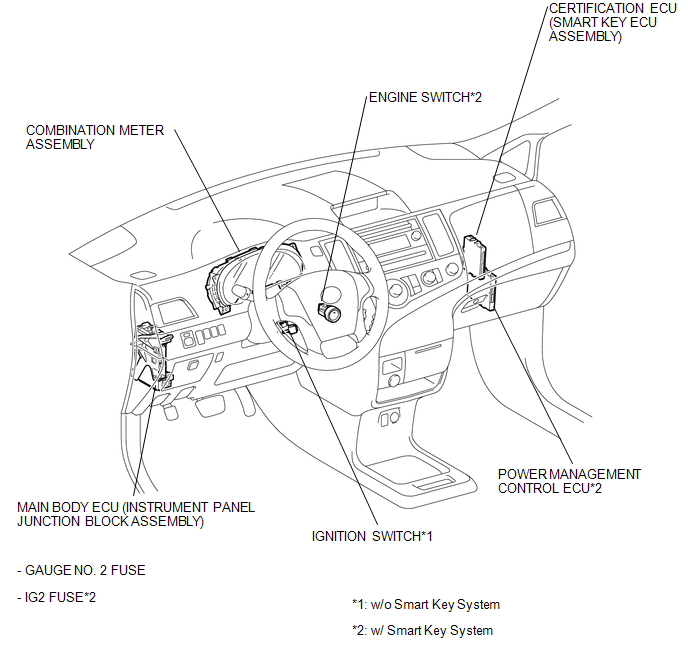

Fig 1: Starting System Components Location (2 of 2)
GTY305530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
