REAR POWER OUTLET SOCKET (w/ DVD Player): Removal: Removal

  1. REMOVE QUARTER PILLAR COVER
    1. Using a moulding remover, disengage the 4 claws and 2 guides and remove the quarter pillar cover.

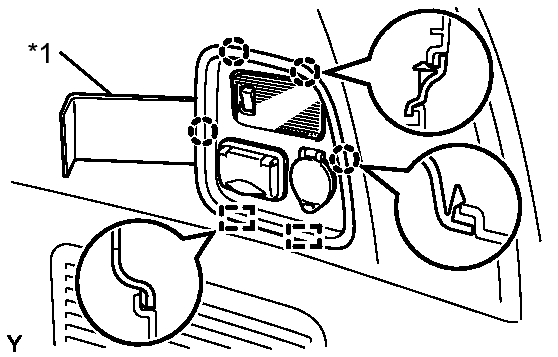

      Fig 1: Identifying Quarter Pillar Cover Claws & Guides
      GTY304498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Moulding Remover
    2. Disconnect the 3 connectors.
  2. REMOVE POWER OUTLET SOCKET ASSEMBLY
    1. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the power outlet socket.

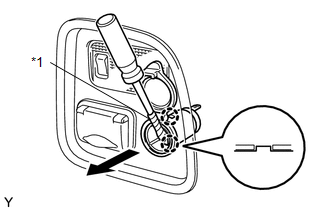

      Fig 2: Removing Power Outlet Socket Assembly, Using Screwdriver
      GTY306779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
  3. REMOVE POWER OUTLET SOCKET COVER
    1. Disengage the 2 claws and remove the power outlet socket cover.

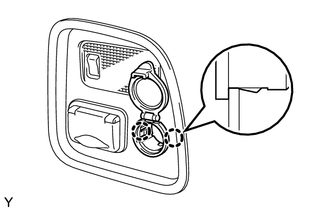

      Fig 3: Identifying Power Outlet Socket Cover Claws
      GTY301828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE POWER OUTLET SOCKET ASSEMBLY
    1. Disengage the 2 claws and remove the power outlet socket.

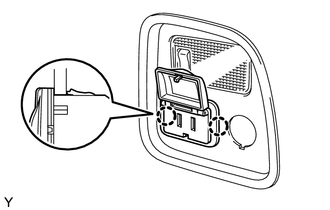

      Fig 4: Identifying Power Outlet Socket Cover Claws
      GTY301830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
