: Ground Points
| Code | See | Ground Points Location |
|---|---|---|
| A2 | : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS; : LOCATION OF GROUND POINTS (2GR-FE) | Front Fender Apron LH |
| B1 | : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS; : LOCATION OF GROUND POINTS (2GR-FE) | Engine Unit |
| B2 | ||
| B3 | ||
| D3 | : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS | Cowl Side Panel RH |
| D6 | : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS | Instrument Panel Brace RH |
| D7 | : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS | Instrument Panel Brace LH |
| K1 | : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS | Under Front Seat LH |

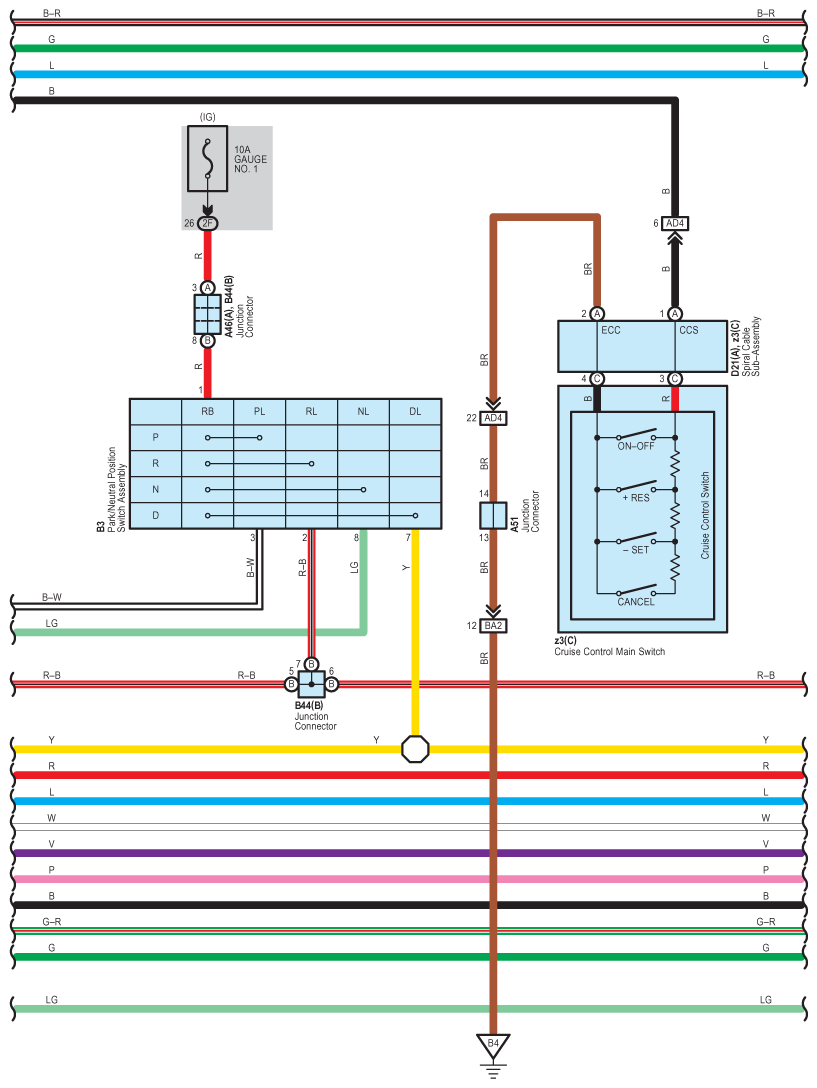

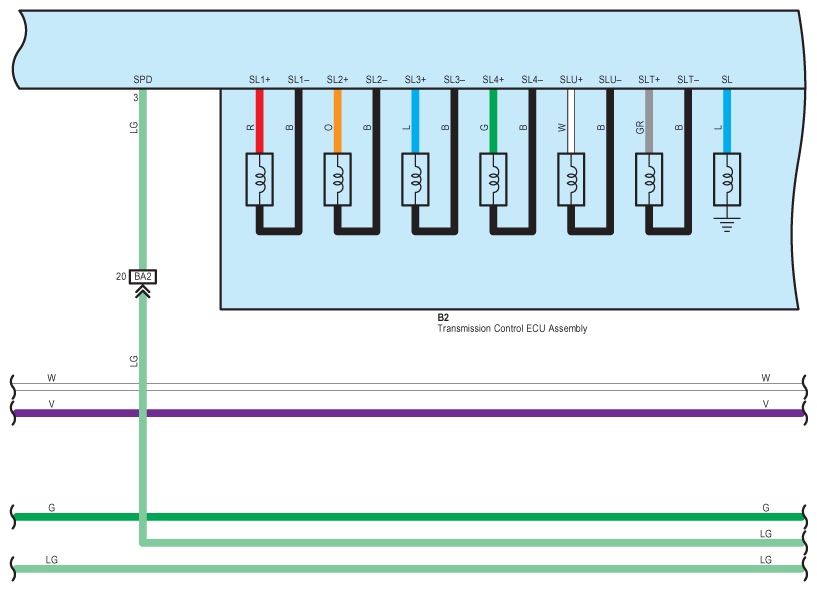

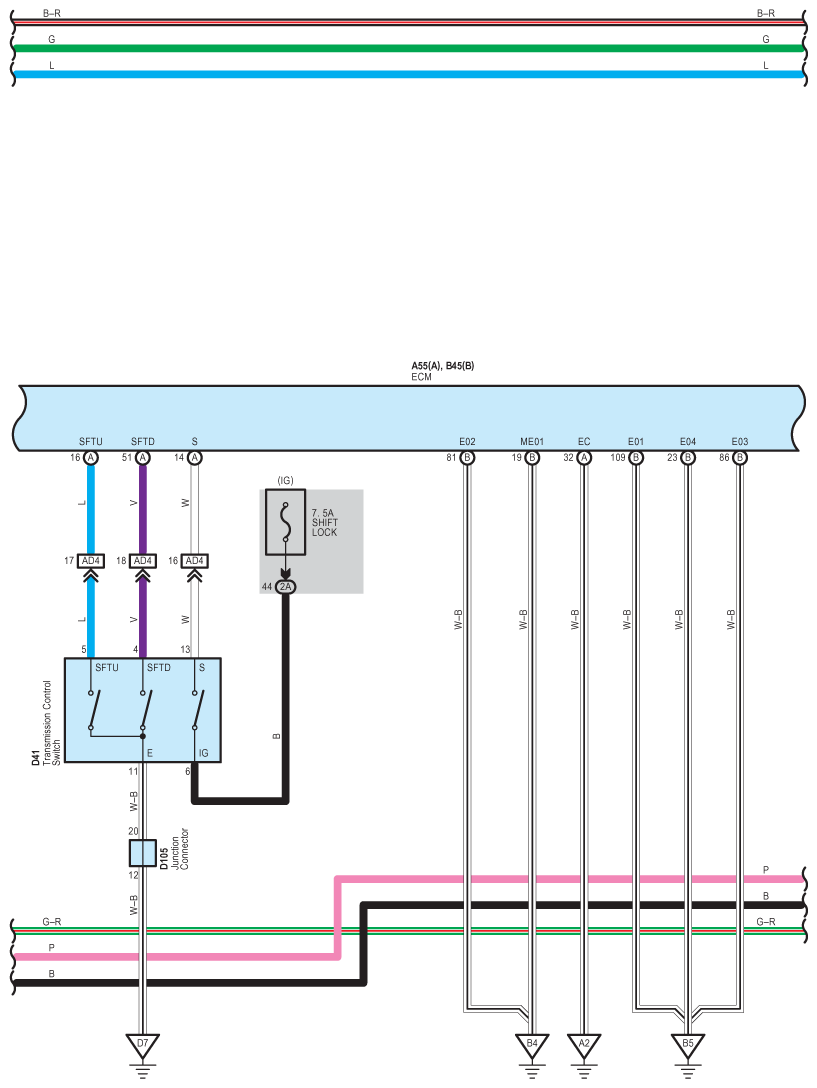

Fig 1: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control Wiring Diagram (1AR-FE; 1 Of 19)

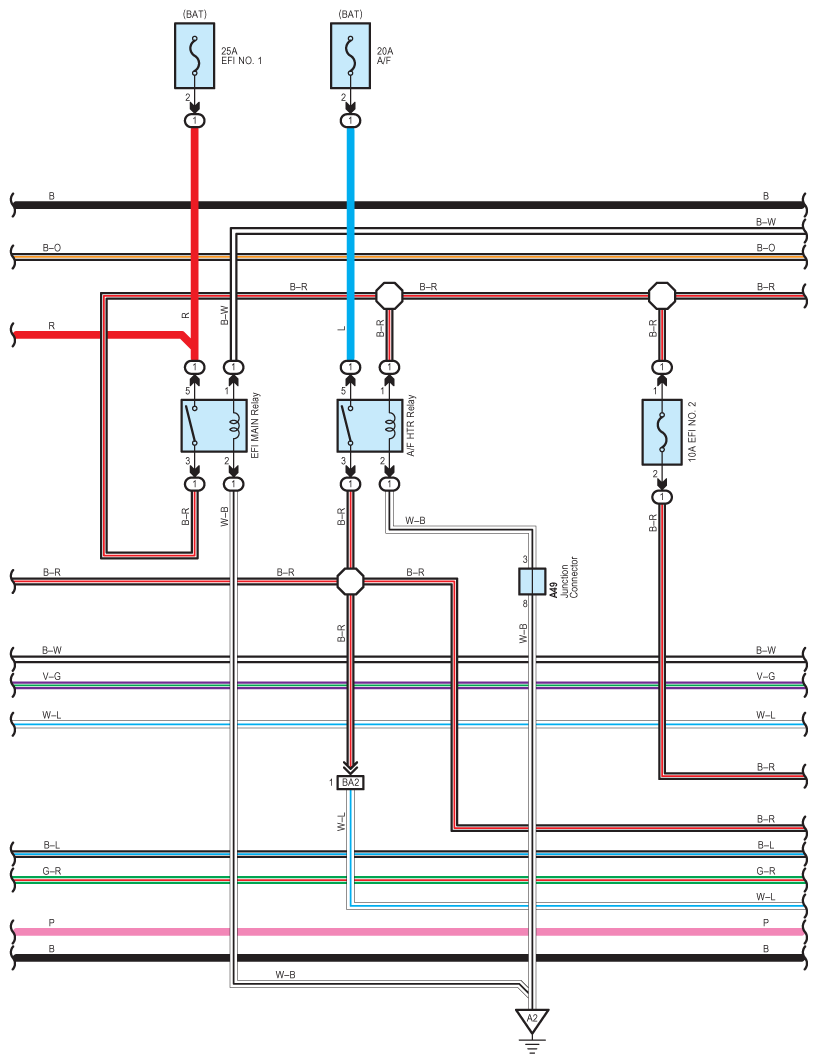

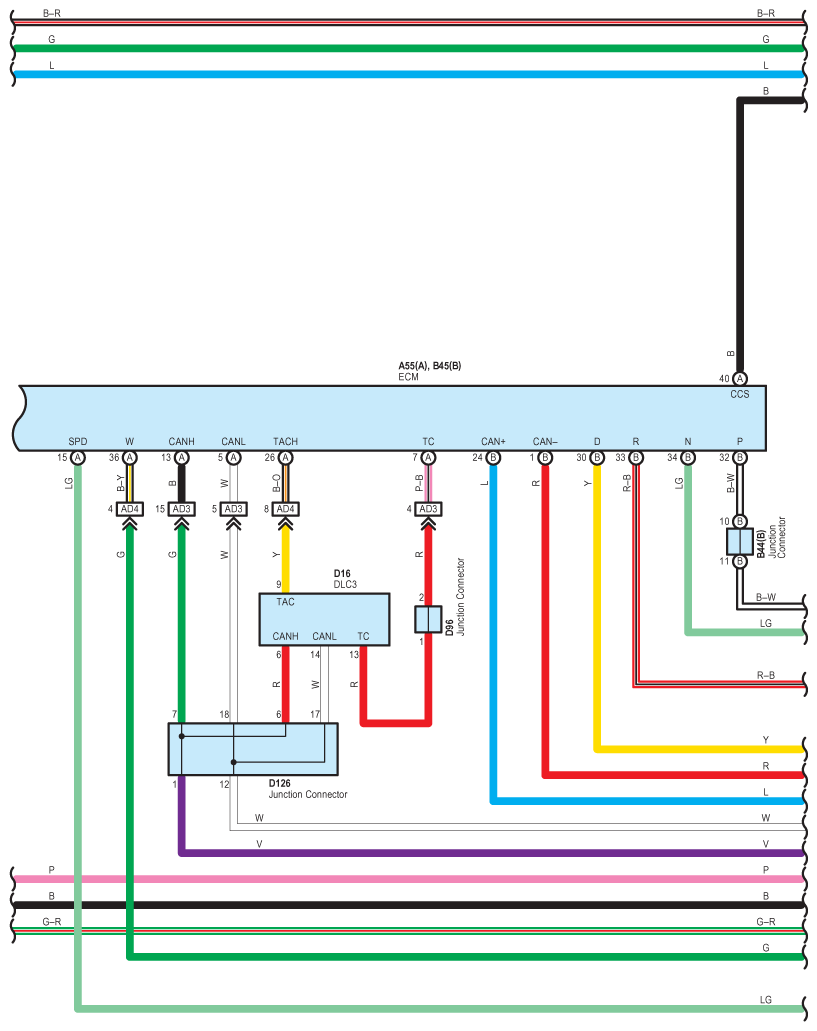

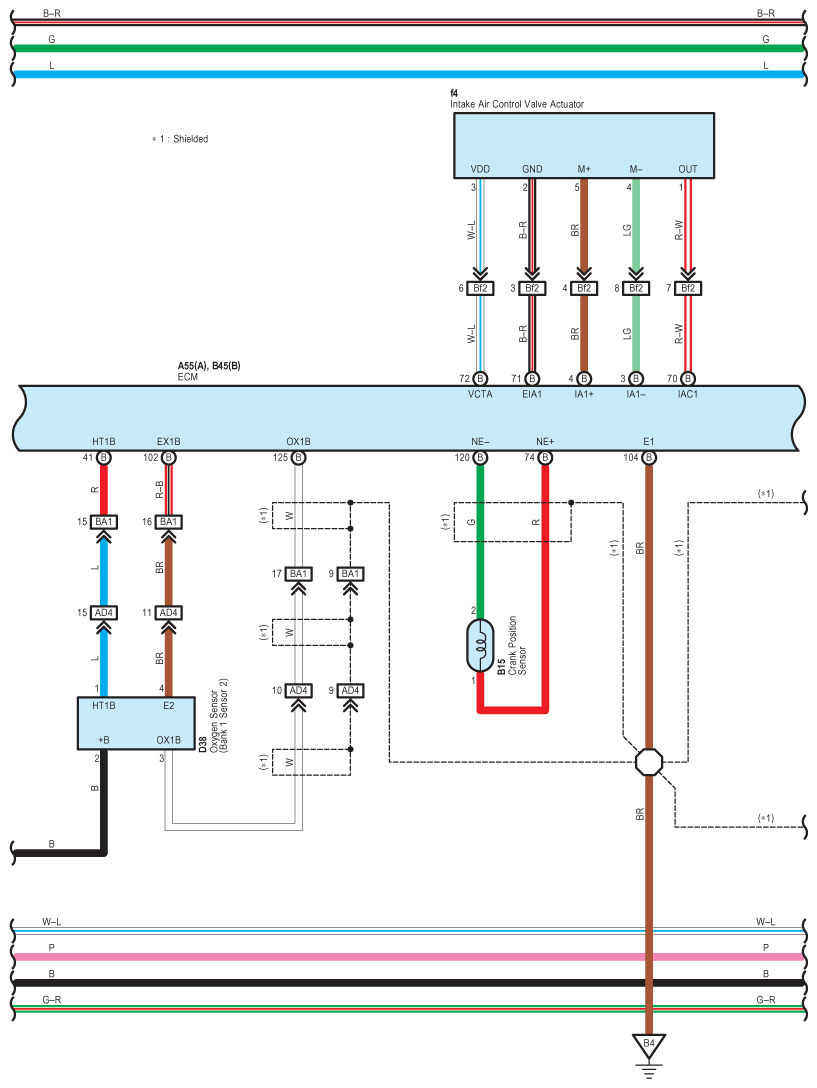

Fig 2: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control Wiring Diagram (1AR-FE; 2 Of 19)

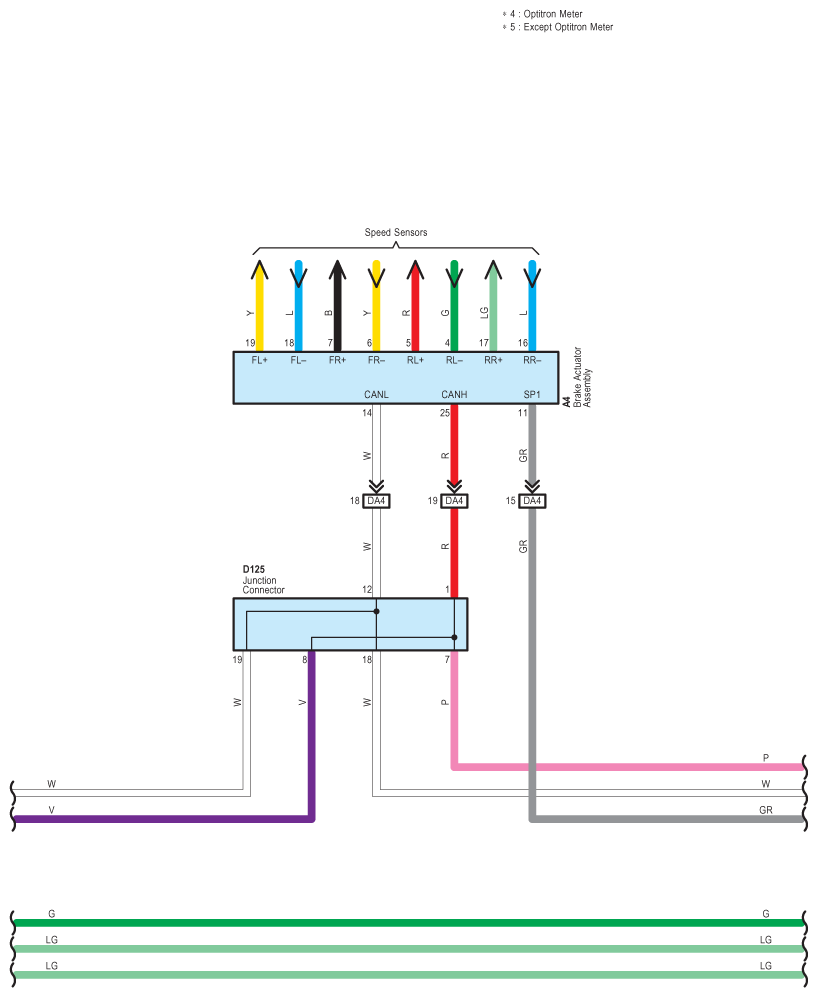

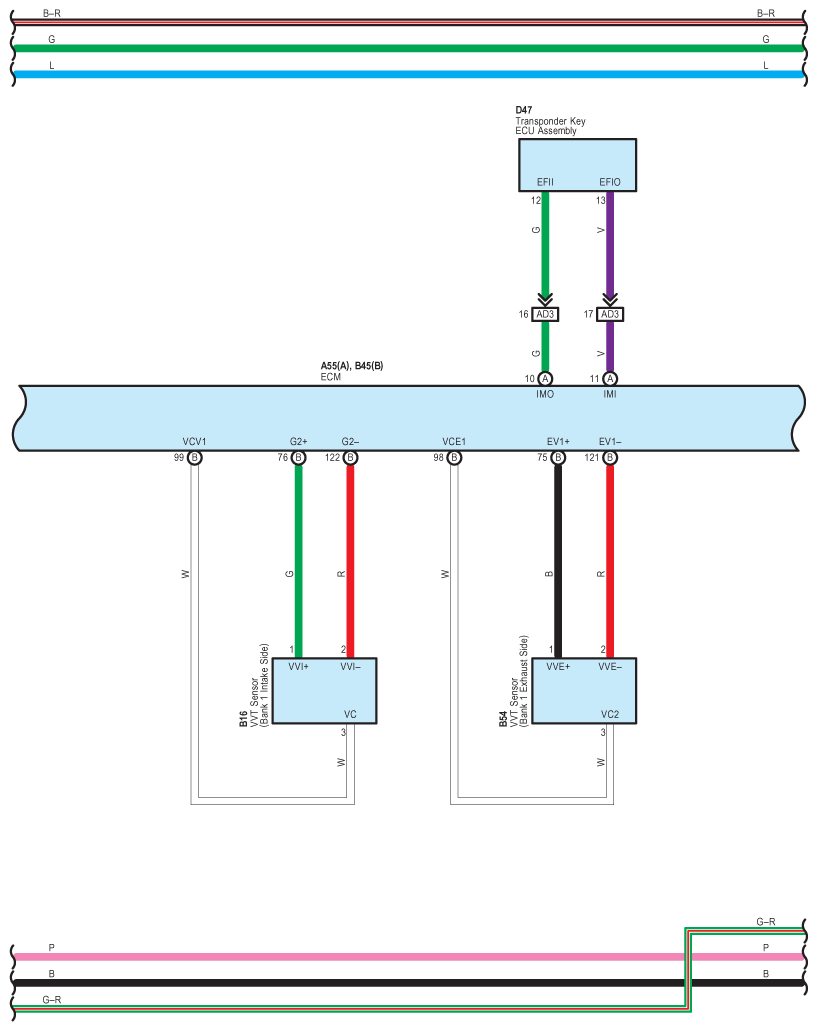

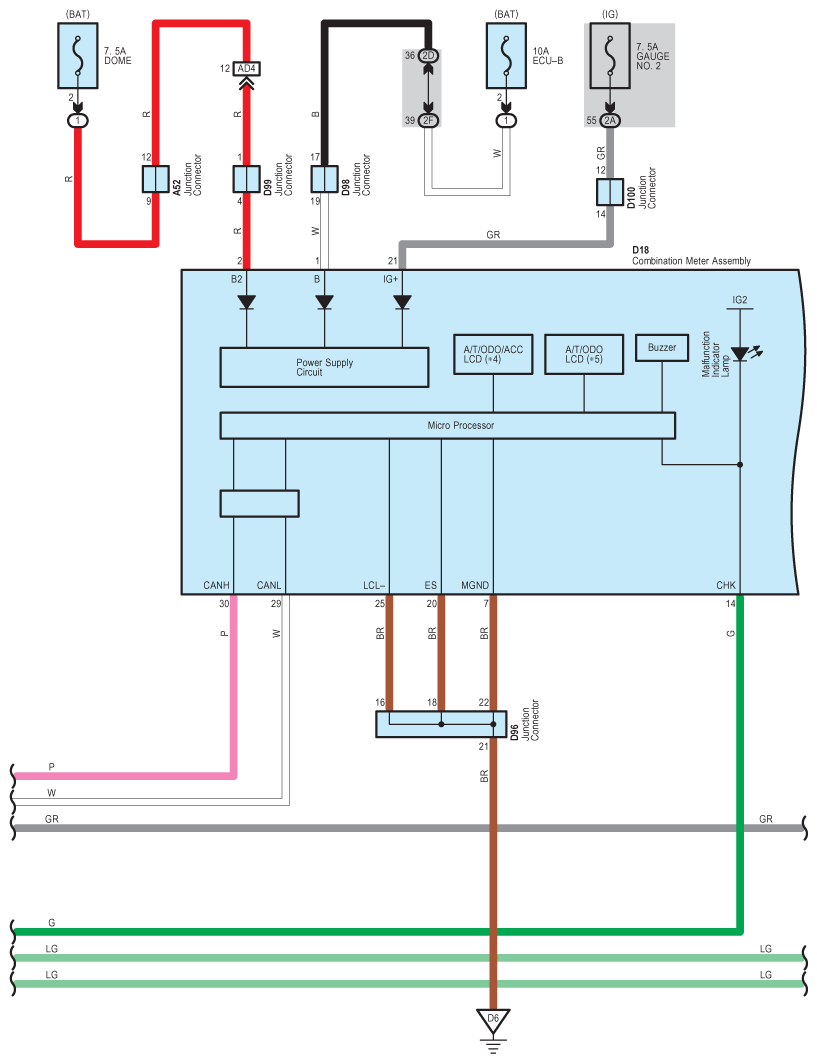

Fig 3: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control Wiring Diagram (1AR-FE; 3 Of 19)

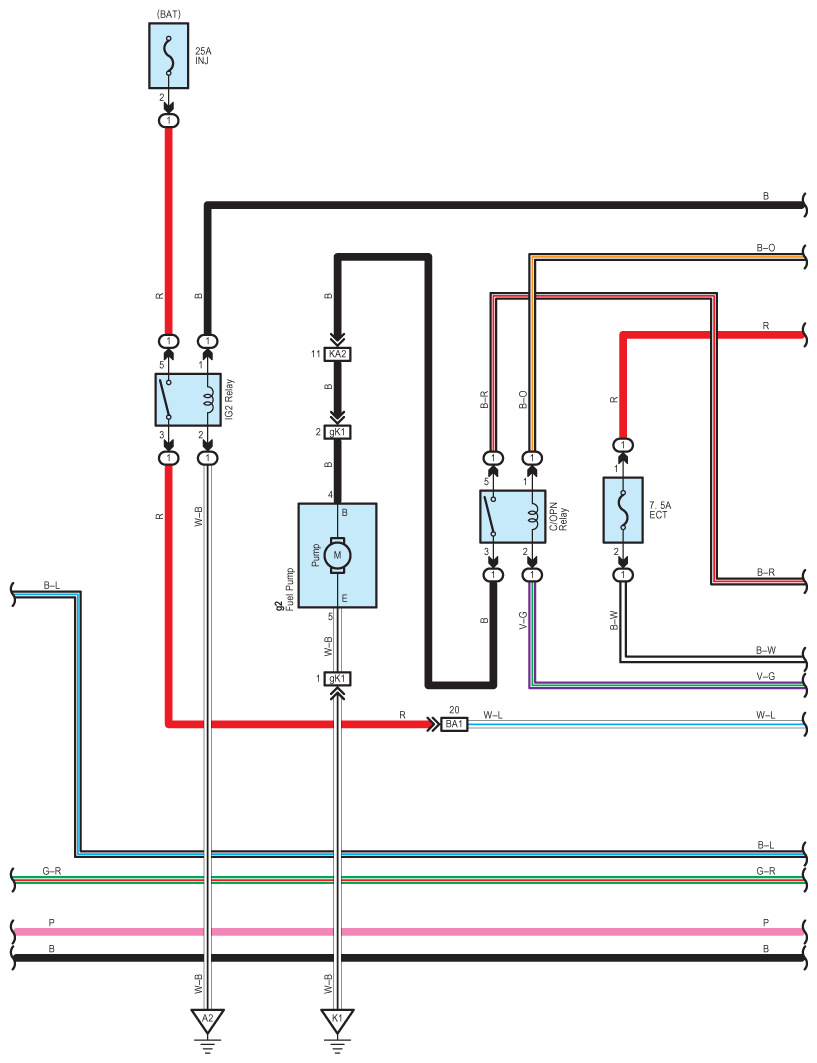

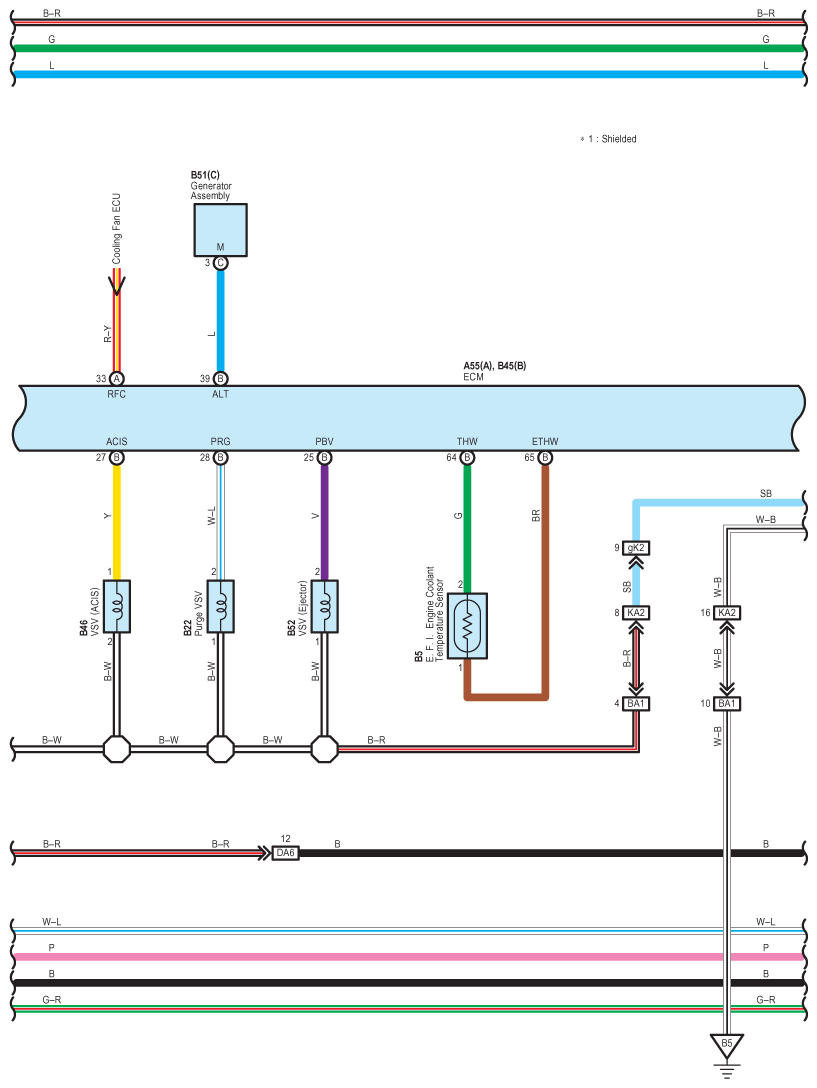

Fig 4: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control Wiring Diagram (1AR-FE; 4 Of 19)

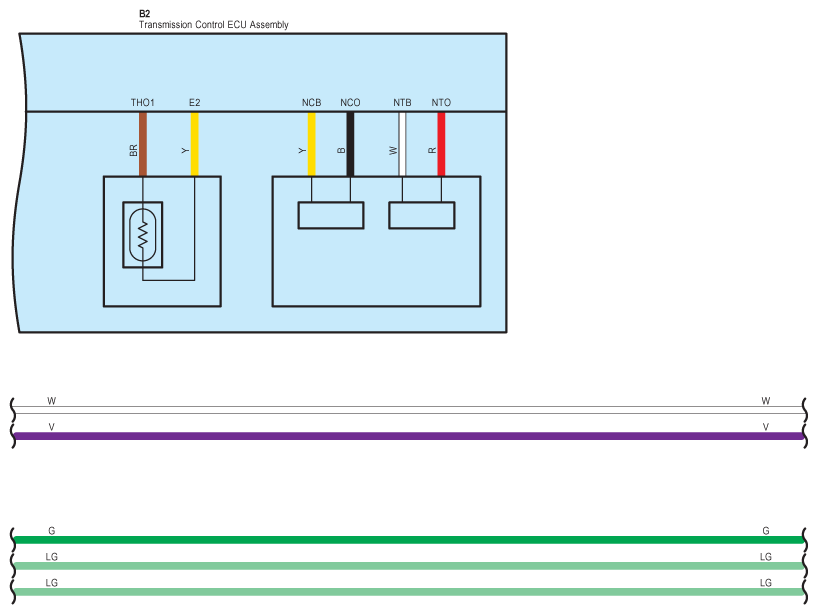

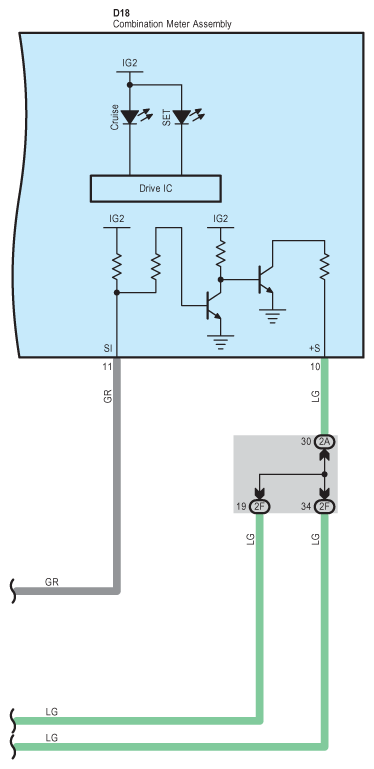

Fig 5: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control Wiring Diagram (1AR-FE; 5 Of 19)

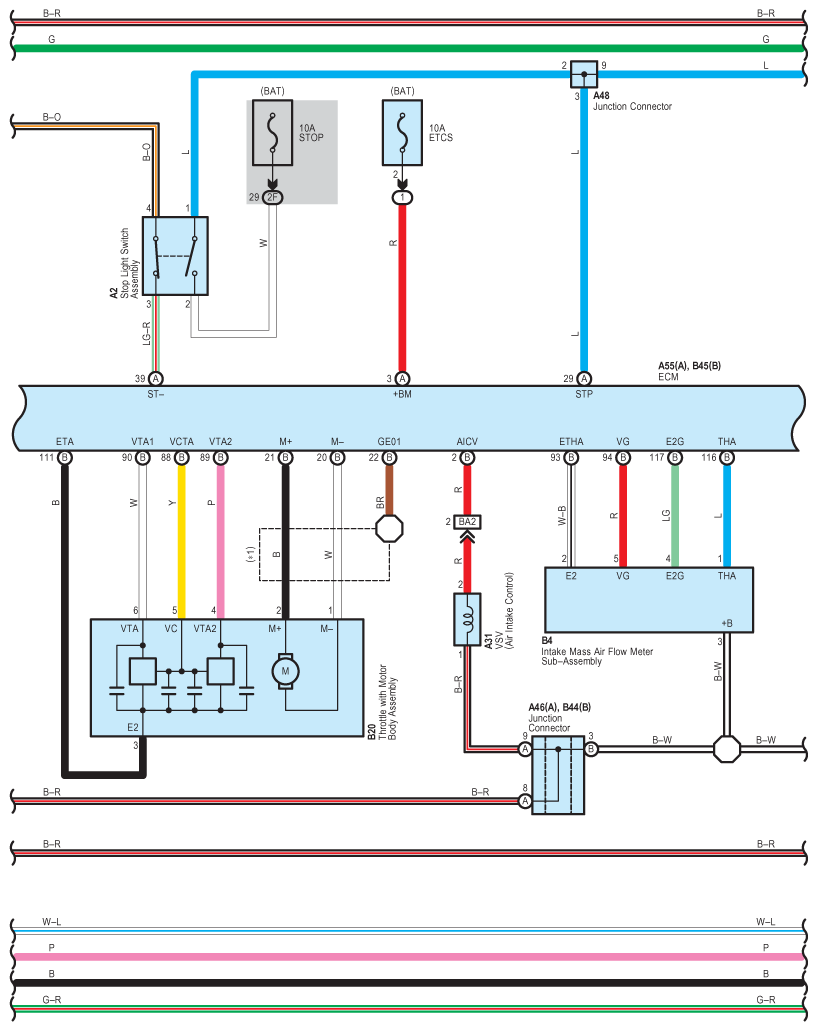

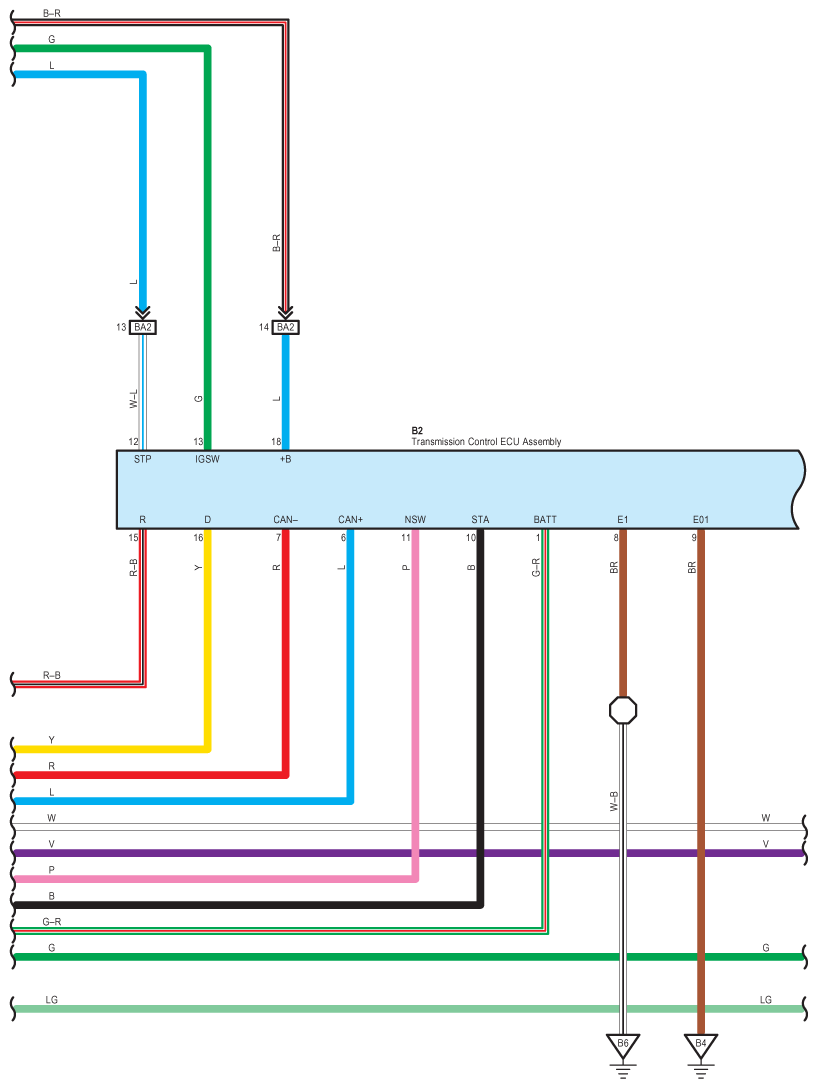

Fig 6: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control Wiring Diagram (1AR-FE; 6 Of 19)

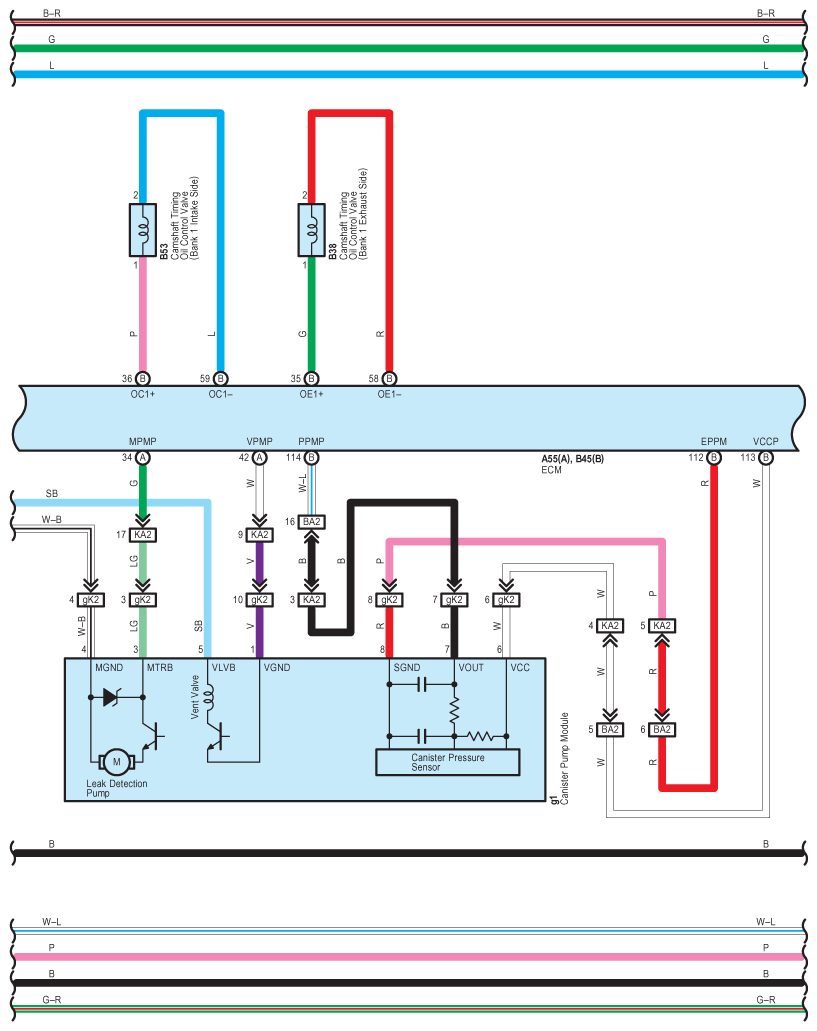

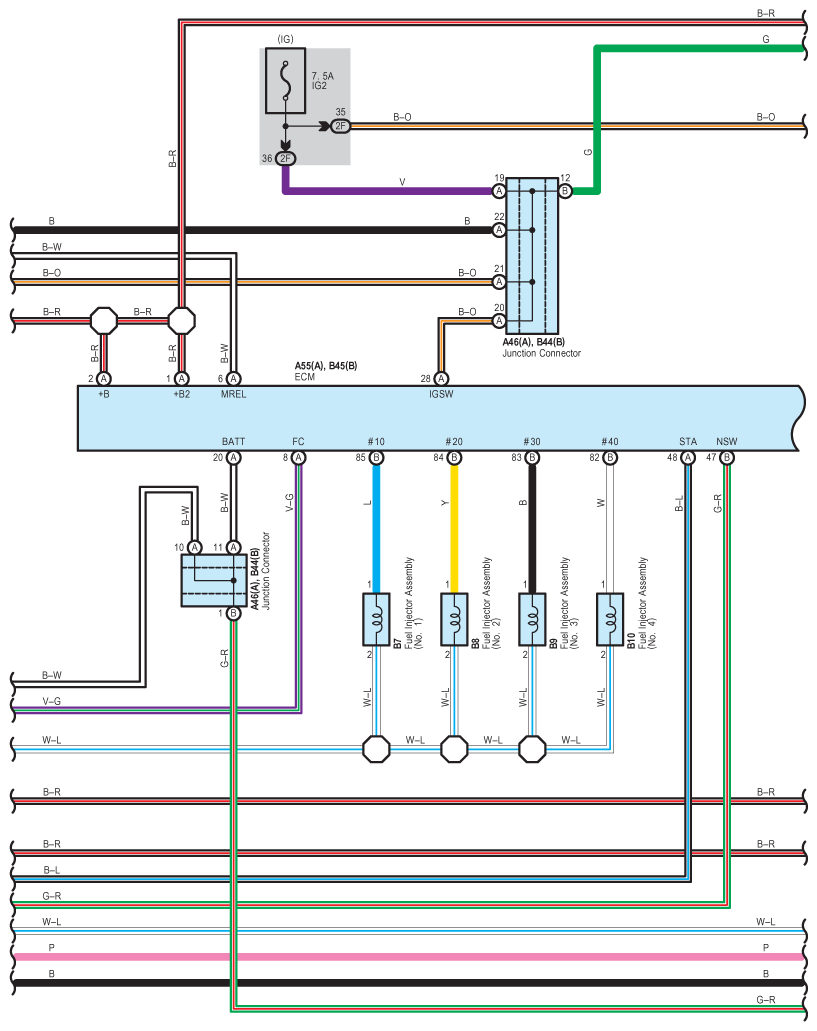

Fig 7: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control Wiring Diagram (1AR-FE; 7 Of 19)

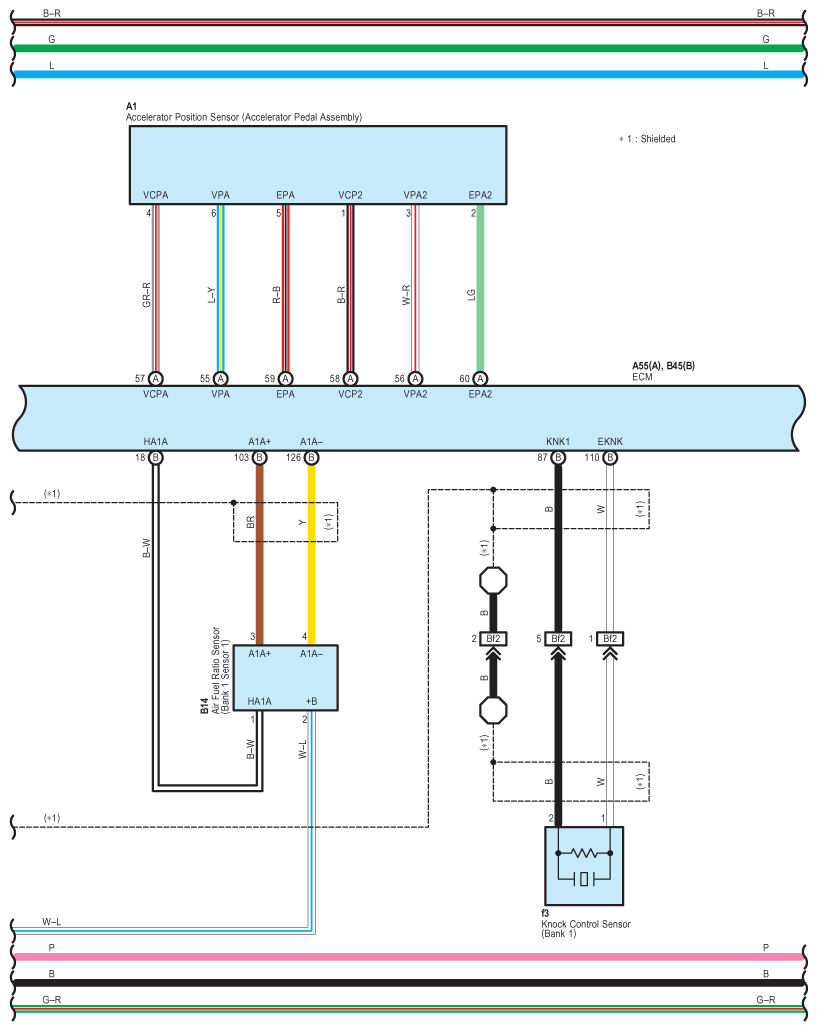

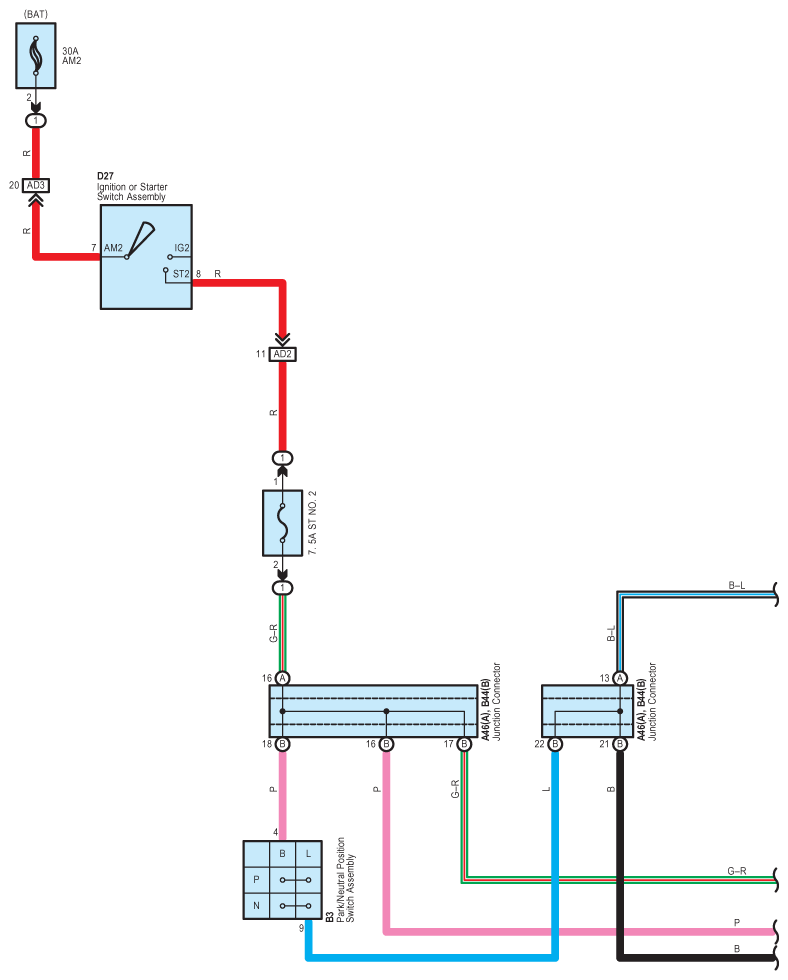

Fig 8: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control Wiring Diagram (1AR-FE; 8 Of 19)
Fig 9: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control Wiring Diagram (1AR-FE; 9 Of 19)
Fig 10: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control Wiring Diagram (1AR-FE; 10 Of 19)
Fig 11: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control Wiring Diagram (1AR-FE; 11 Of 19)
Fig 12: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control Wiring Diagram (1AR-FE; 12 Of 19)
Fig 13: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control Wiring Diagram (1AR-FE; 13 Of 19)
Fig 14: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control Wiring Diagram (1AR-FE; 14 Of 19)
Fig 15: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control Wiring Diagram (1AR-FE; 15 Of 19)
Fig 16: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control Wiring Diagram (1AR-FE; 16 Of 19)
Fig 17: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control Wiring Diagram (1AR-FE; 17 Of 19)
| Code | See | Ground Points Location |
|---|---|---|
| A2 | 1AR-FE | Front Fender Apron LH |
| B4 | ||
| B5 | 1AR-FE | Engine Unit |
| B6 | ||
| D6 | : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS | Instrument Panel Brace RH |
| D7 | : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS | Instrument Panel Brace LH |
| K1 | : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS | Under Front Seat LH |
