Parts Location: Illustration

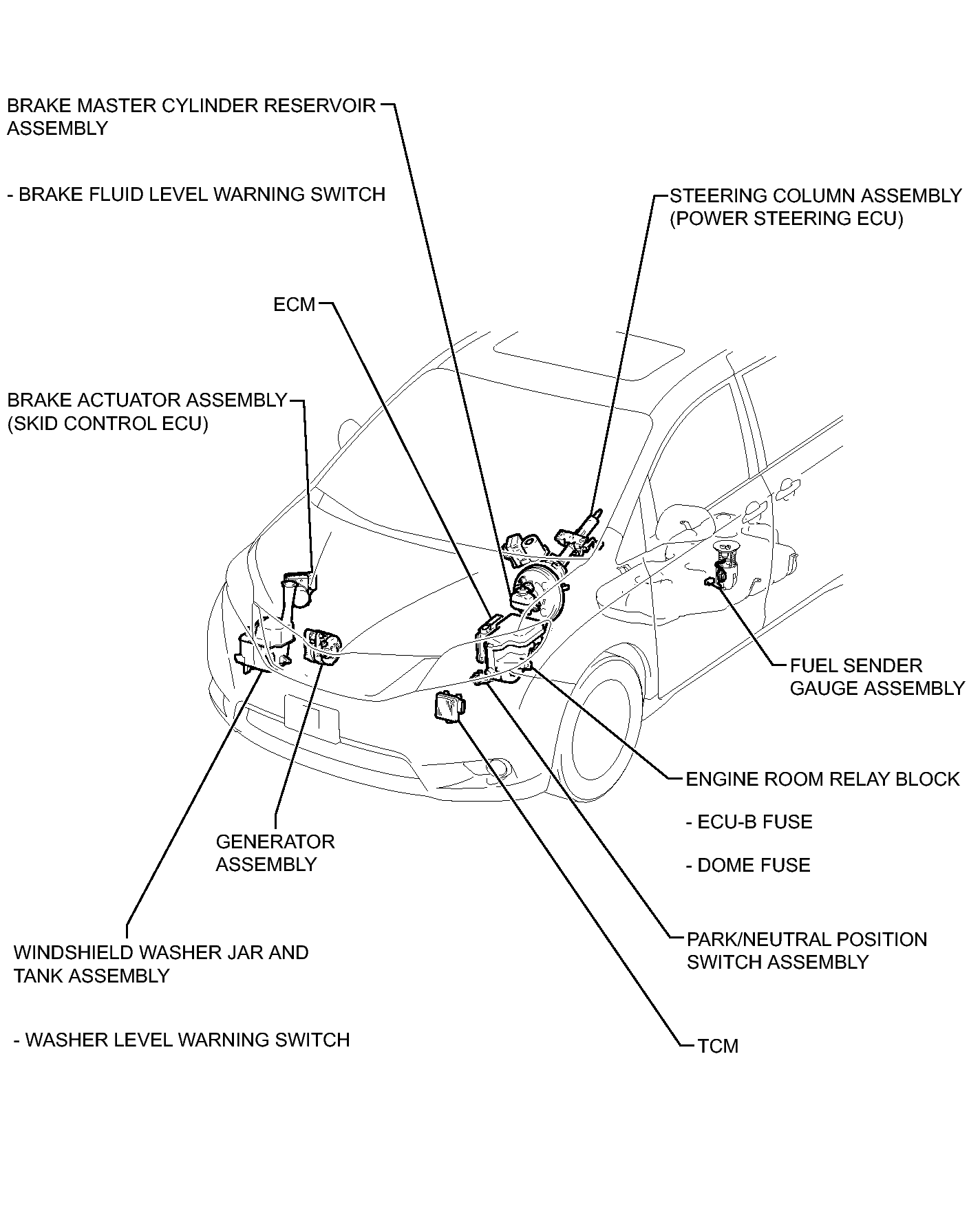

Fig 1: Meter / Gauge / Display Components Location (1 Of 5)
GTY296533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

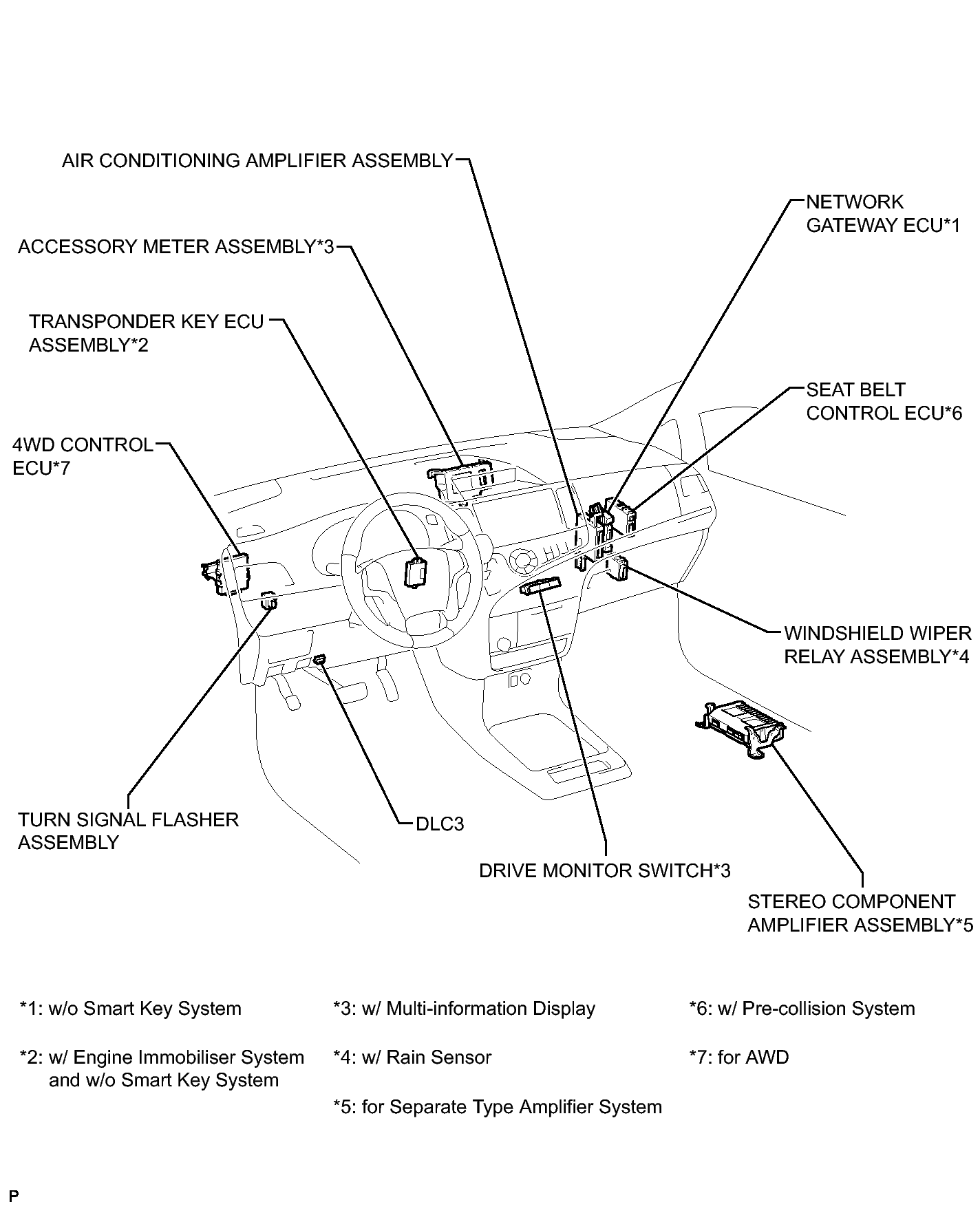

Fig 1: Meter / Gauge / Display Components Location (2 Of 5)
GTY302904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

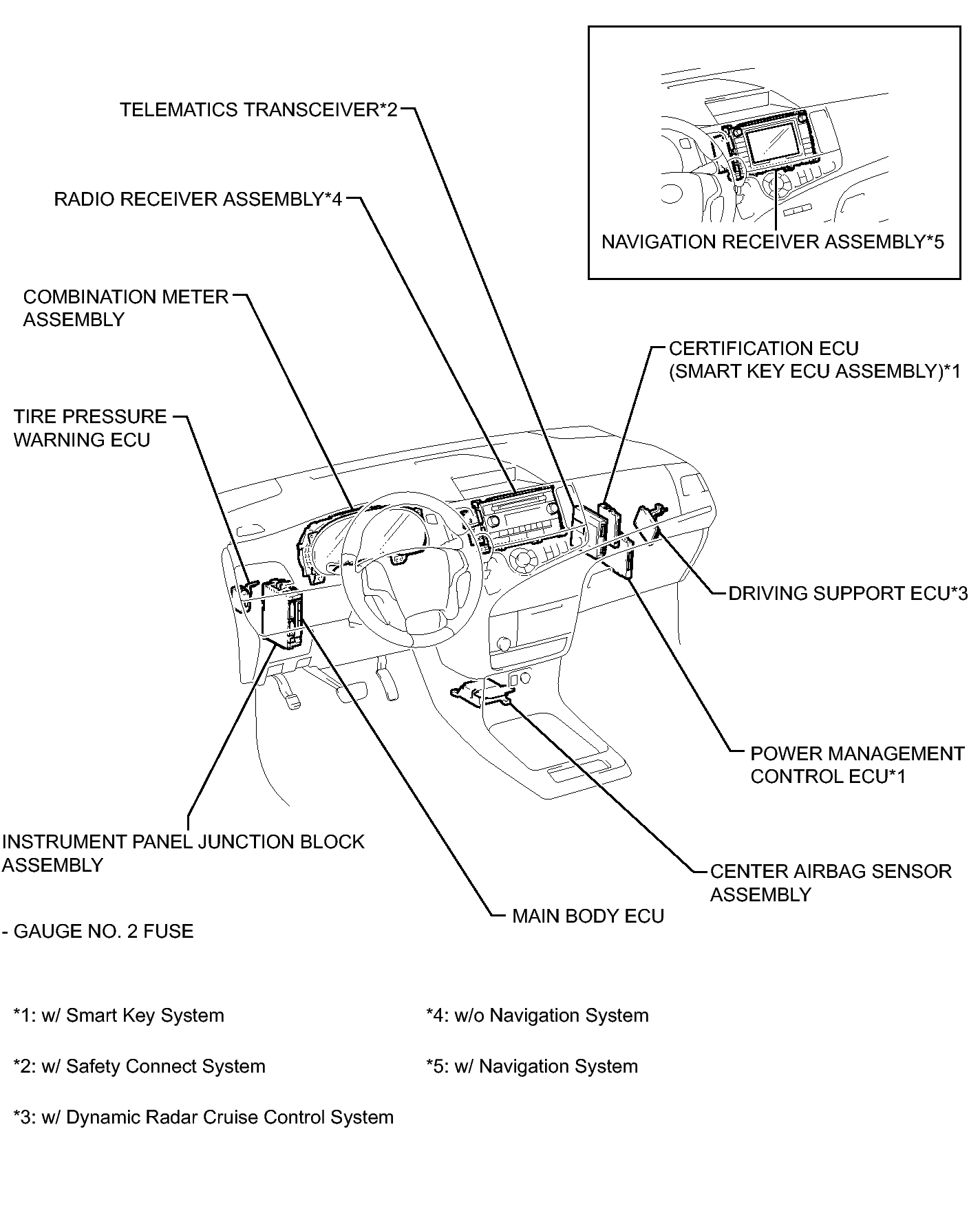

Fig 1: Meter / Gauge / Display Components Location (3 Of 5)
GTY304777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

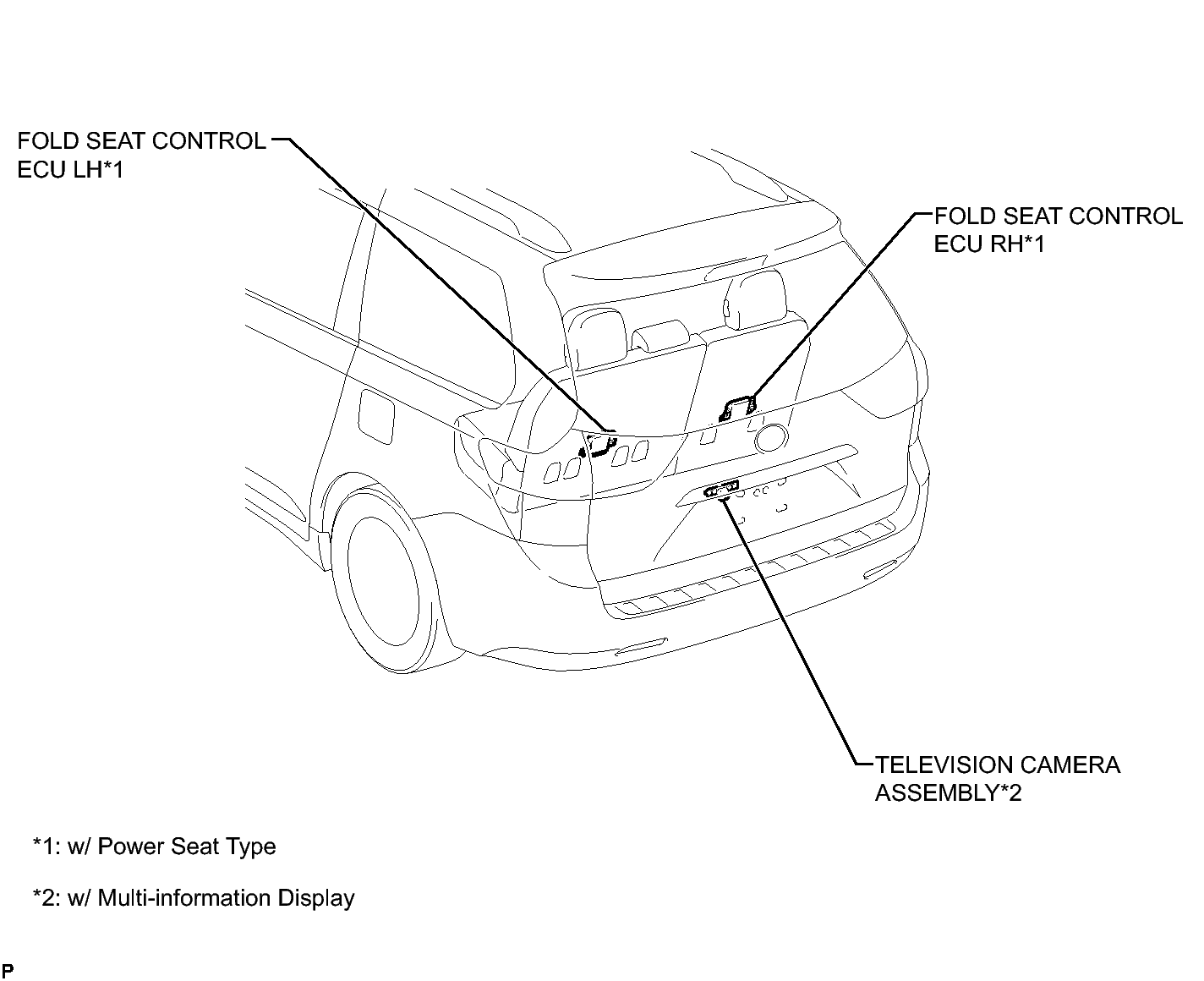

Fig 1: Meter / Gauge / Display Components Location (4 Of 5)
GTY302290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

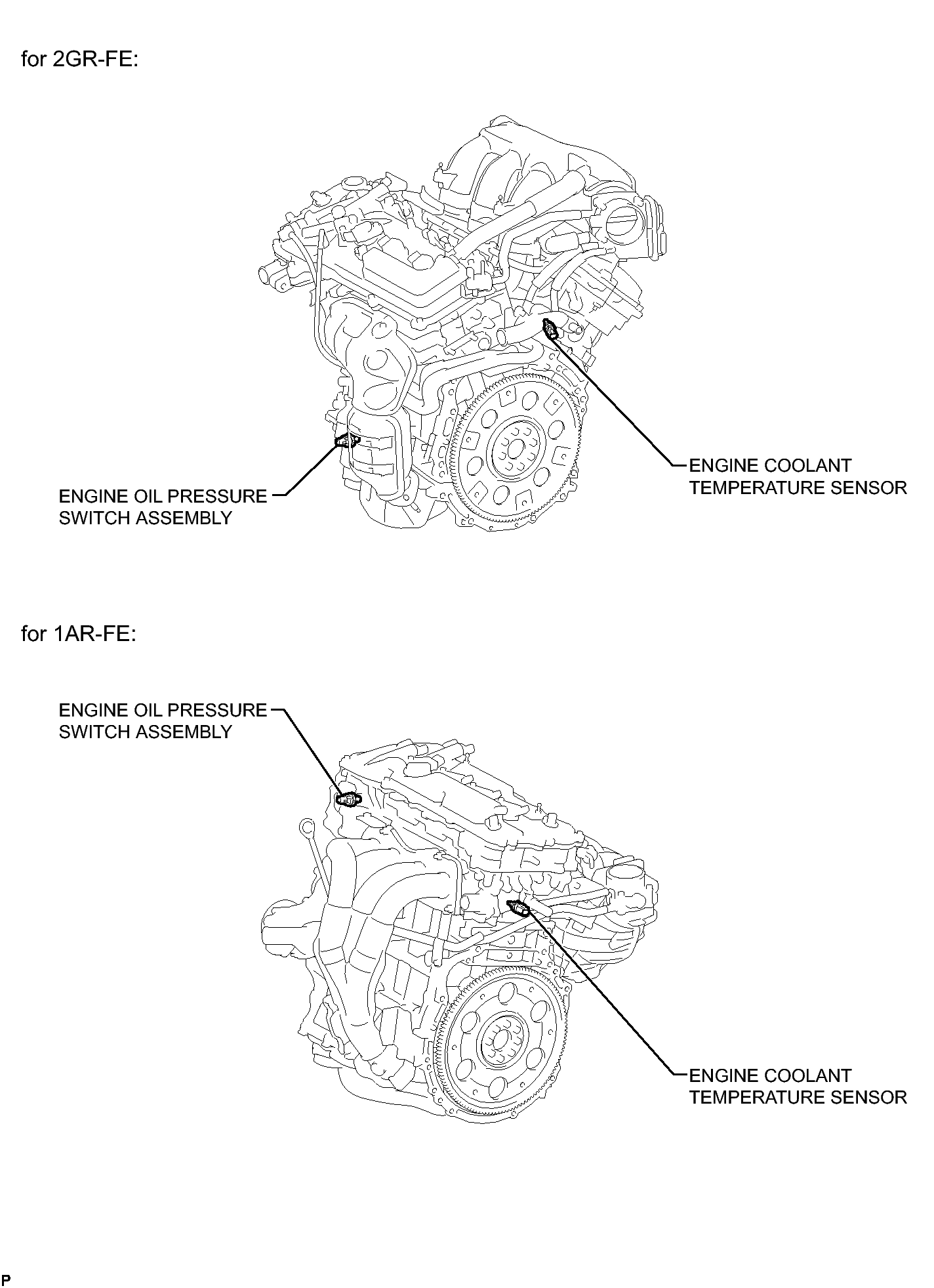

Fig 1: Meter / Gauge / Display Components Location (5 Of 5)
GTY305084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
