Meter Illumination is Always Dark
>>
Wiring Diagram
Meter Illumination is Always Dark: Wiring Diagram

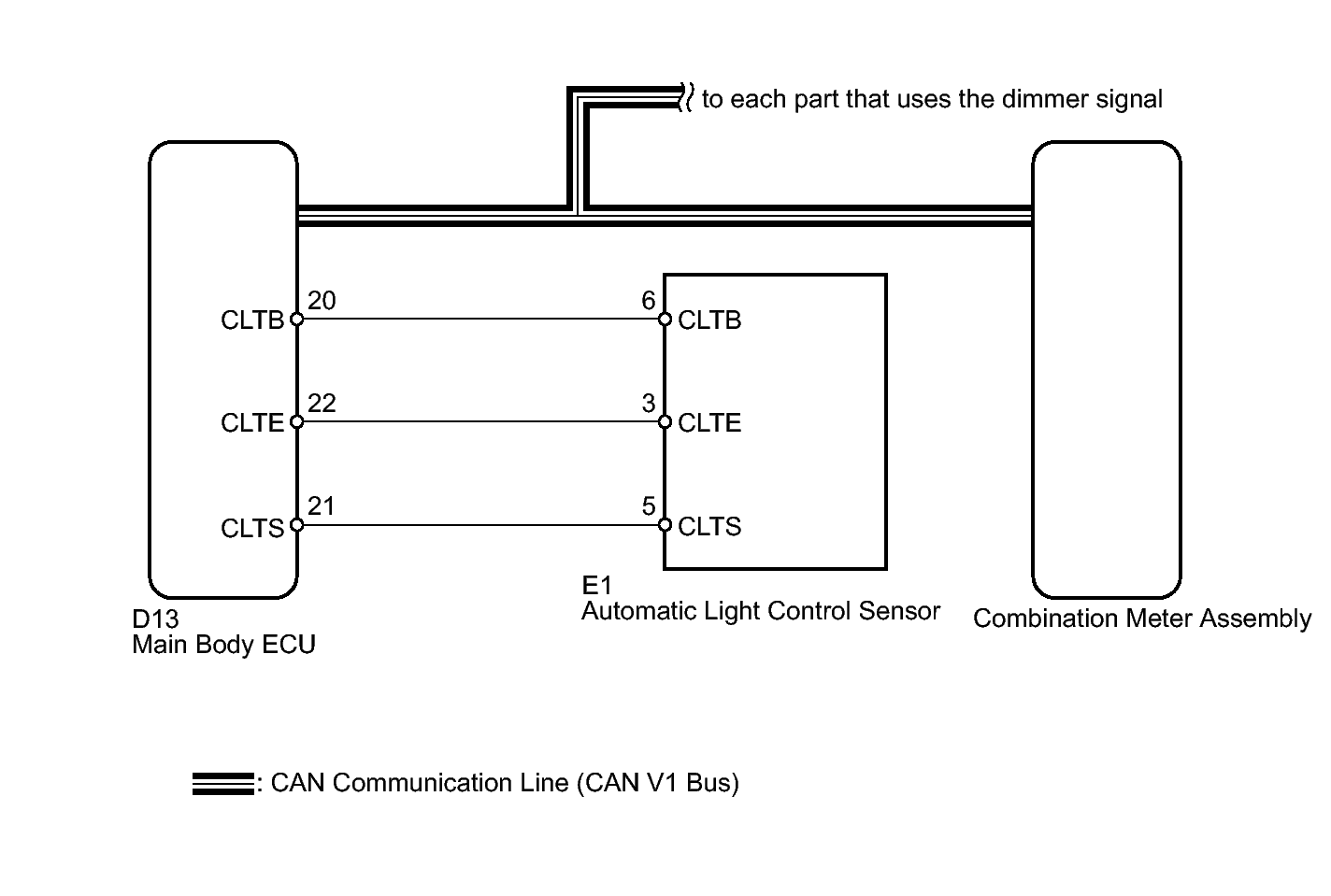

Fig 1: Meter Illumination Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
