Entire Combination Meter does not Operate: Wiring Diagram

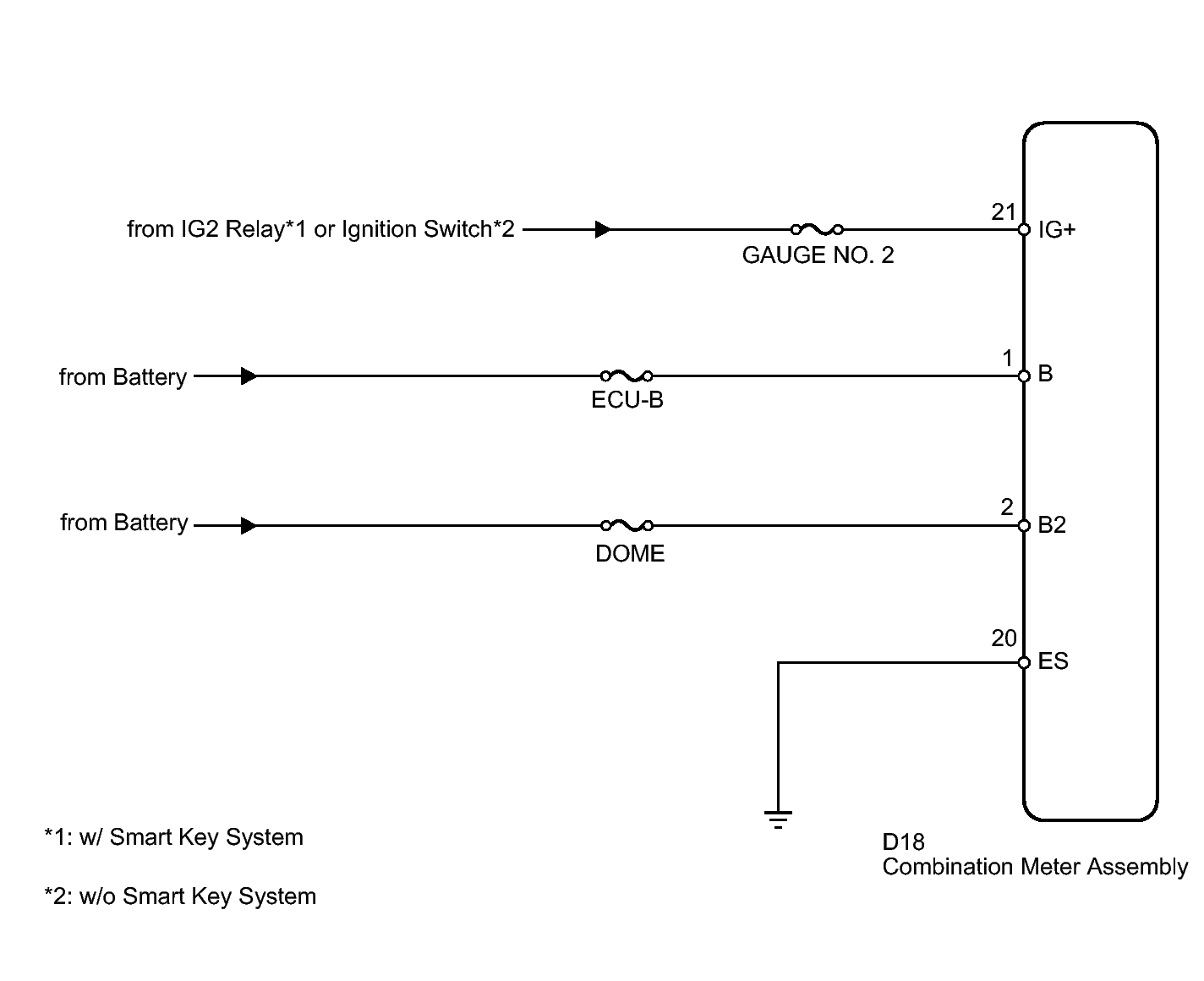

Fig 1: Combination Meter Circuit - Wiring Diagram
GTY298003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
