Rear No. 1 Seat

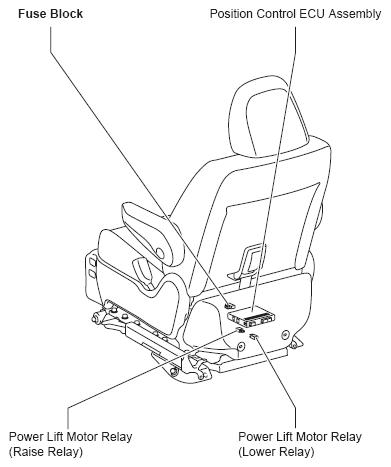

Fig 1: Seat Relay & Components Location
G08845986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Seat Relay Identification

RELAY DESCRIPTION
Power Lift Motor Relay (Raise Relay)
Power Lift Motor Relay (Lower Relay)
