Parts Location: Illustration

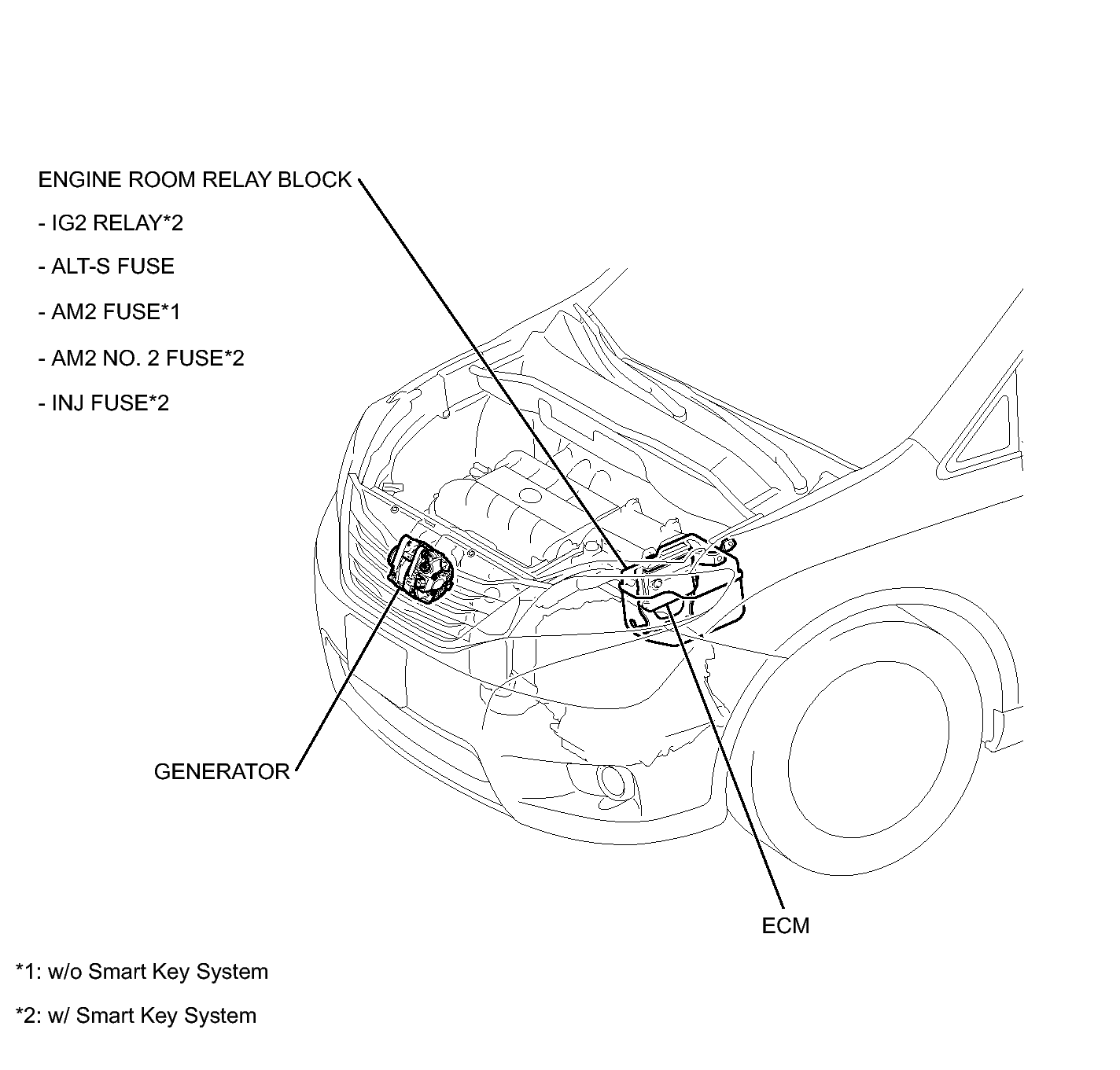

Fig 1: Charging System Components Location (1 Of 2)
GTY299561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

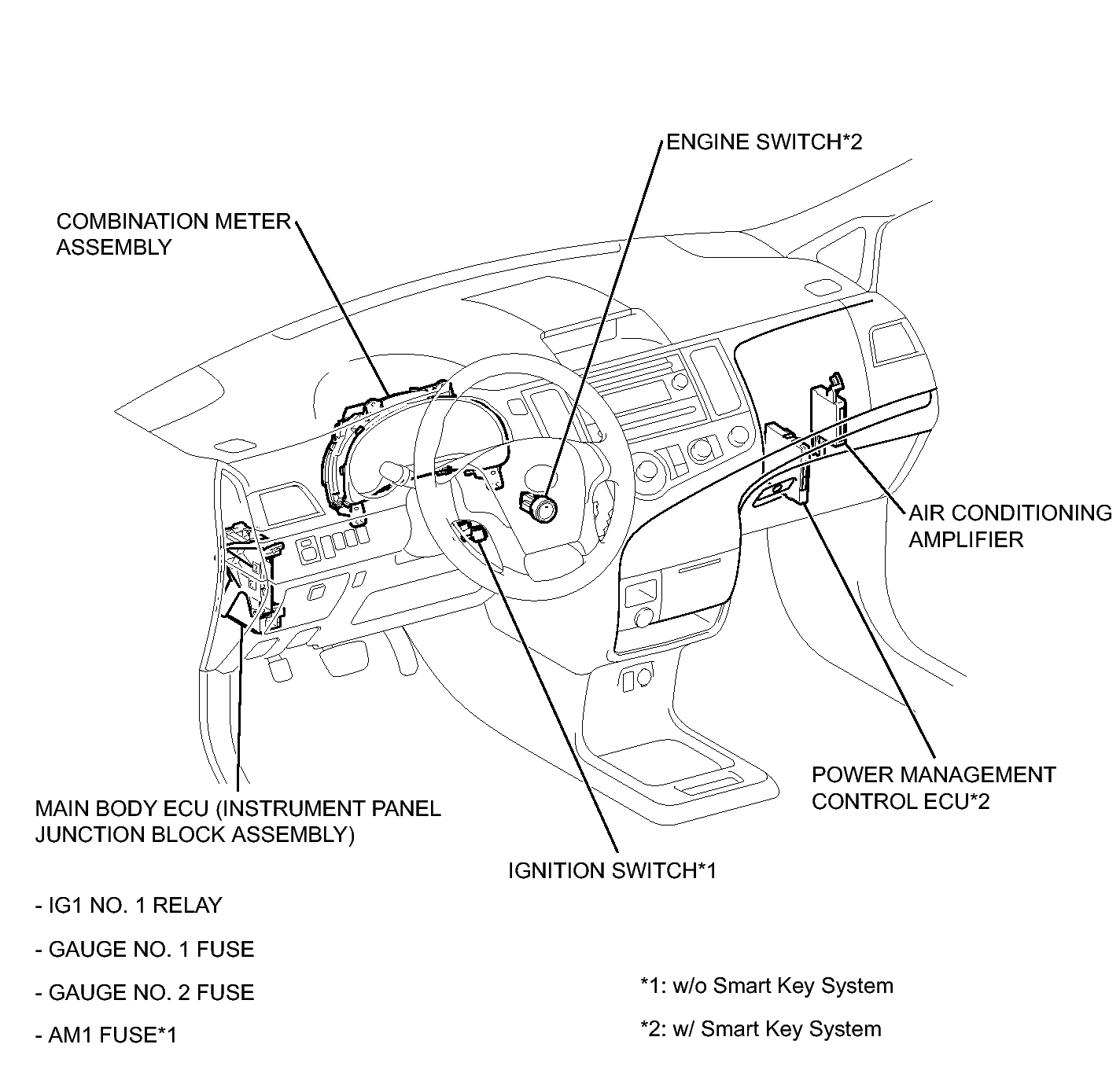

Fig 1: Charging System Components Location (2 Of 2)
GTY304079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
