Overall Electrical Wiring Diagram
>>
Safety Connect
Safety Connect

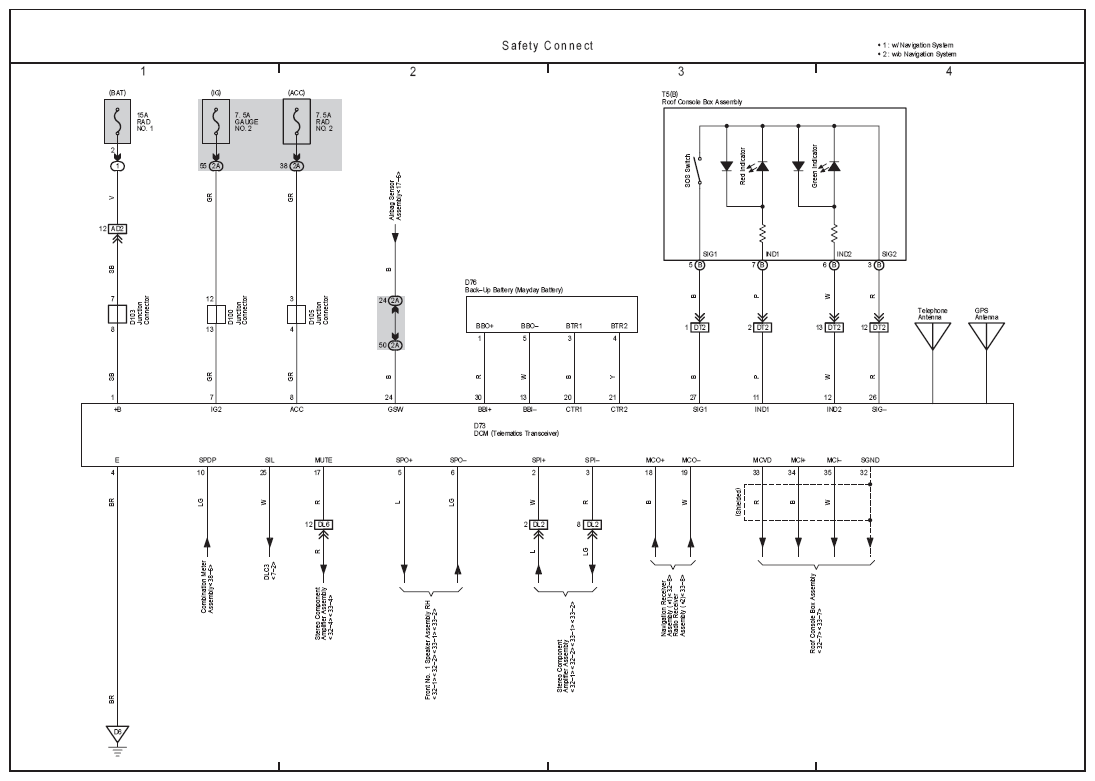

Fig 1: Safety Connect System Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
