Remote Control Mirror (w/o Seat Position Memory), Shift Lock

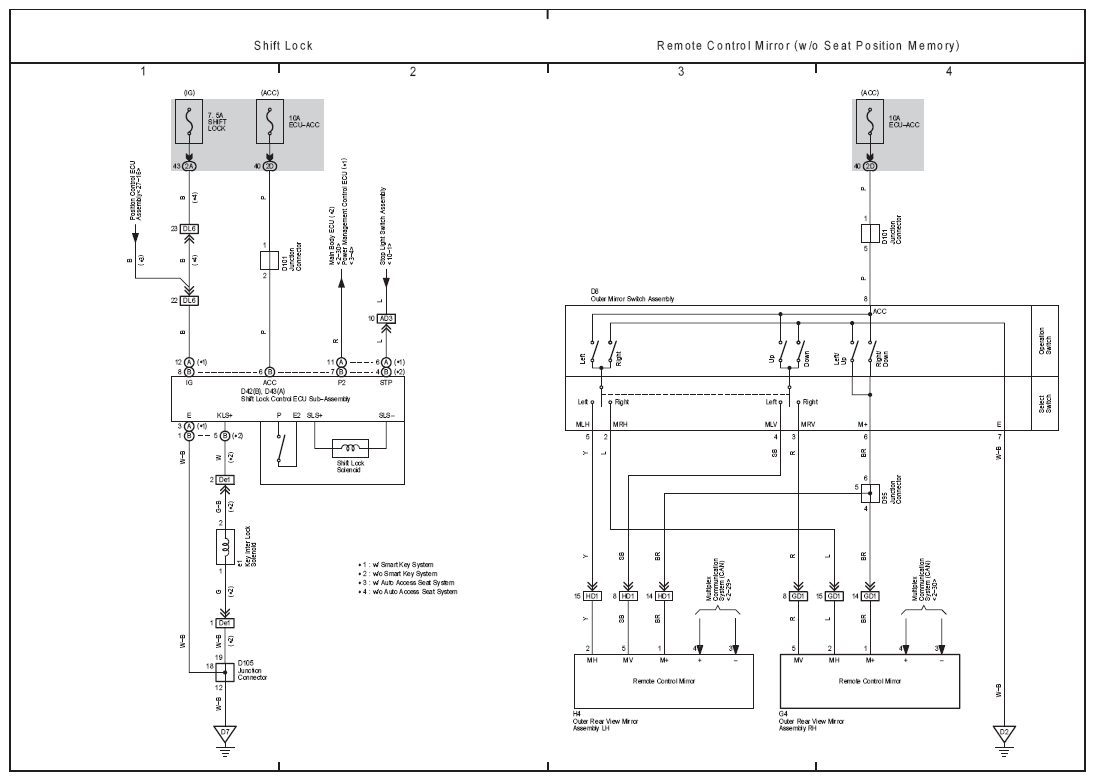

Fig 1: Remote Control Mirror (w/o Seat Position Memory) And Shift Lock Electrical Wiring Diagram
G08847051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
