Remote Control Mirror (w/Seat Position Memory)

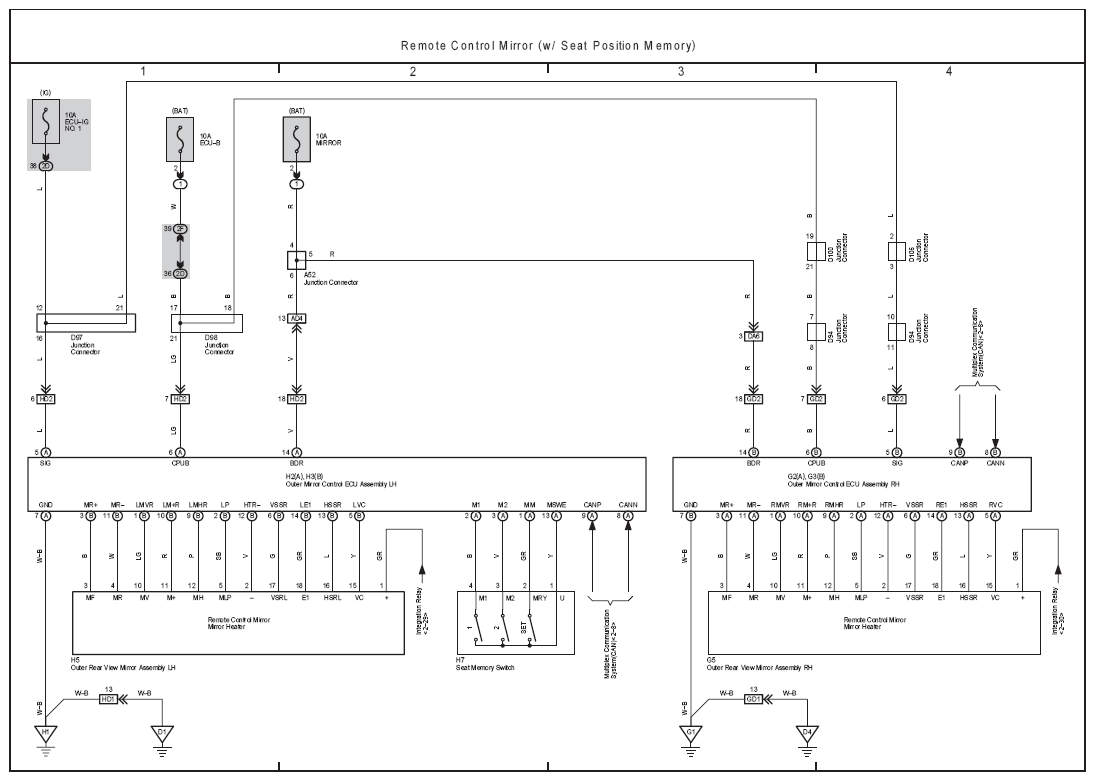

Fig 1: Remote Control Mirror Electrical Wiring Diagram (w/Seat Position Memory)

G08847050

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
