Overall Electrical Wiring Diagram
>>
Pre Collision System
Pre Collision System

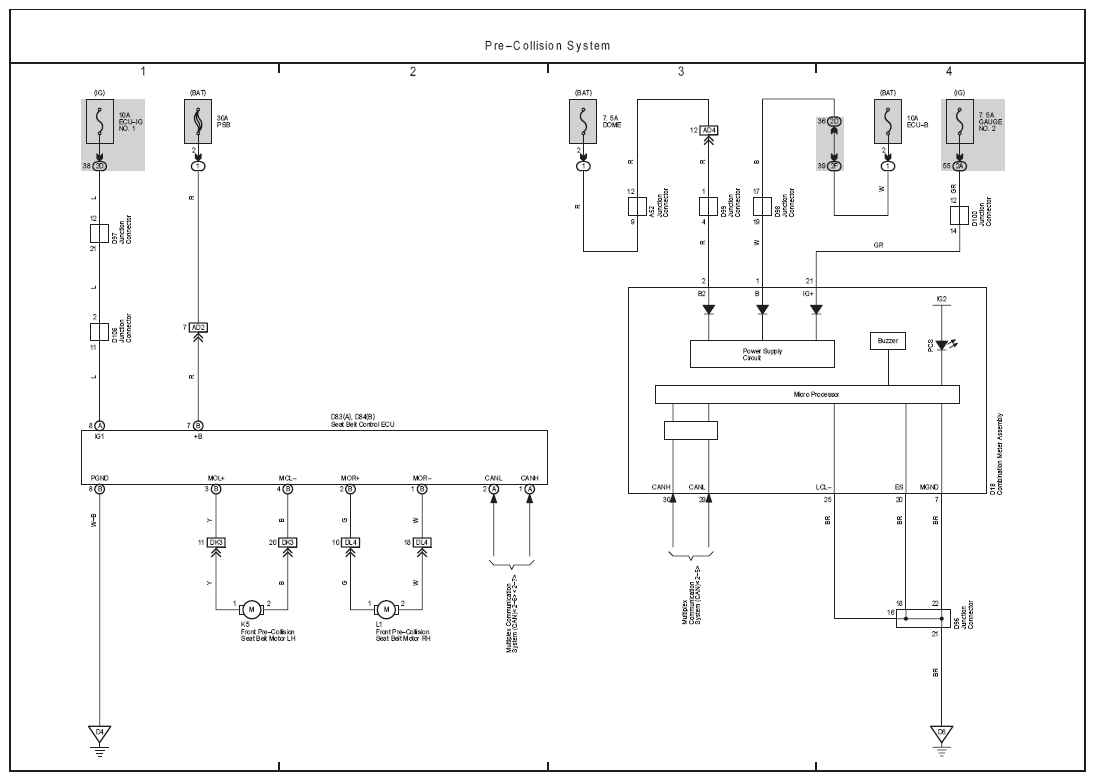

Fig 1: Pre Collision System Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
