Power Slide Door

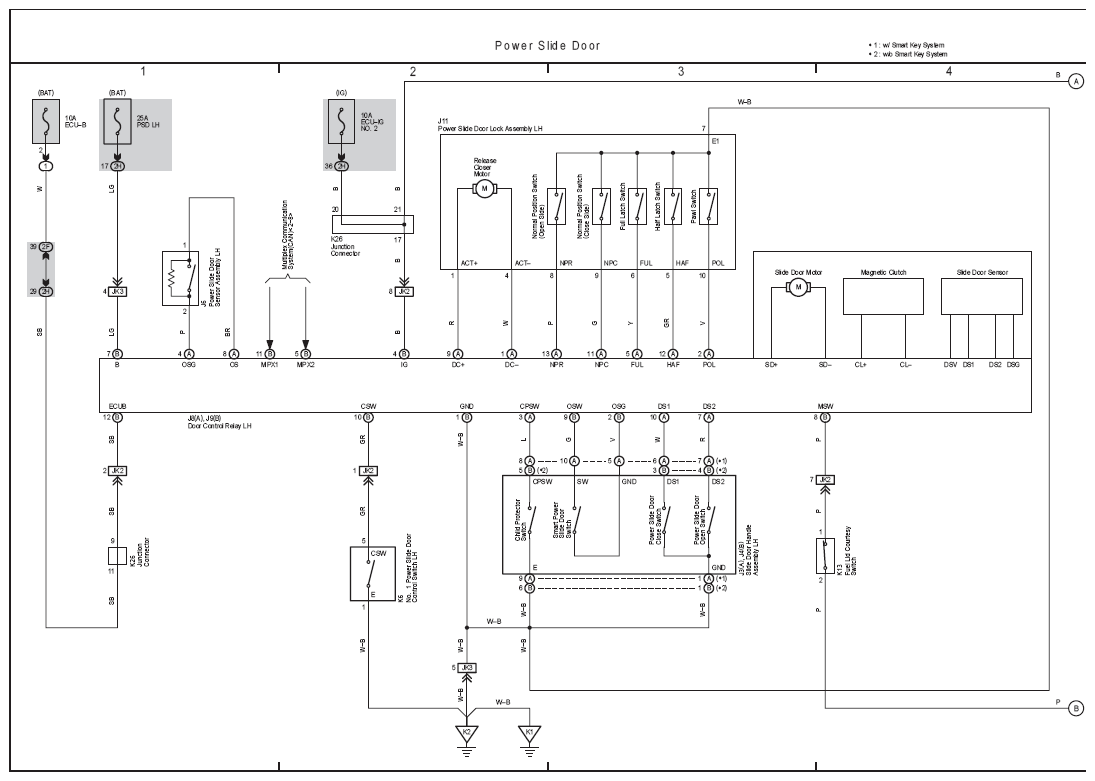

Fig 1: Power Slide Door Electrical Wiring Diagram (1 Of 2)
G08847037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

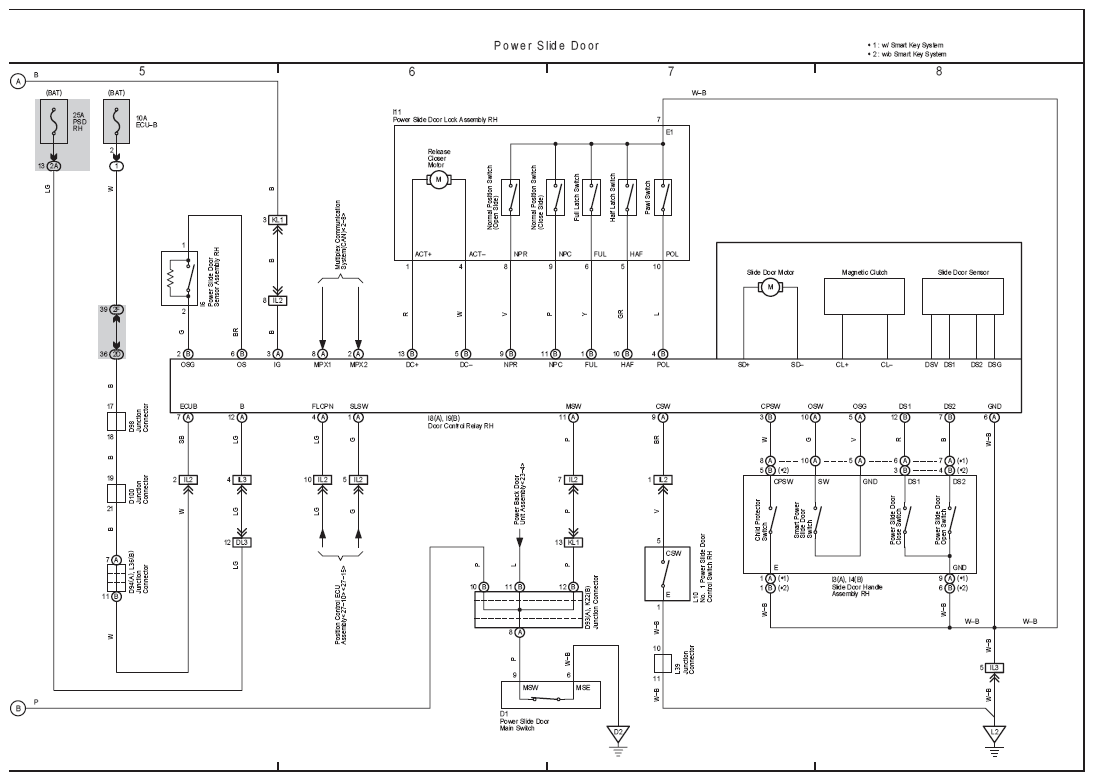

Fig 2: Power Slide Door Electrical Wiring Diagram (2 Of 2)
G08847038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
