Power Seat (Driver's Seat w/Seat Position Memory)

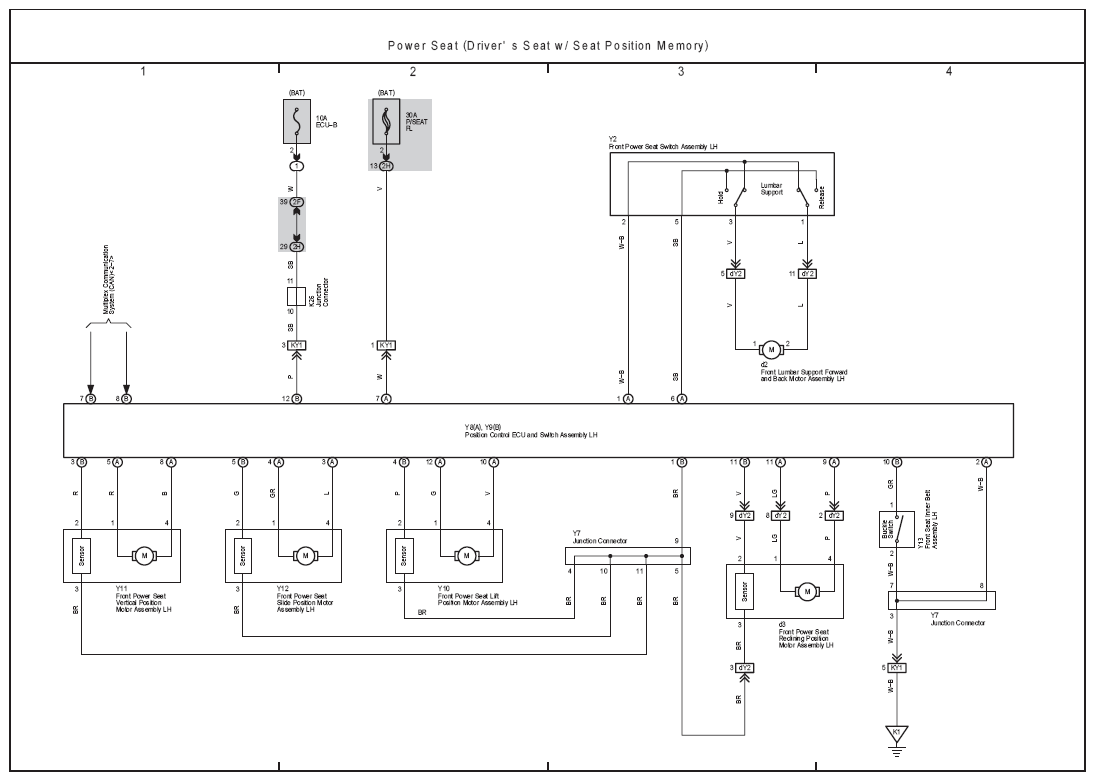

Fig 1: Power Seat System Electrical Wiring Diagram (Driver's Seat w/ Seat Position Memory)

G08847040

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
