Power Rear No.2 Seat With Stowing

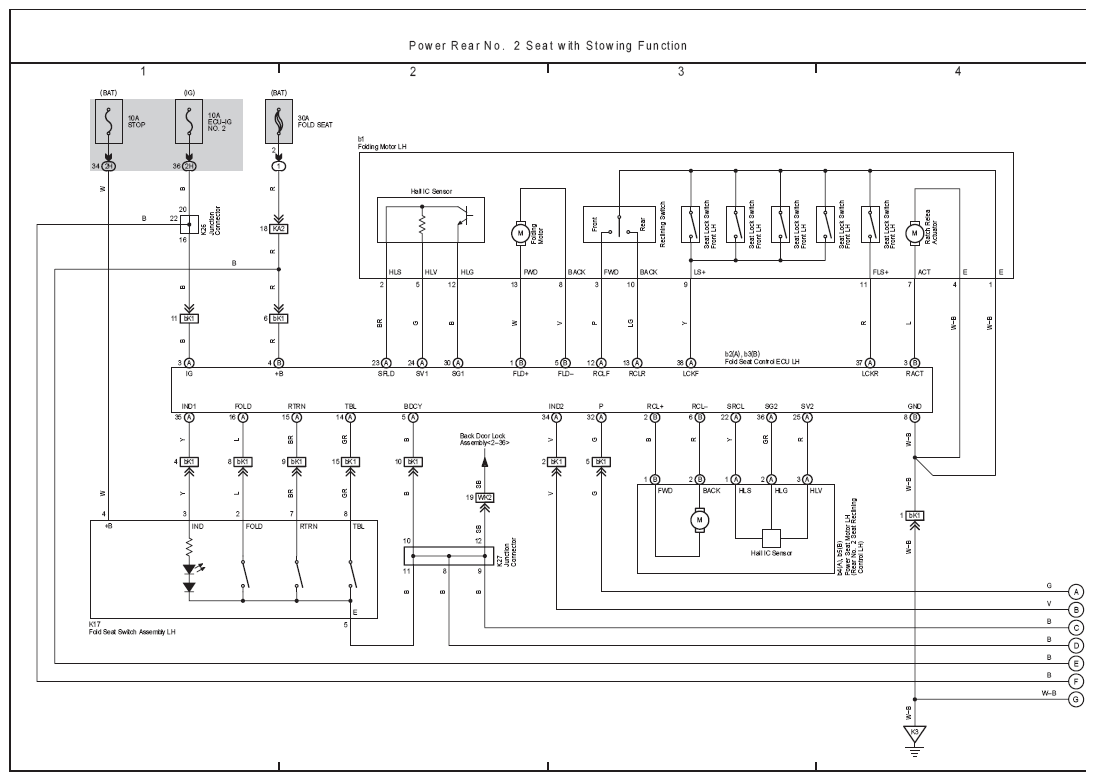

Fig 1: Power Rear No.2 Seat With Stowing Function Electrical Wiring Diagram (1 Of 3)
G08847042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

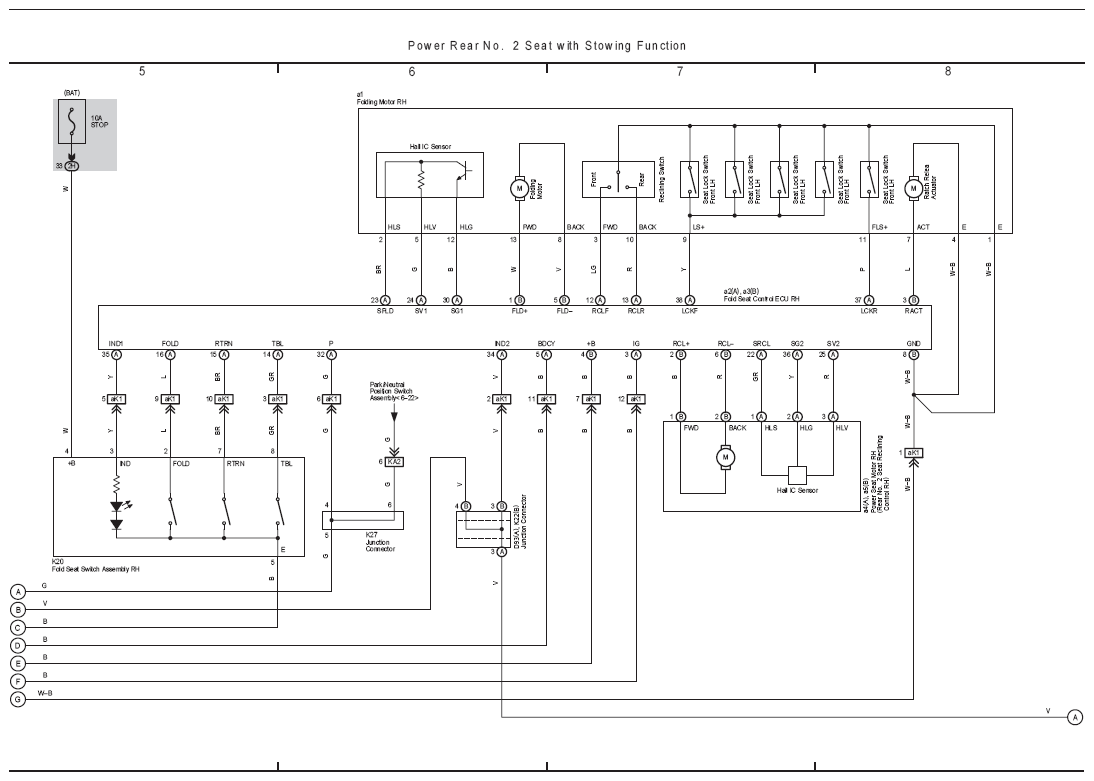

Fig 2: Power Rear No.2 Seat With Stowing Function Electrical Wiring Diagram (2 Of 3)
G08847043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

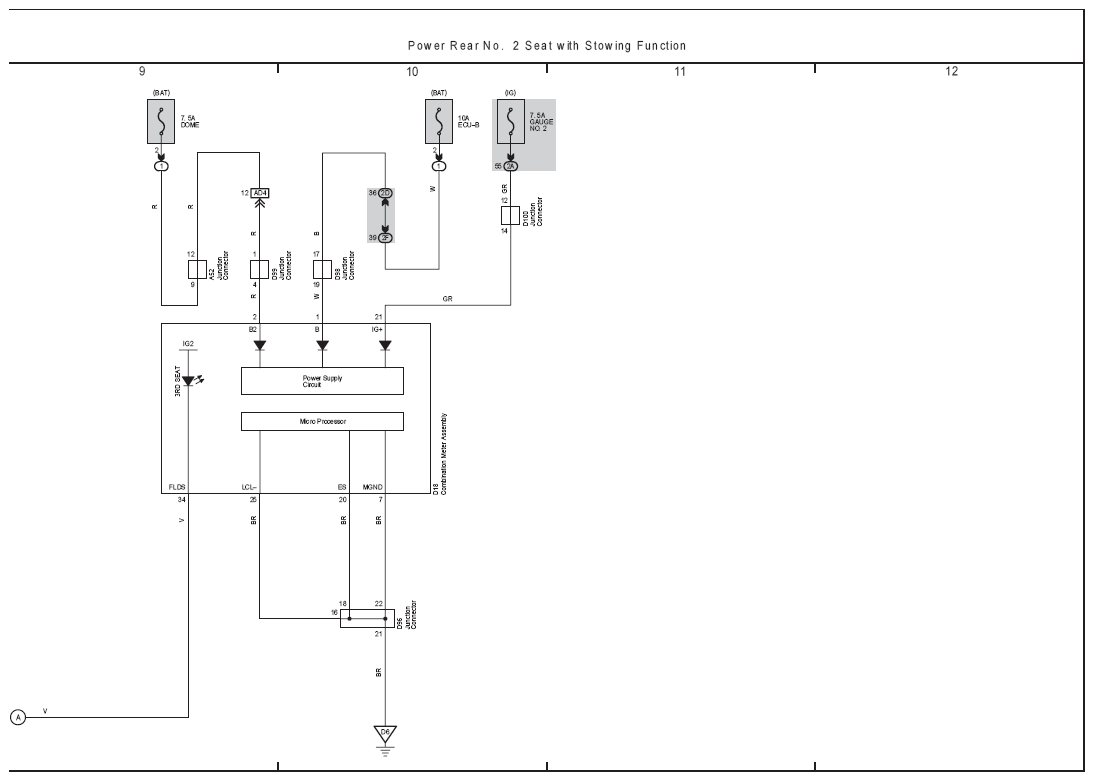

Fig 3: Power Rear No.2 Seat With Stowing Function Electrical Wiring Diagram (3 Of 3)
G08847044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
