Multiplex Communication System (CAN)

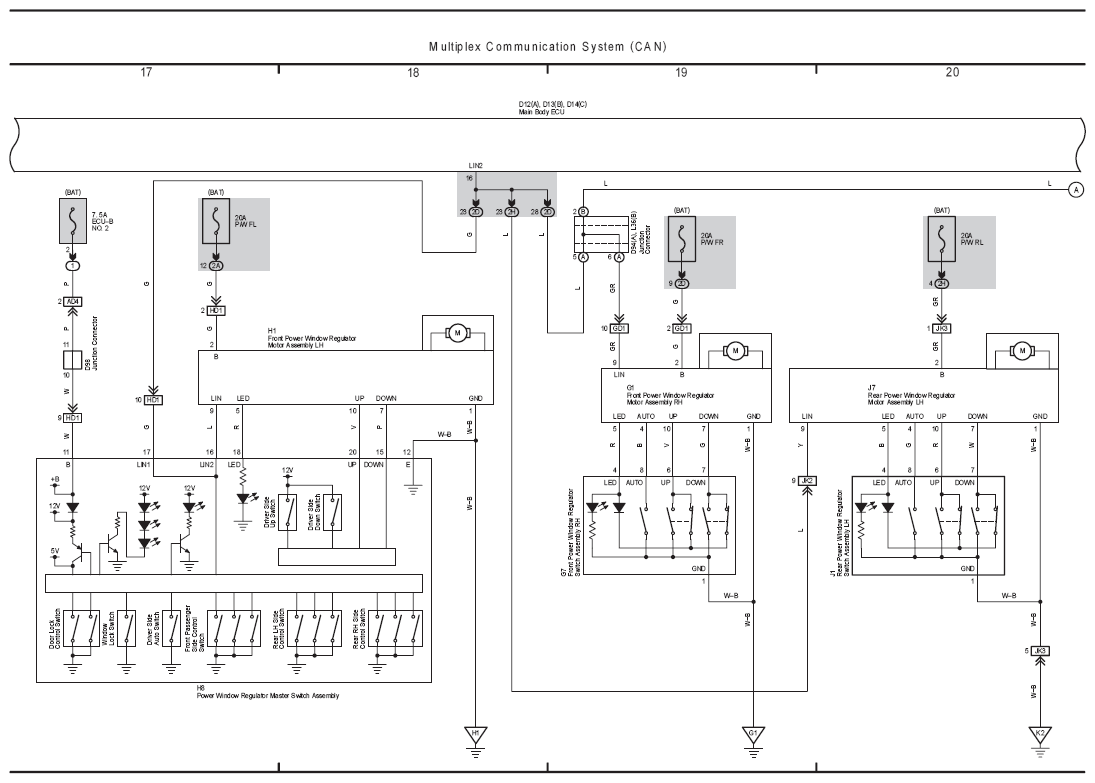

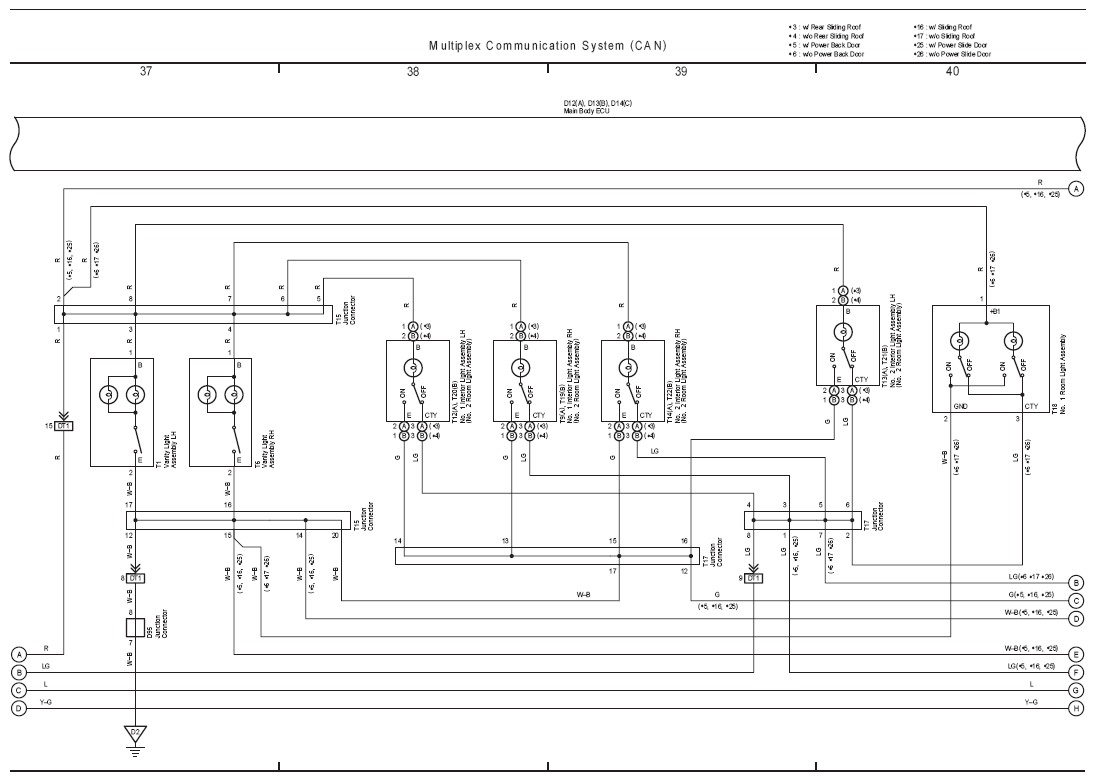

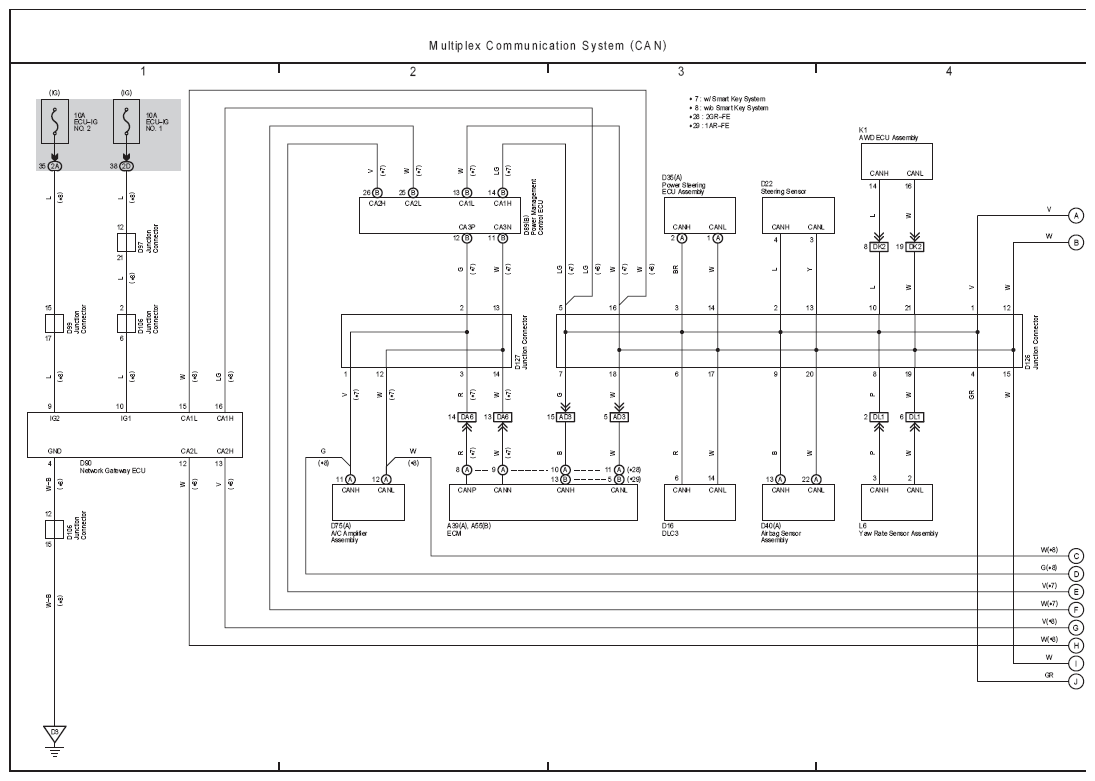

Fig 1: Multiplex Communication System Electrical Wiring Diagram (CAN; 1 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

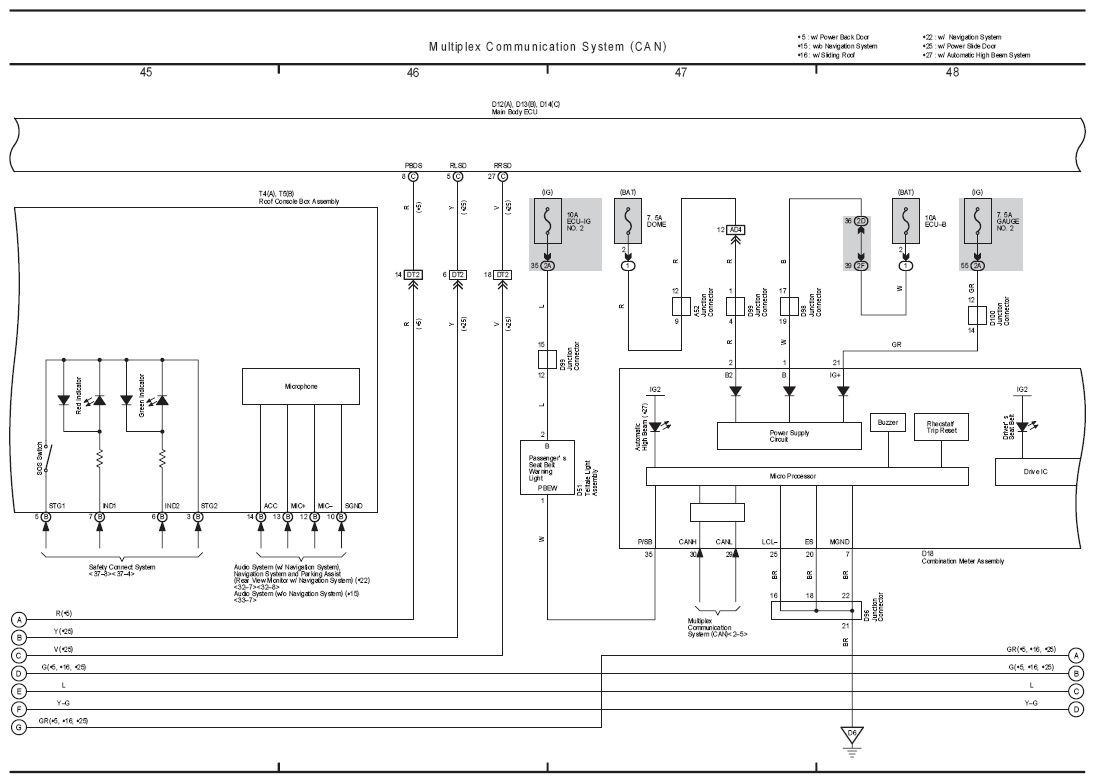

Fig 2: Multiplex Communication System Electrical Wiring Diagram (CAN; 2 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

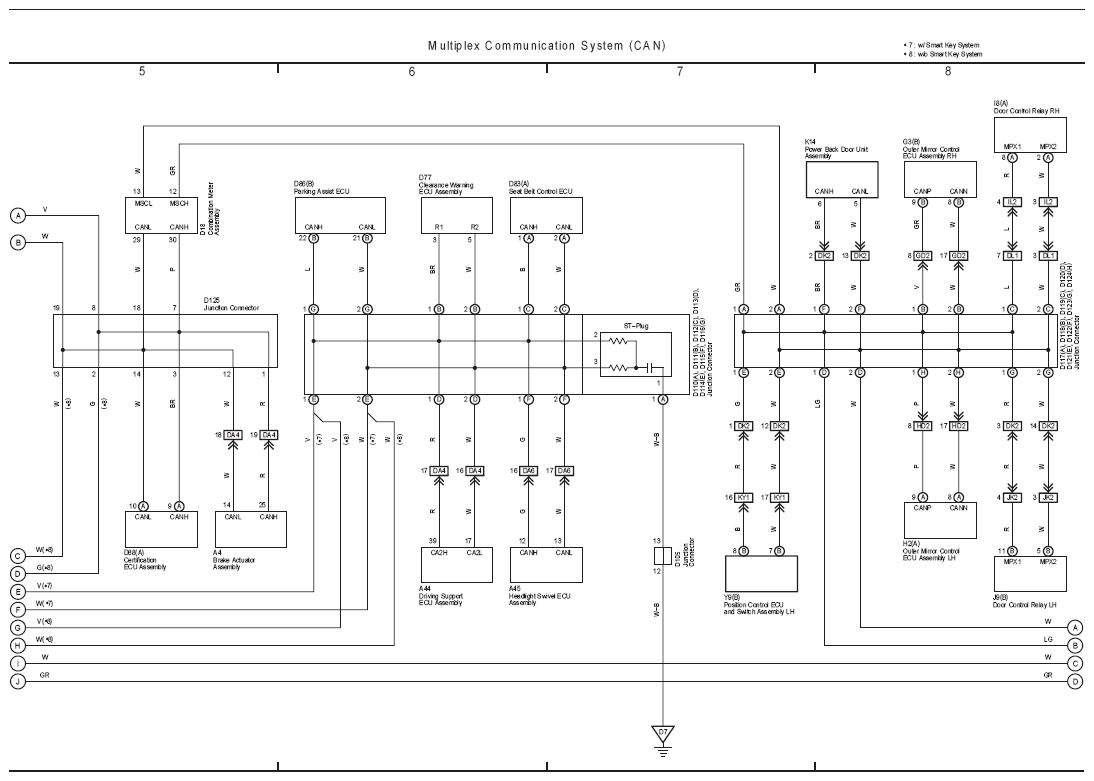

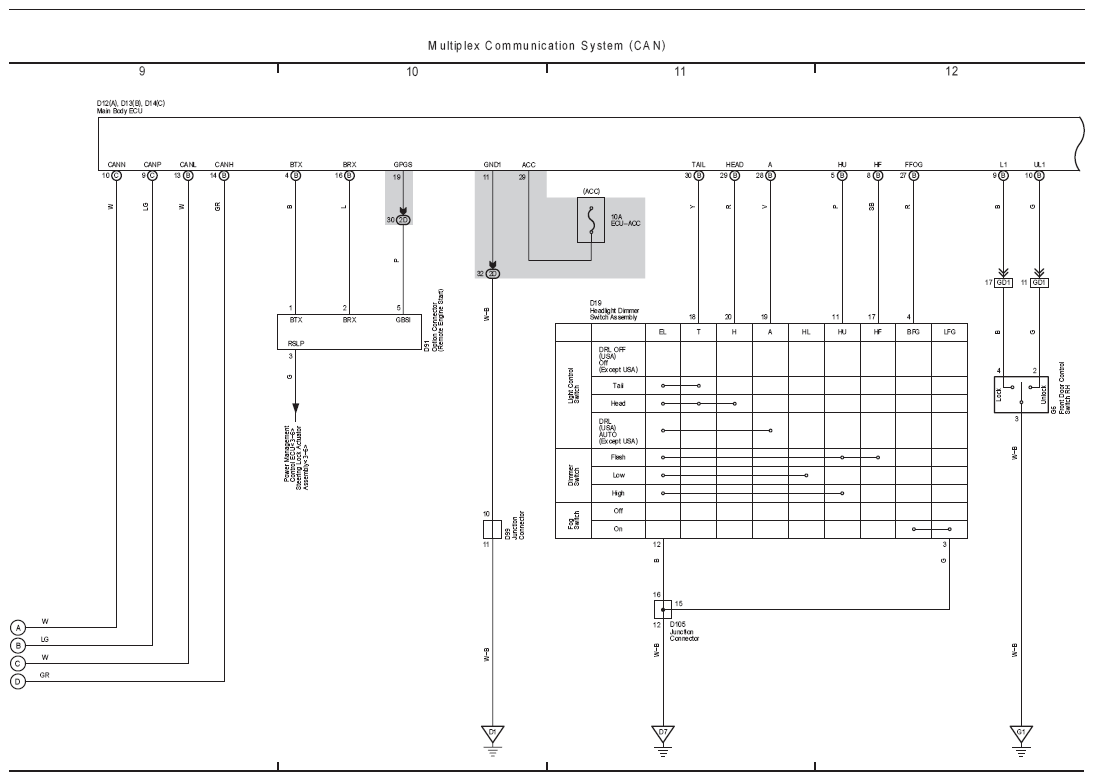

Fig 3: Multiplex Communication System Electrical Wiring Diagram (CAN; 3 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

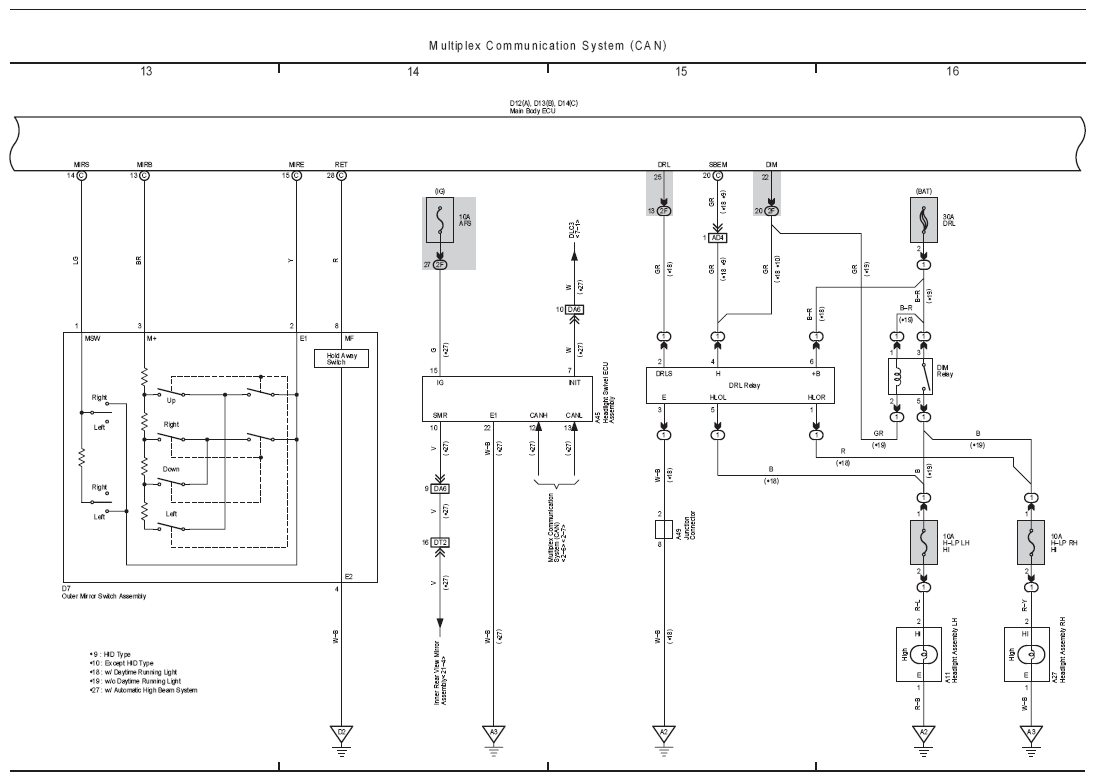

Fig 4: Multiplex Communication System Electrical Wiring Diagram (CAN; 4 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

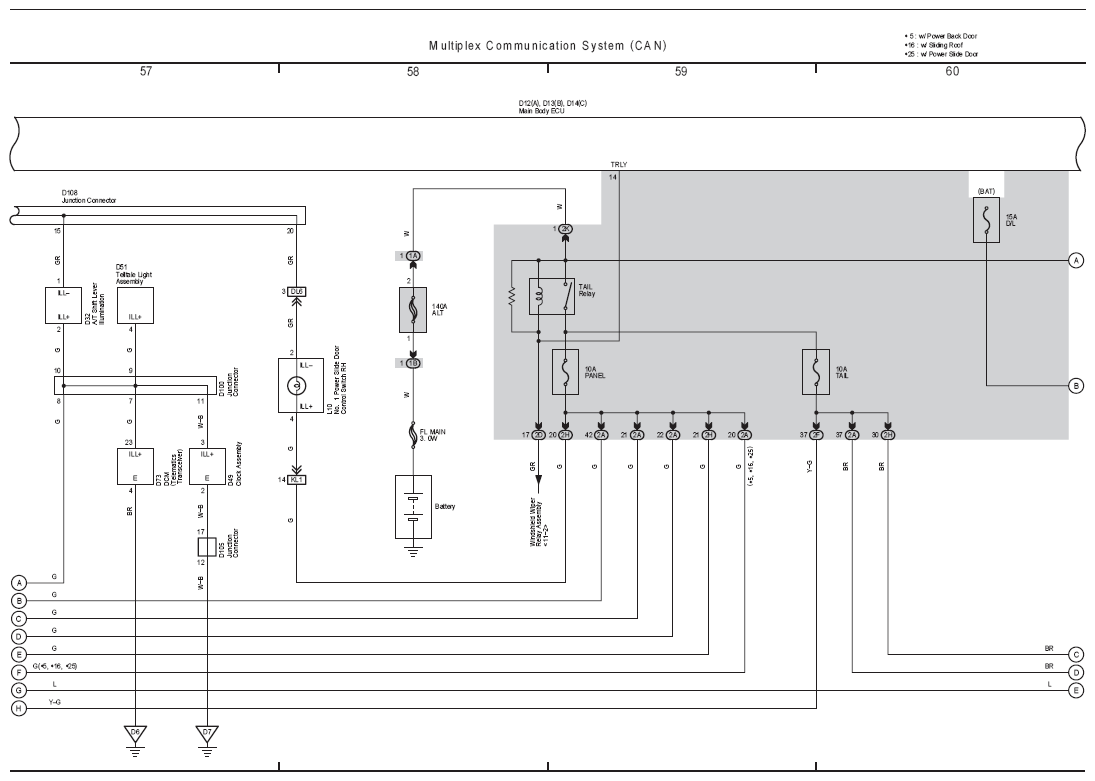

Fig 5: Multiplex Communication System Electrical Wiring Diagram (CAN; 5 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

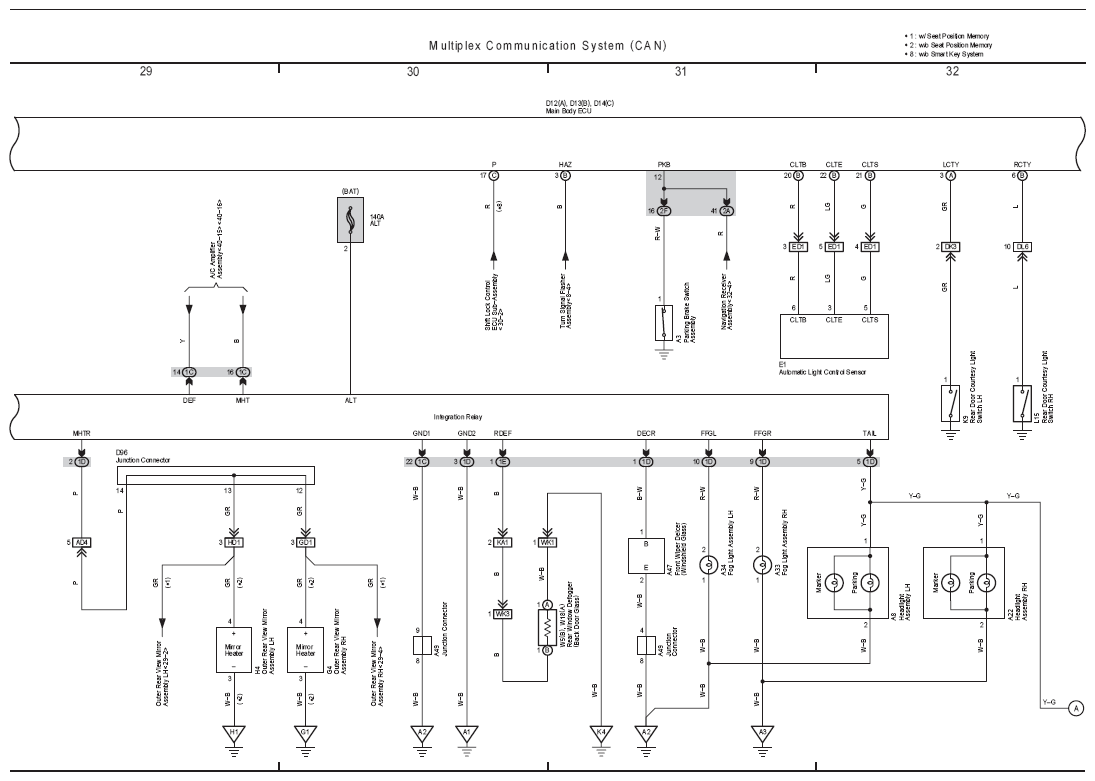

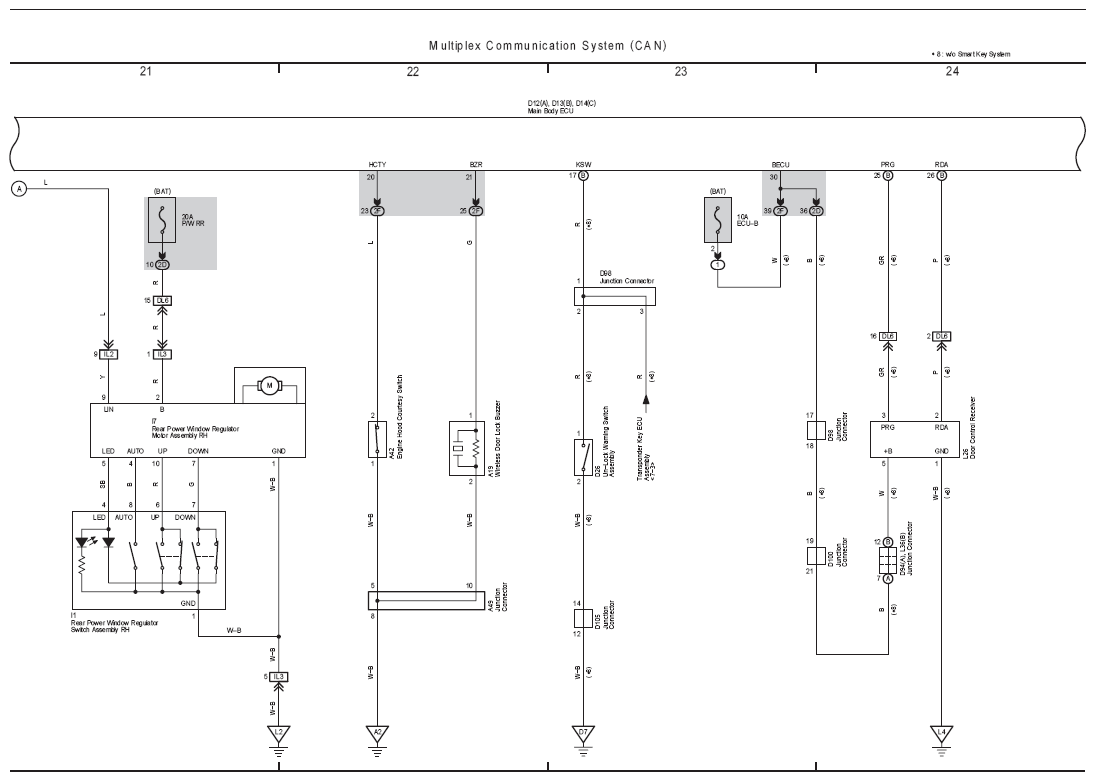

Fig 6: Multiplex Communication System Electrical Wiring Diagram (CAN; 6 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

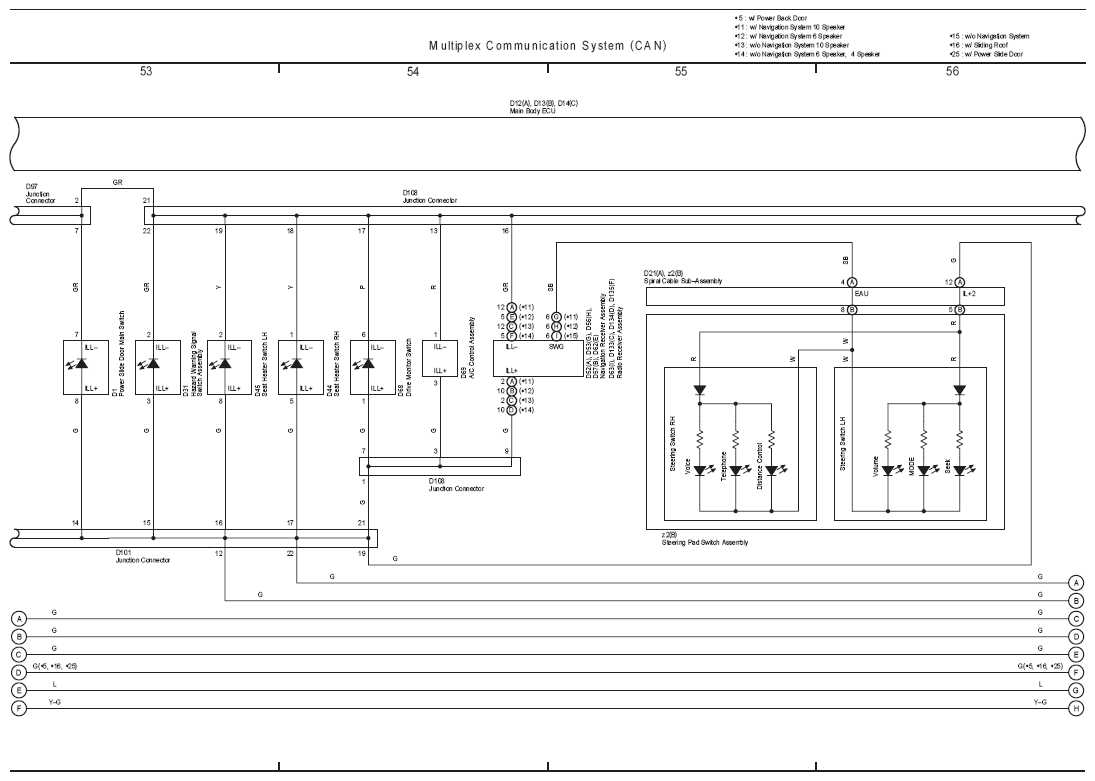

Fig 7: Multiplex Communication System Electrical Wiring Diagram (CAN; 7 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

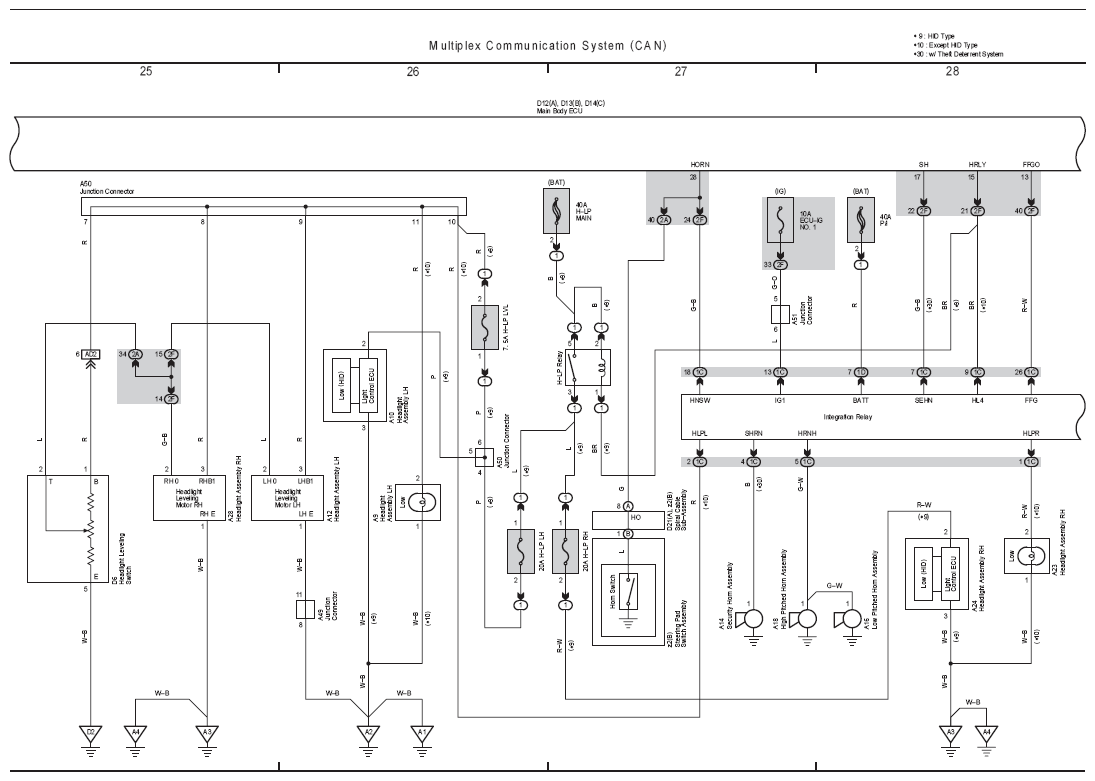

Fig 8: Multiplex Communication System Electrical Wiring Diagram (CAN; 8 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

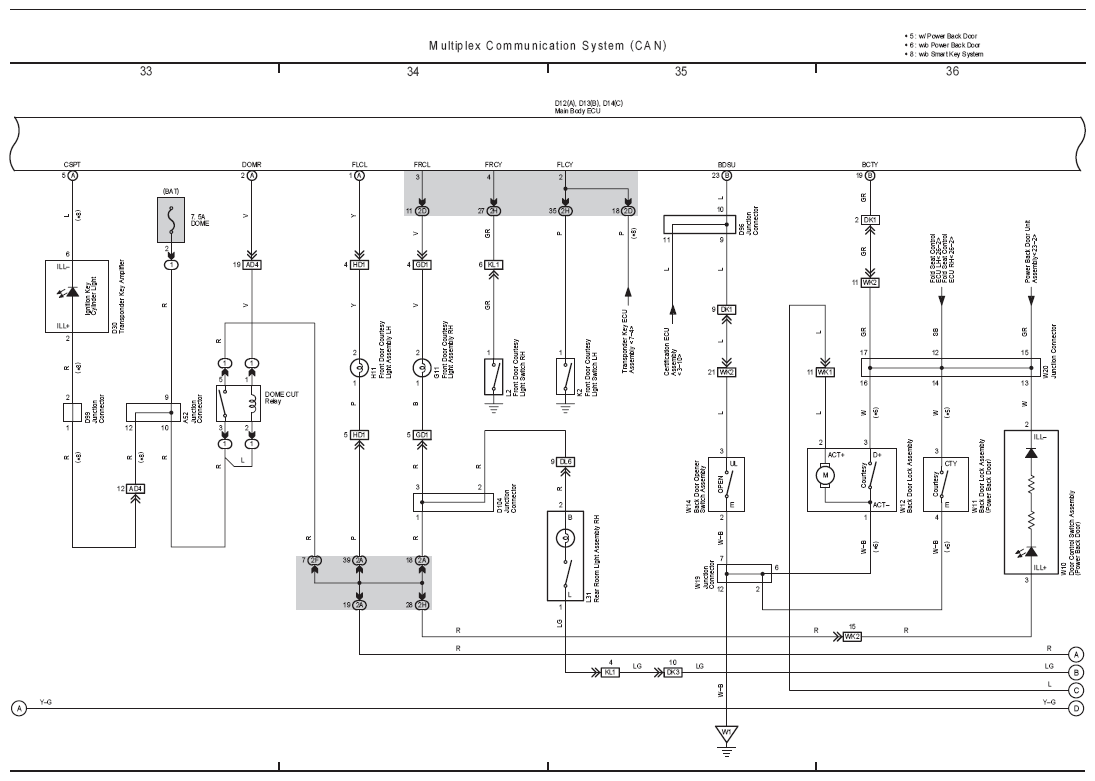

Fig 9: Multiplex Communication System Electrical Wiring Diagram (CAN; 9 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Multiplex Communication System Electrical Wiring Diagram (CAN; 10 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

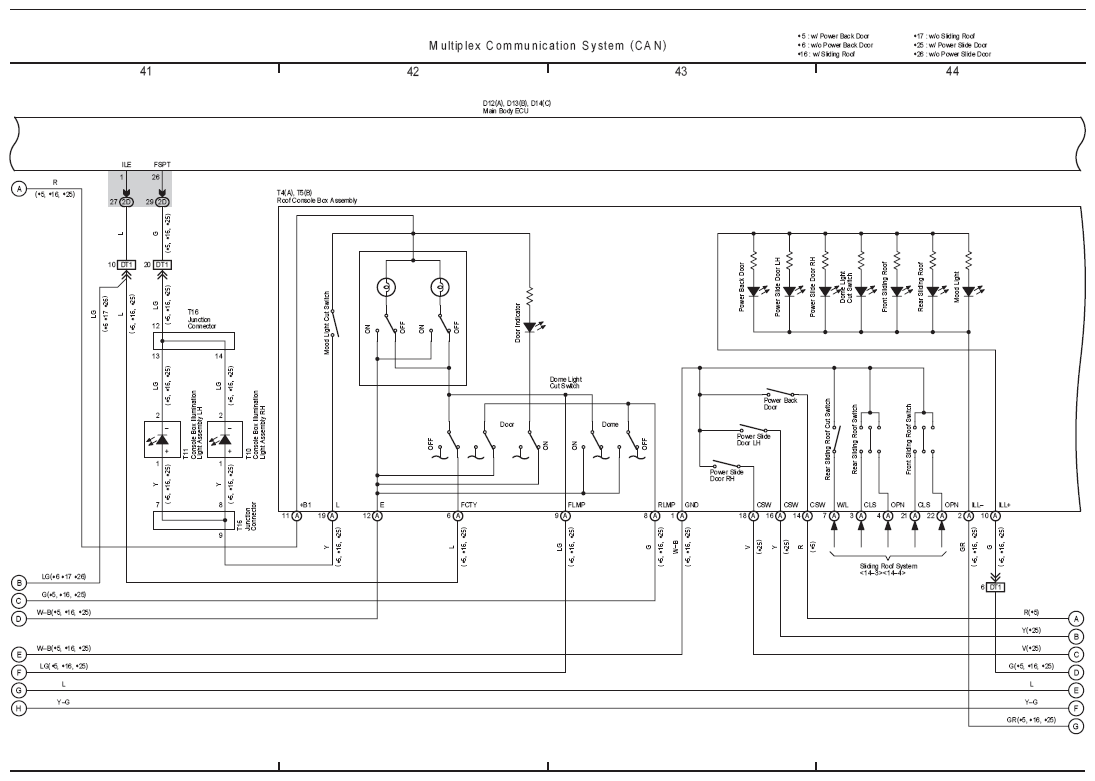

Fig 11: Multiplex Communication System Electrical Wiring Diagram (CAN; 11 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Multiplex Communication System Electrical Wiring Diagram (CAN; 12 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

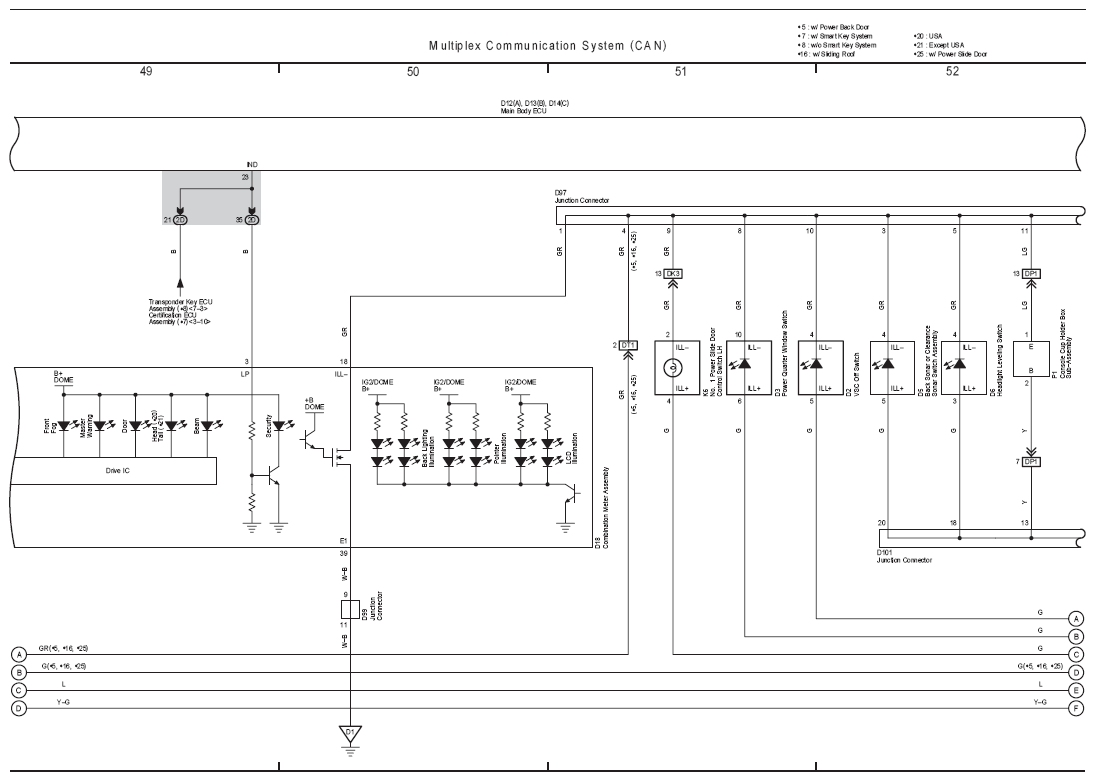

Fig 13: Multiplex Communication System Electrical Wiring Diagram (CAN; 13 Of 18)

Fig 14: Multiplex Communication System Electrical Wiring Diagram (CAN; 14 Of 18)

Fig 15: Multiplex Communication System Electrical Wiring Diagram (CAN; 15 Of 18)

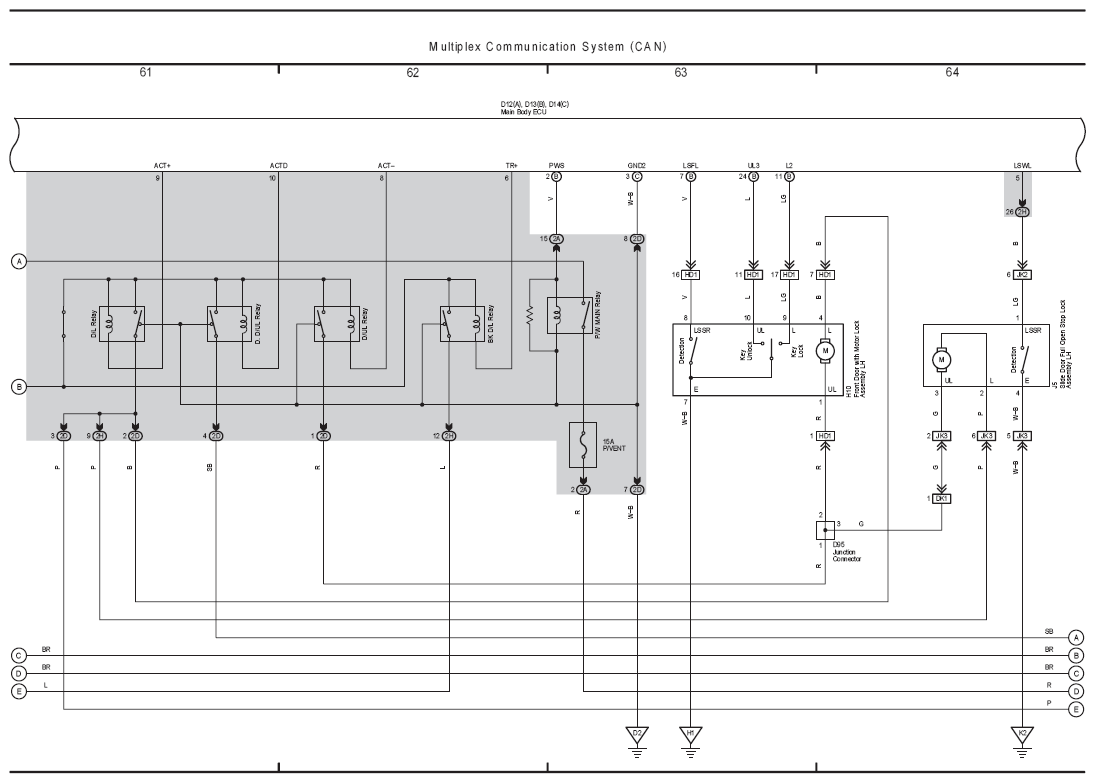

Fig 16: Multiplex Communication System Electrical Wiring Diagram (CAN; 16 Of 18)

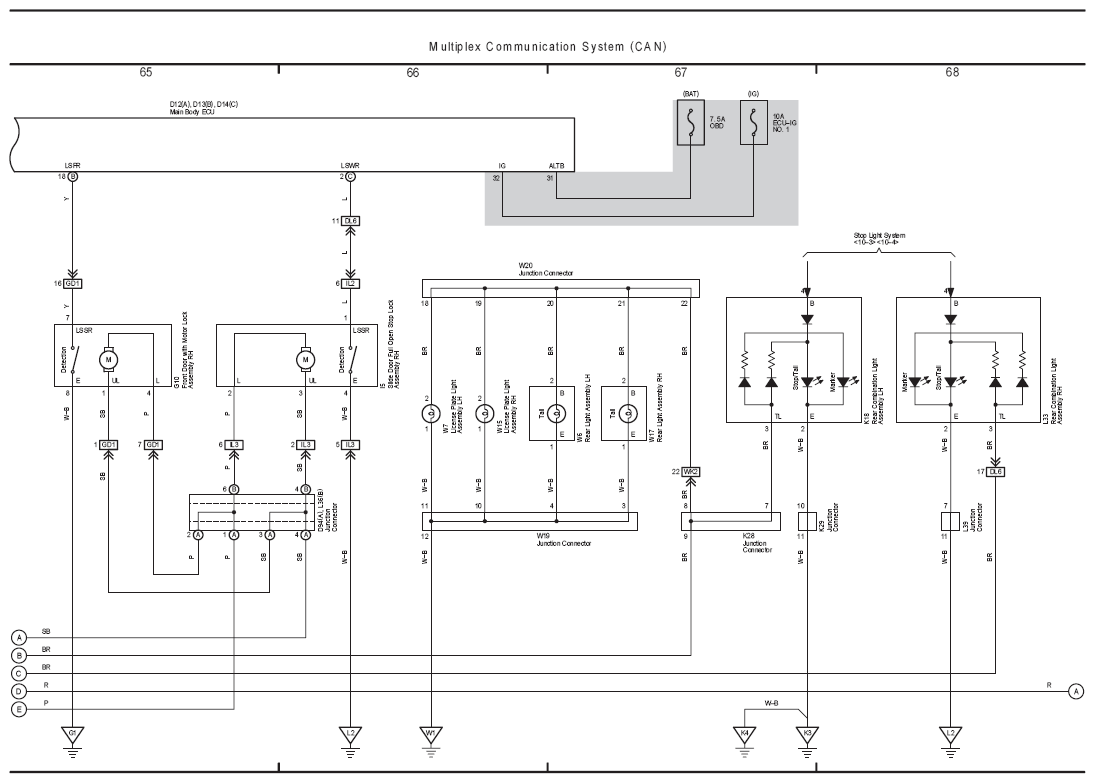

Fig 17: Multiplex Communication System Electrical Wiring Diagram (CAN; 17 Of 18)

Fig 18: Multiplex Communication System Electrical Wiring Diagram (CAN; 18 Of 18)
