Sienna SE
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Multi Display And Parking Assist (Rear View Monitor w/o Navigation System)
Multi Display And Parking Assist (Rear View Monitor w/o Navigation System)

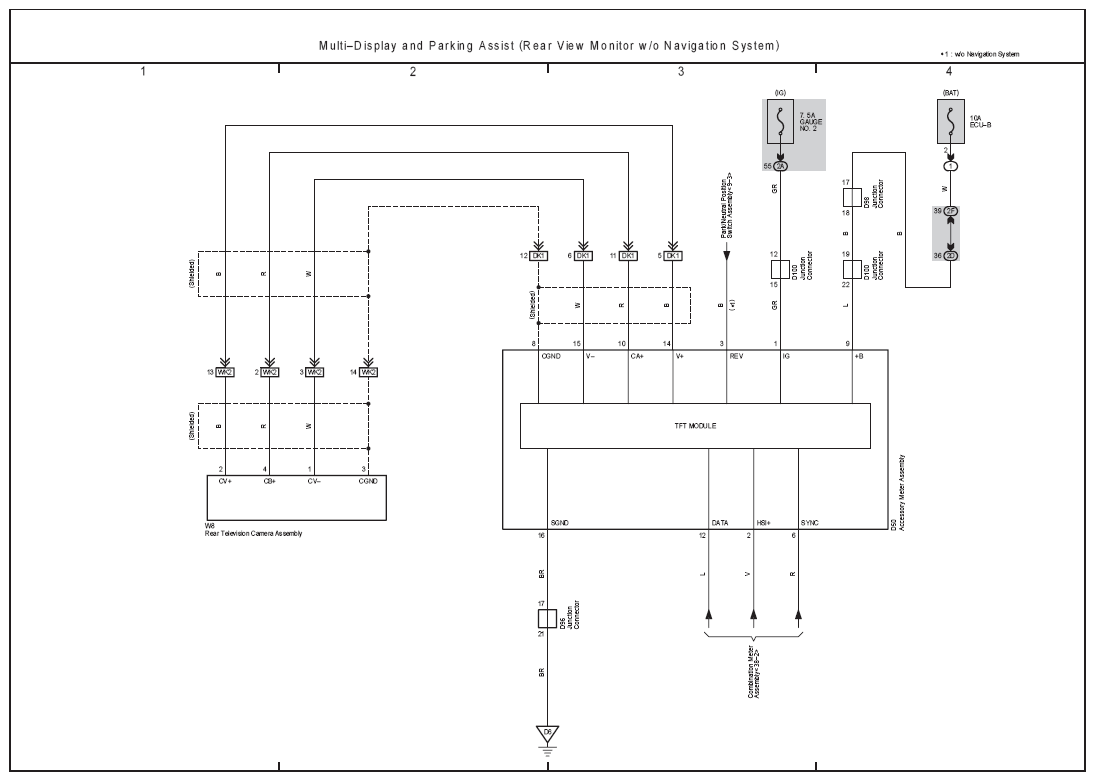

Fig 1: Multi Display And Parking Assist (Rear View Monitor w/o Navigation System) Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
