Ignition, Starting (w/o Smart Key System) (2GR-FE)

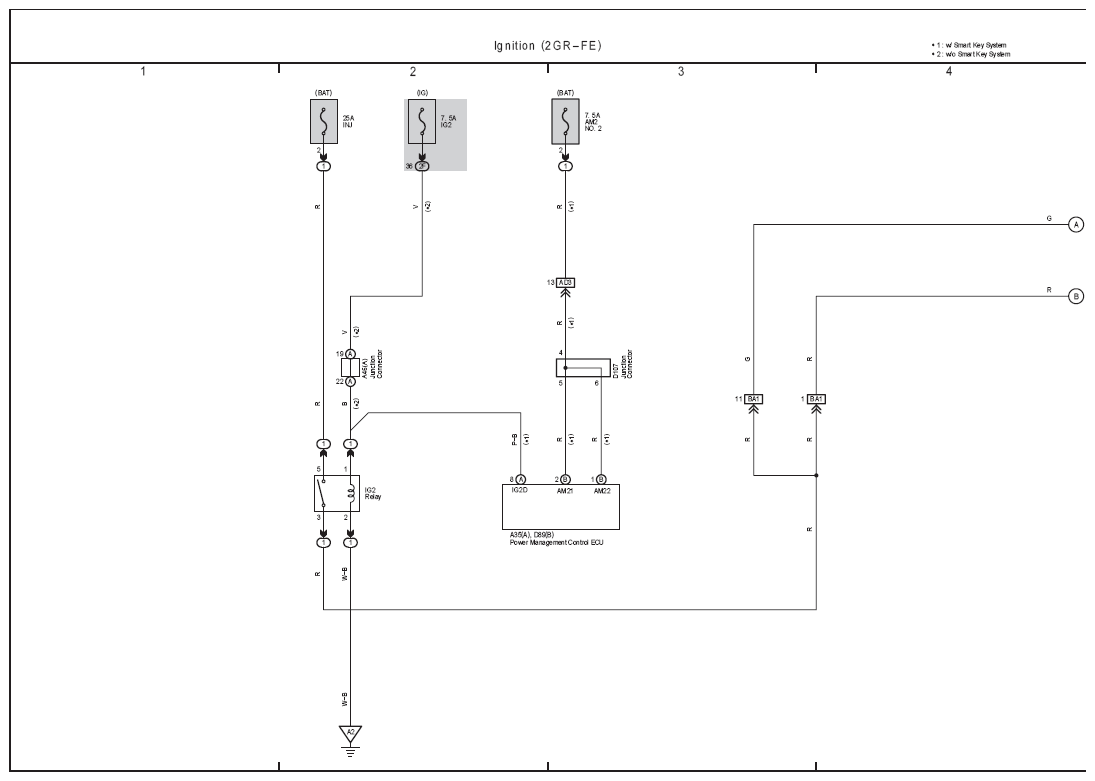

Fig 1: Ignition Electrical Wiring Diagram (2GR-FE; 1 Of 2)
G08847008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

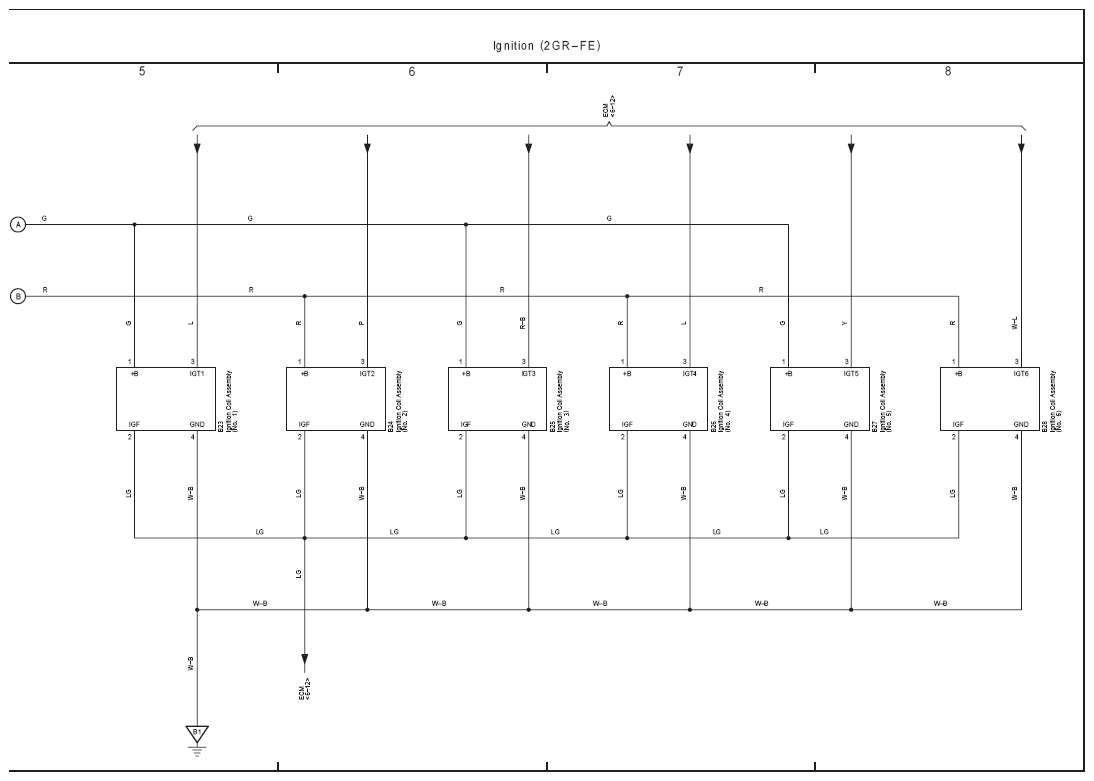

Fig 2: Ignition Electrical Wiring Diagram (2GR-FE; 2 Of 2)
G08847009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
