How To Read This Service Information

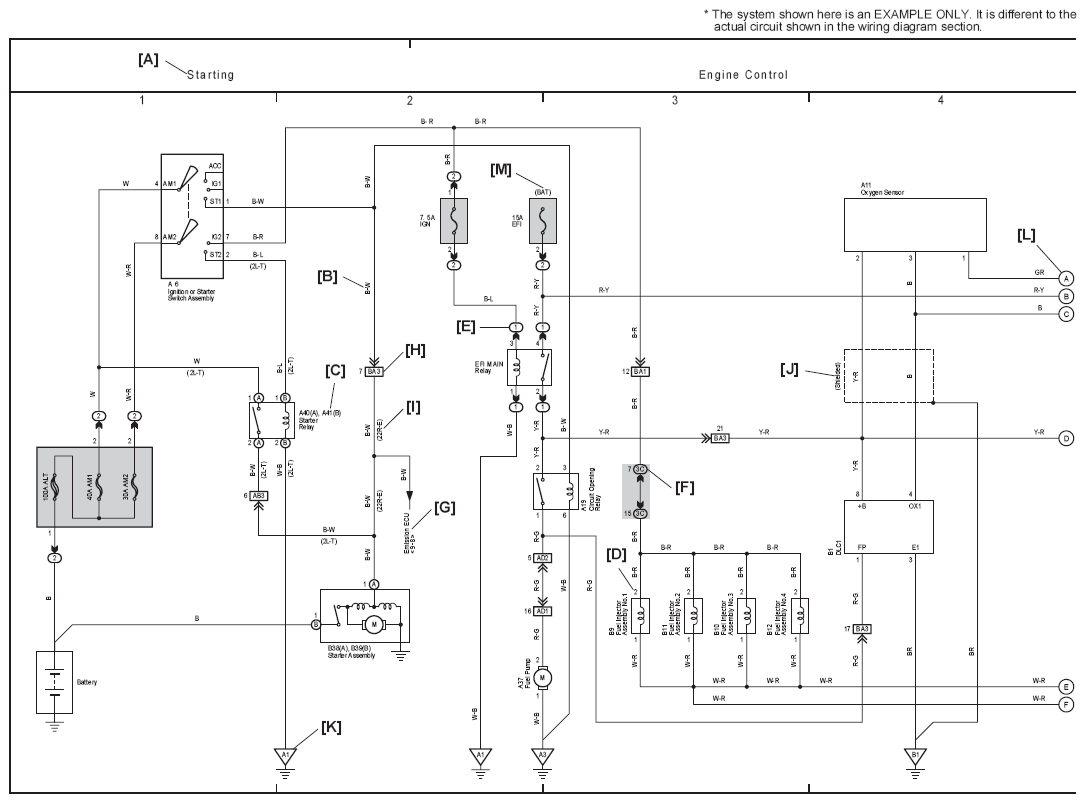

Fig 1: Electrical Wiring Diagram Example

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

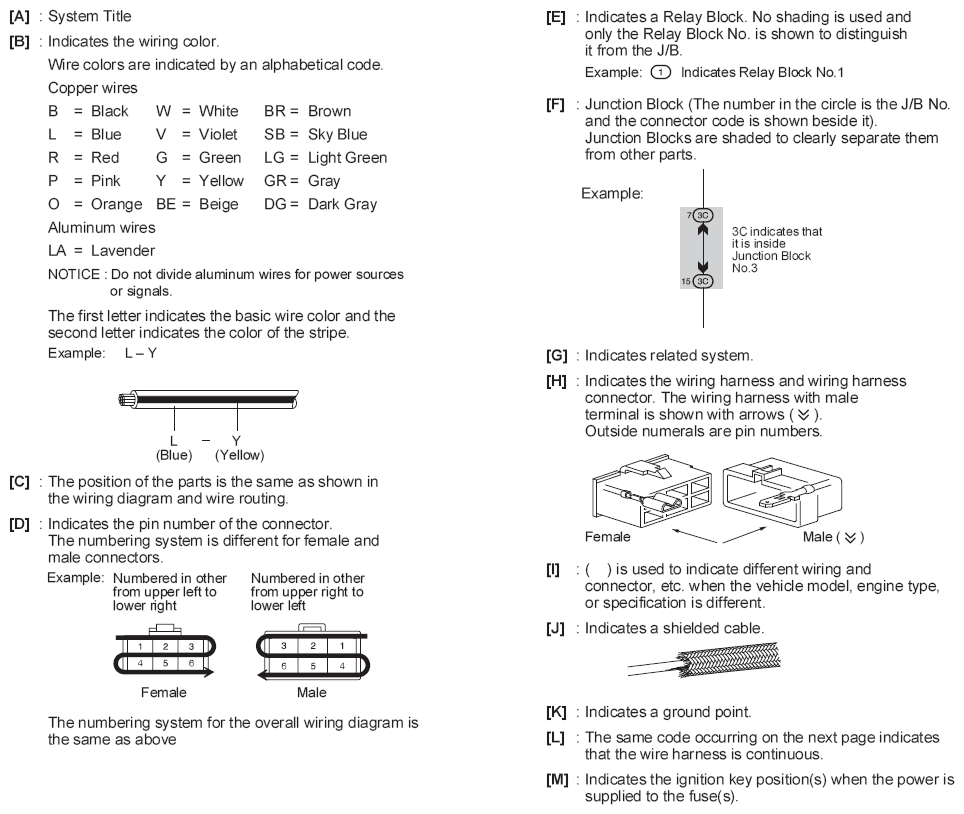

Fig 2: Electrical Wiring Diagram Example Legends

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
