Front Wiper And Washer (w/o Auto Wiper System)

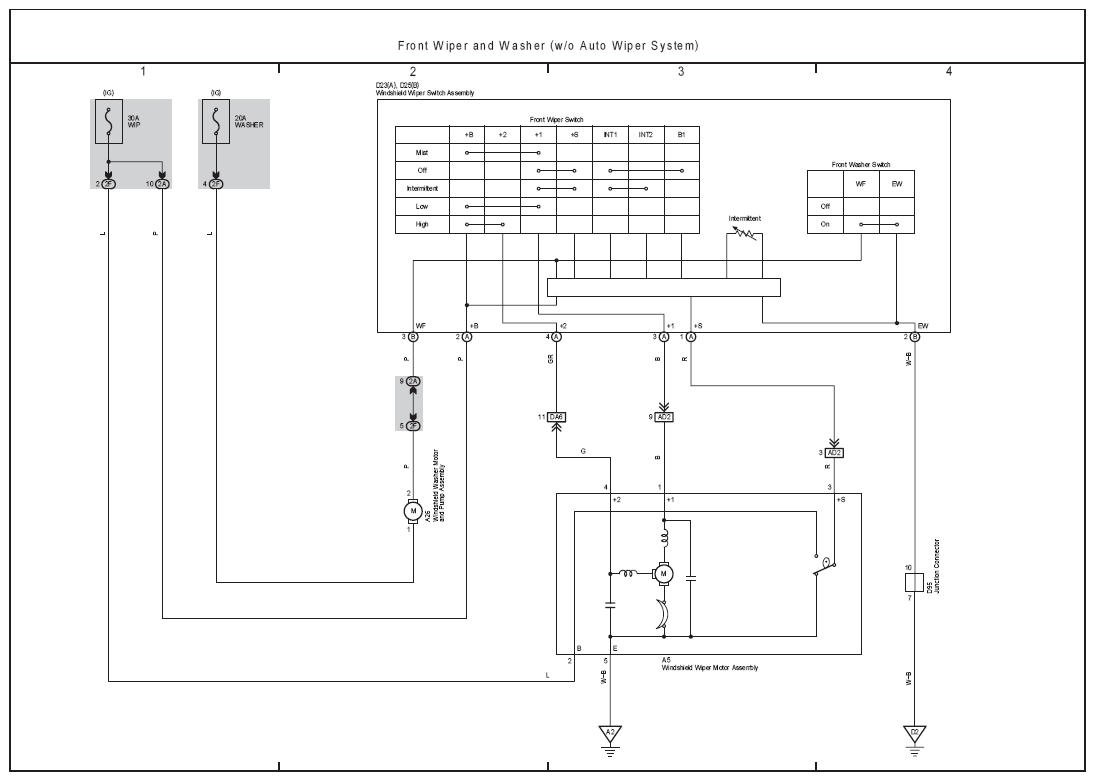

Fig 1: Front Wiper And Washer System Electrical Wiring Diagram (w/o Auto Wiper System)

G08847024

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
