DLC3, Engine Immobilizer System (w/o Smart Key System)

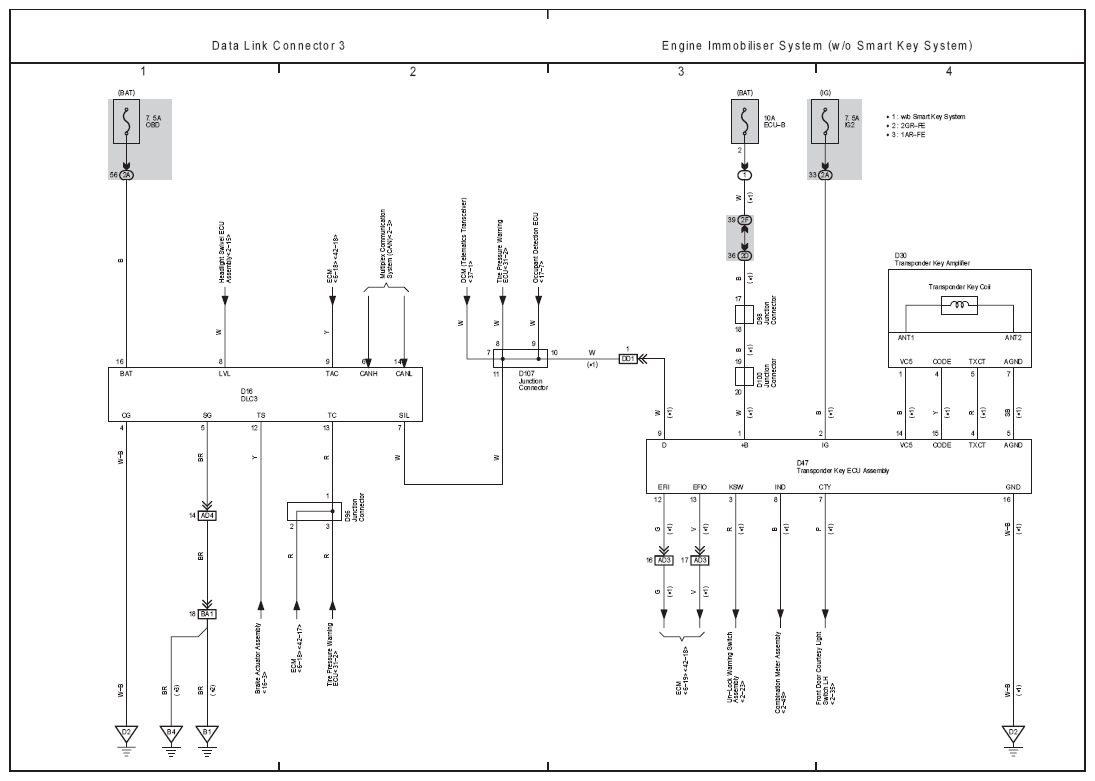

Fig 1: DLC3 And Engine Immobilizer System Electrical Wiring Diagram (W/O Smart Key System)

G08847019

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
