Clock, Rear Wiper And Washer

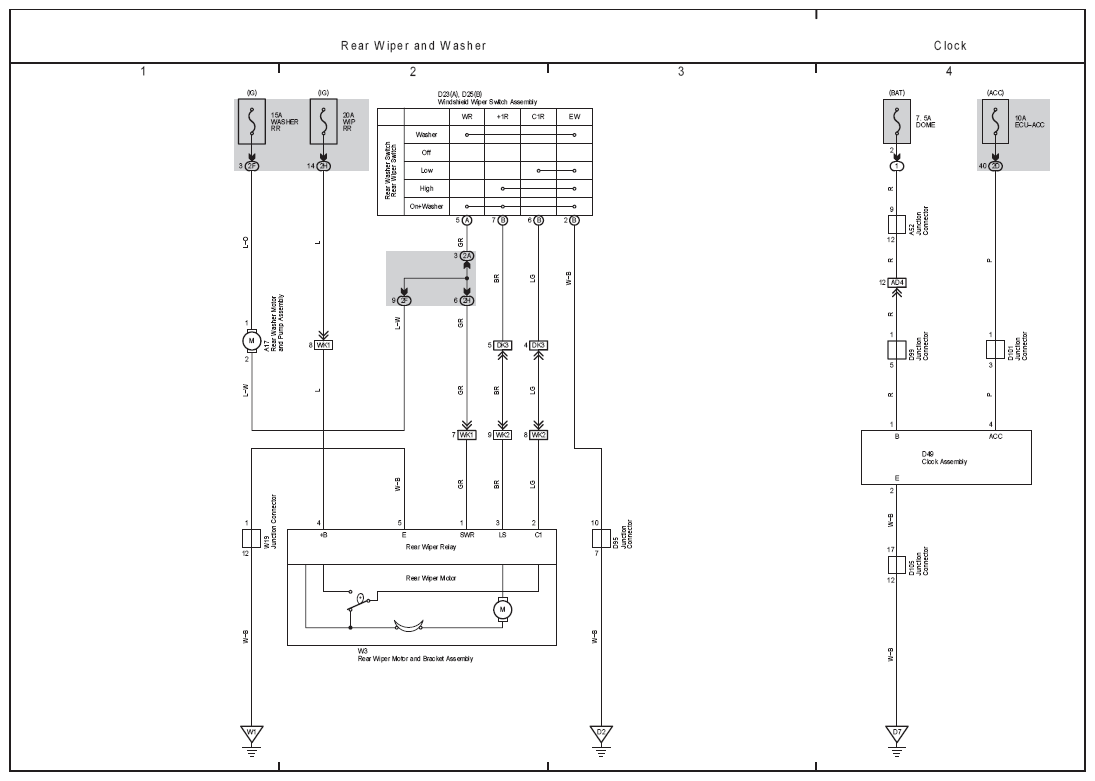

Fig 1: Clock And Rear Wiper And Washer Electrical Wiring Diagram

G08847025

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
