Overall Electrical Wiring Diagram: Charging

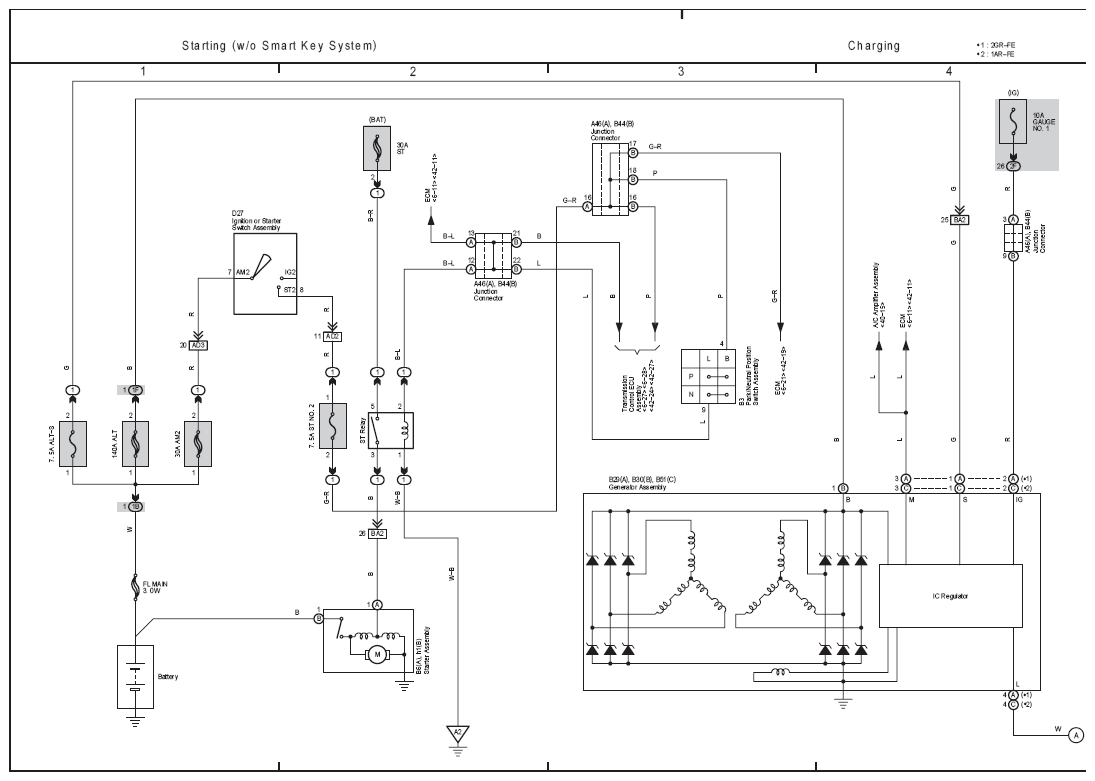

Fig 1: Charging System Electrical Wiring Diagram (1 Of 2)
G08847006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

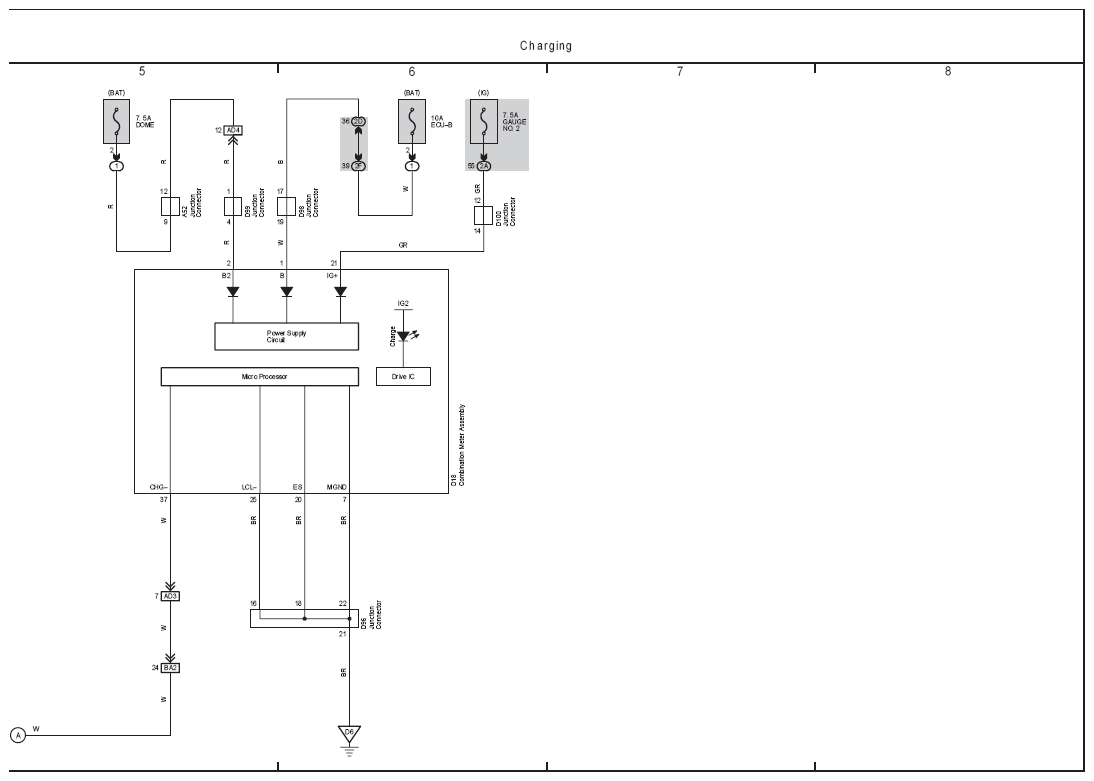

Fig 2: Charging System Electrical Wiring Diagram (2 Of 2)
G08847007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
