Automatic Glare-Resistant EC Mirror With Compass, Garage Door Opener

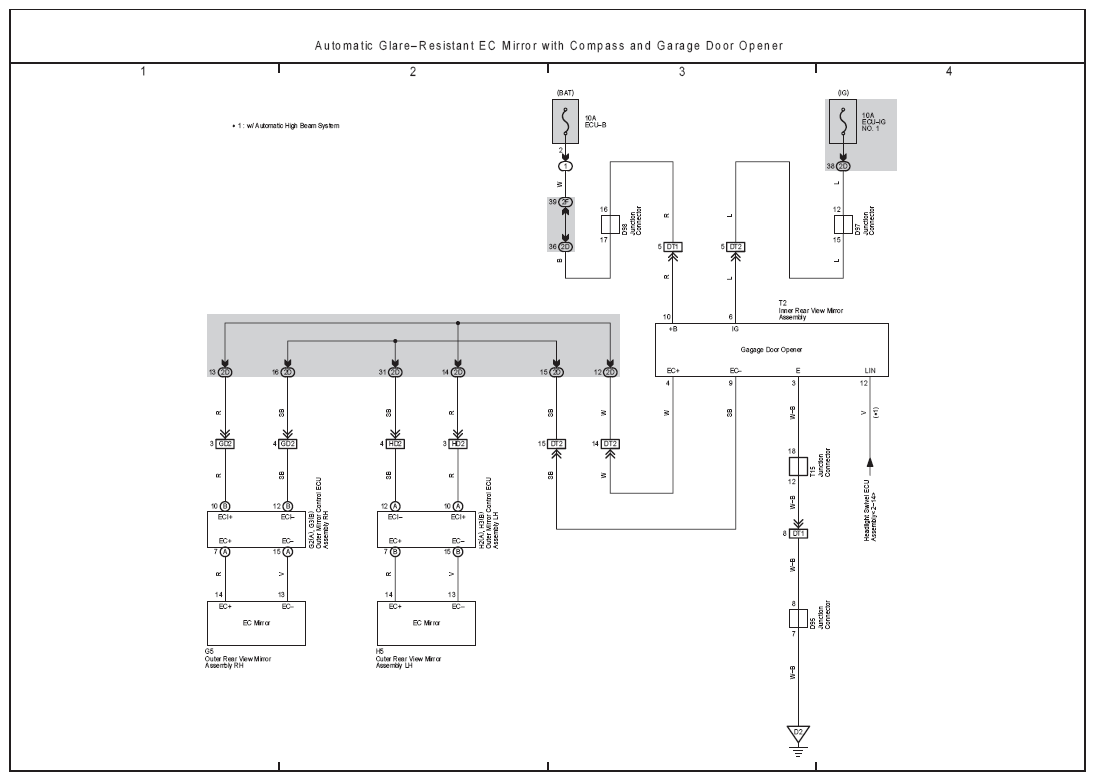

Fig 1: Automatic Glare-Resistant EC Mirror With Compass And Garage Door Opener Electrical Wiring Diagram
G08847036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
