Audio, Navigation, Parking Assist/Rear View Monitor, (w/Navigation System)

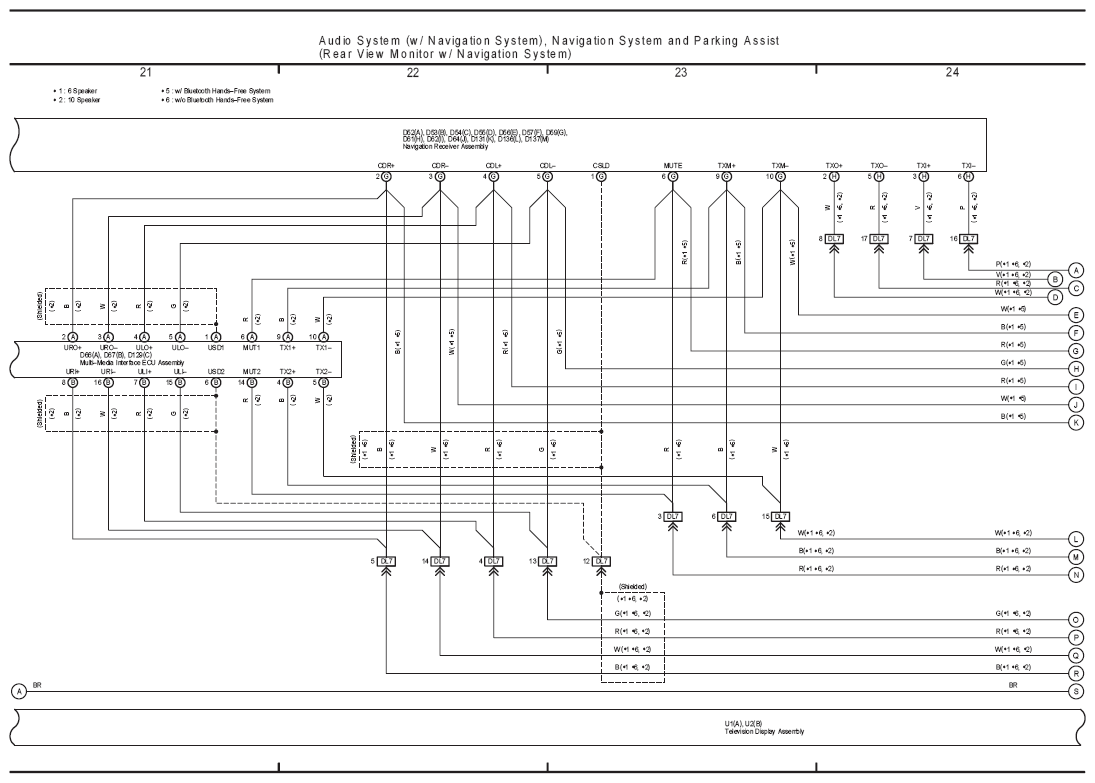

Fig 1: Audio, Navigation And Parking Assist/Rear View Monitor, (w/Navigation System) Electrical Wiring Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

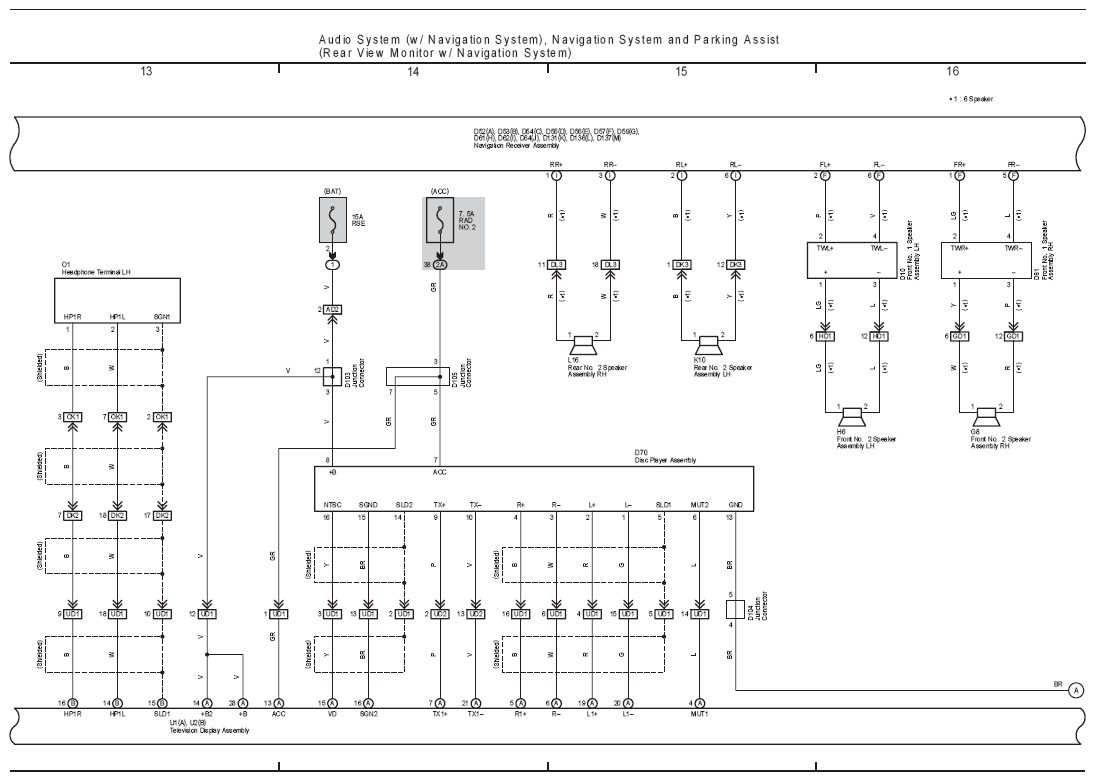

Fig 2: Audio, Navigation And Parking Assist/Rear View Monitor, (w/Navigation System) Electrical Wiring Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

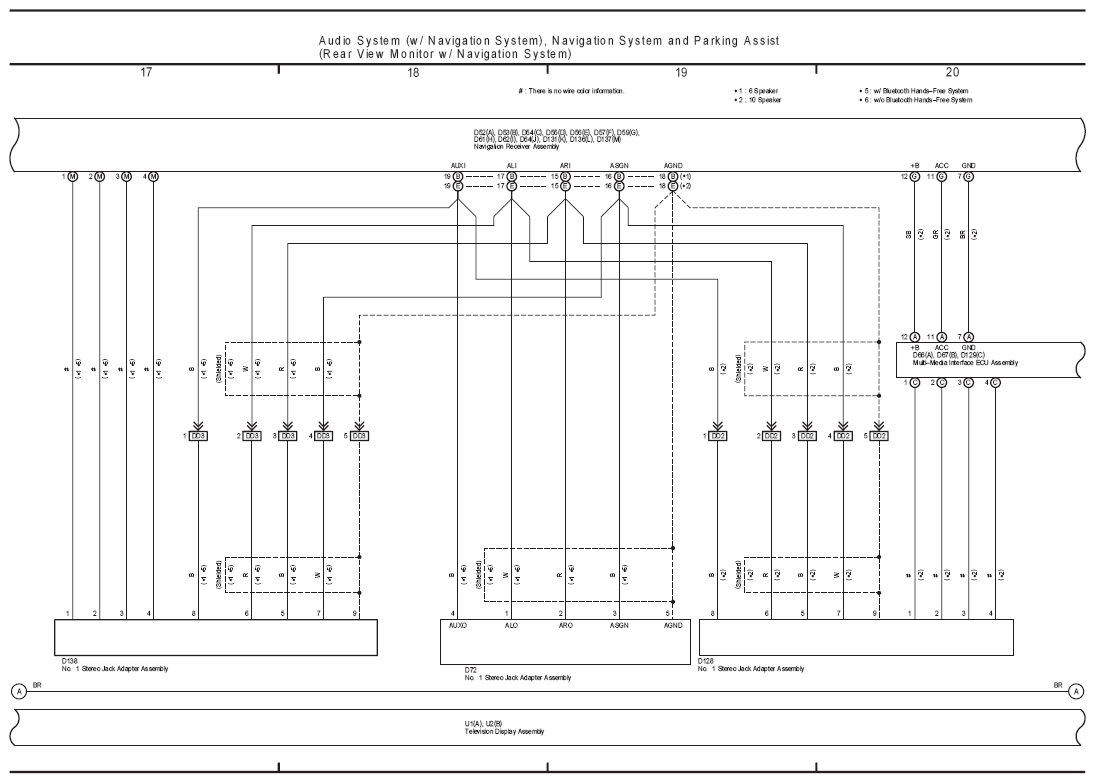

Fig 3: Audio, Navigation And Parking Assist/Rear View Monitor, (w/Navigation System) Electrical Wiring Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

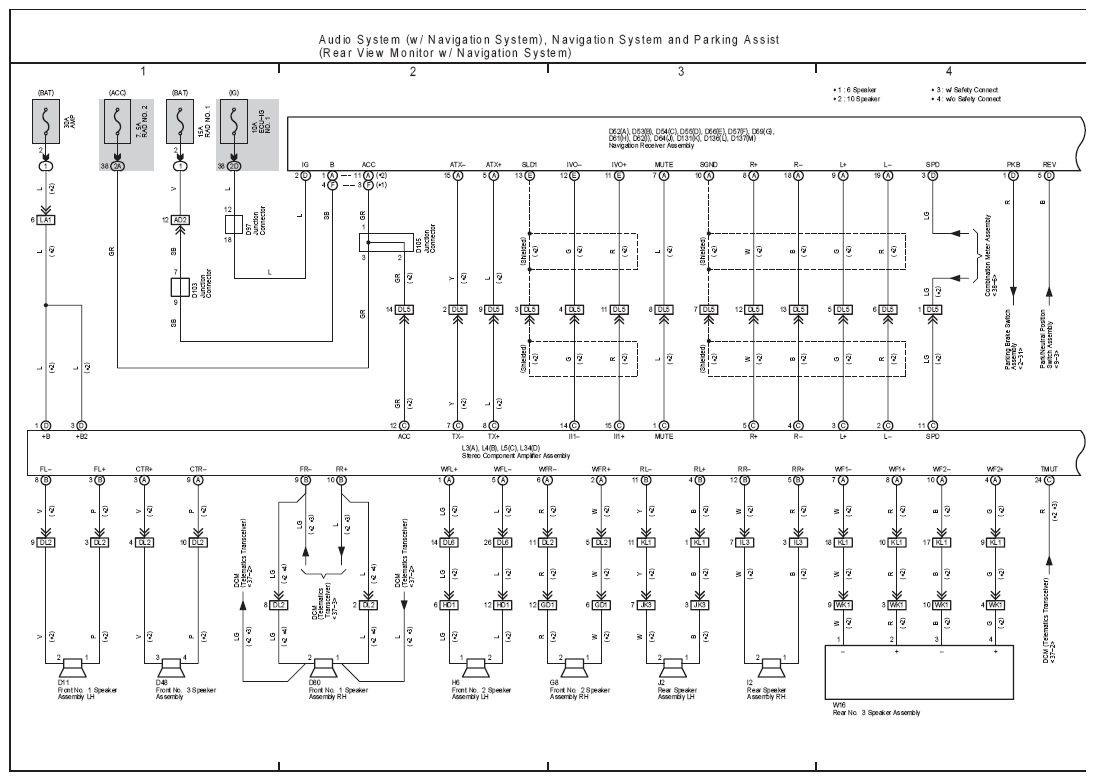

Fig 4: Audio, Navigation And Parking Assist/Rear View Monitor, (w/Navigation System) Electrical Wiring Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

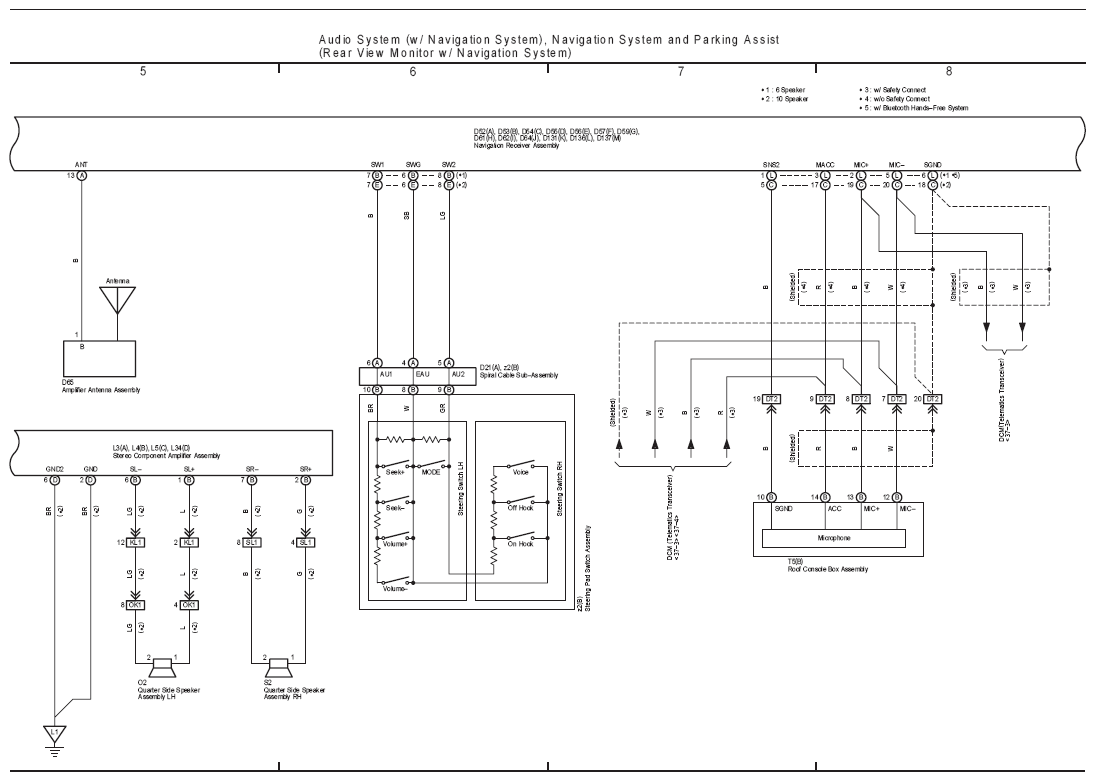

Fig 5: Audio, Navigation And Parking Assist/Rear View Monitor, (w/Navigation System) Electrical Wiring Diagram (5 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

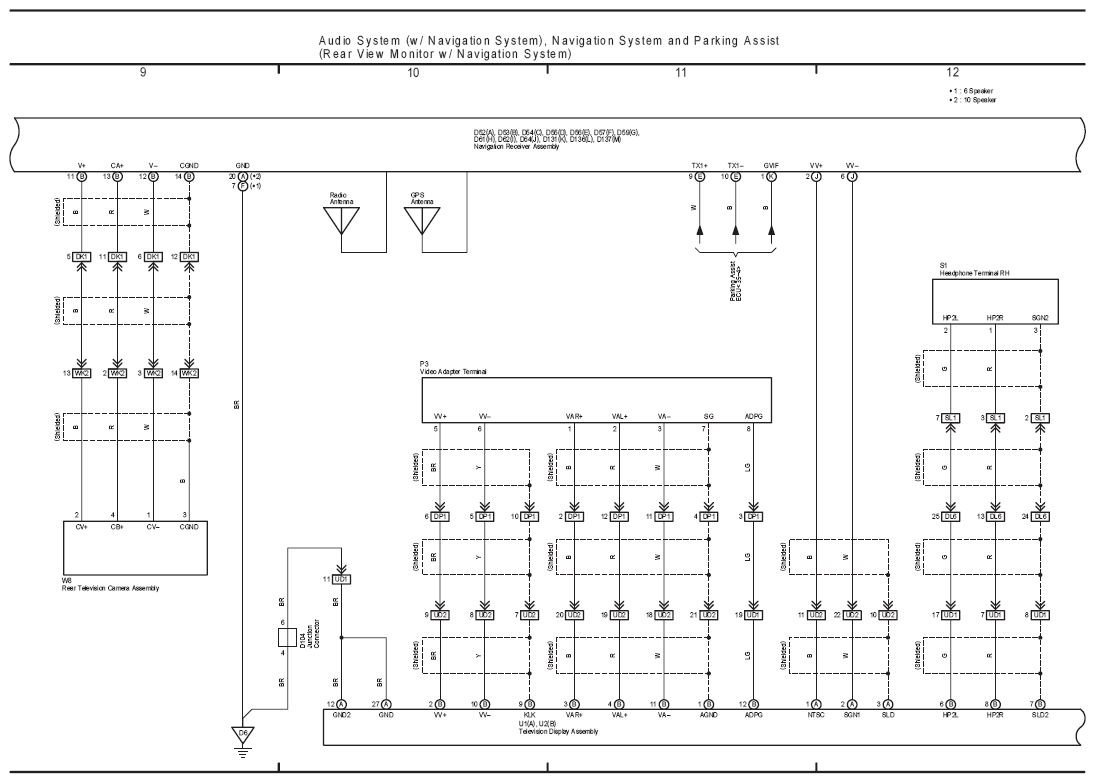

Fig 6: Audio, Navigation And Parking Assist/Rear View Monitor, (w/Navigation System) Electrical Wiring Diagram (6 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

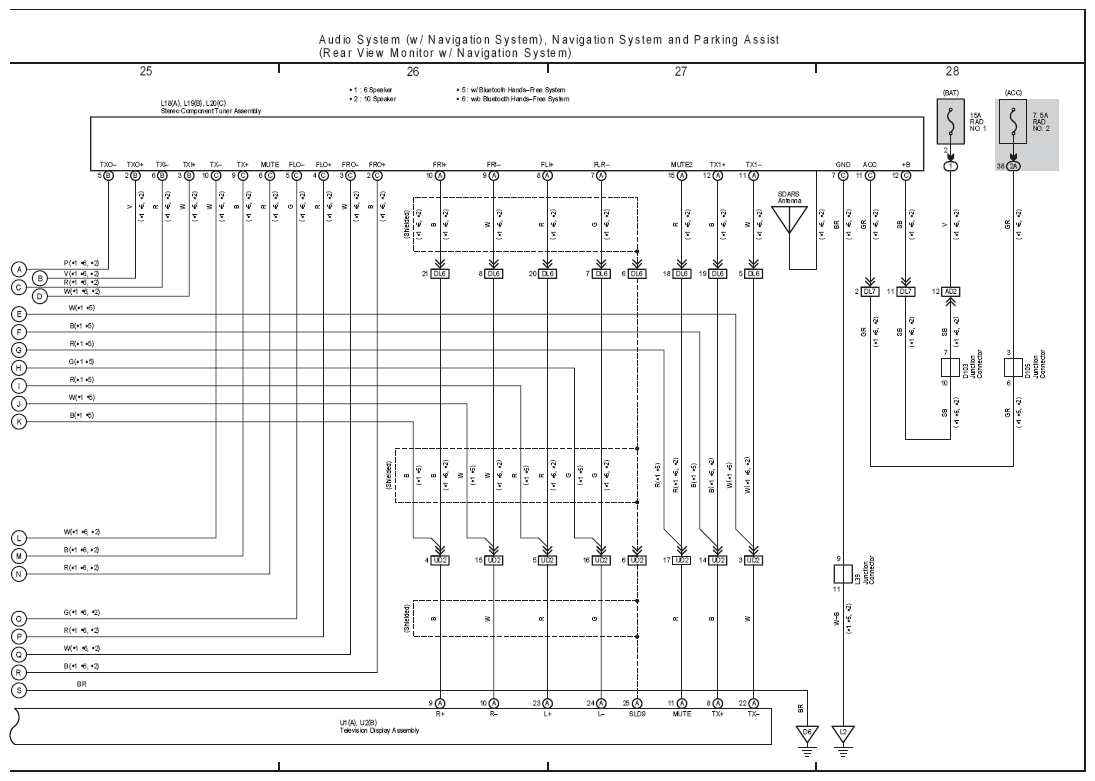

Fig 7: Audio, Navigation And Parking Assist/Rear View Monitor, (w/Navigation System) Electrical Wiring Diagram (7 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
