Audio System (w/o Navigation System)

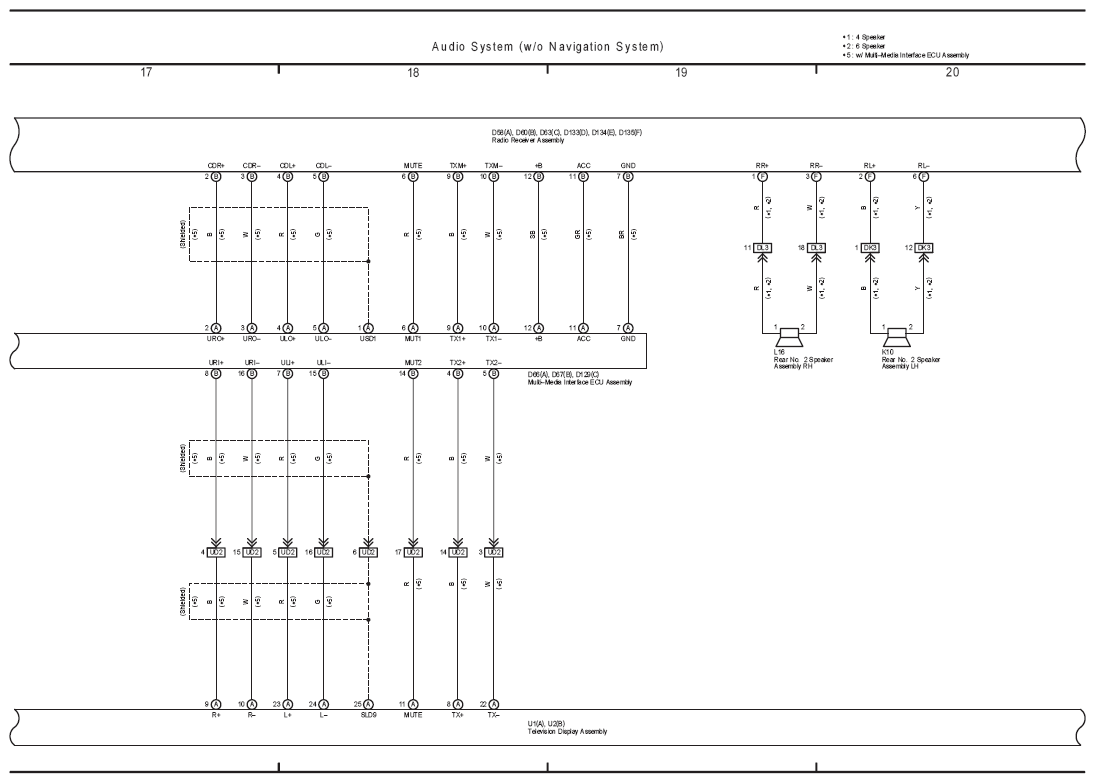

Fig 1: Audio System Electrical Wiring Diagram (W/O Navigation System; 1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

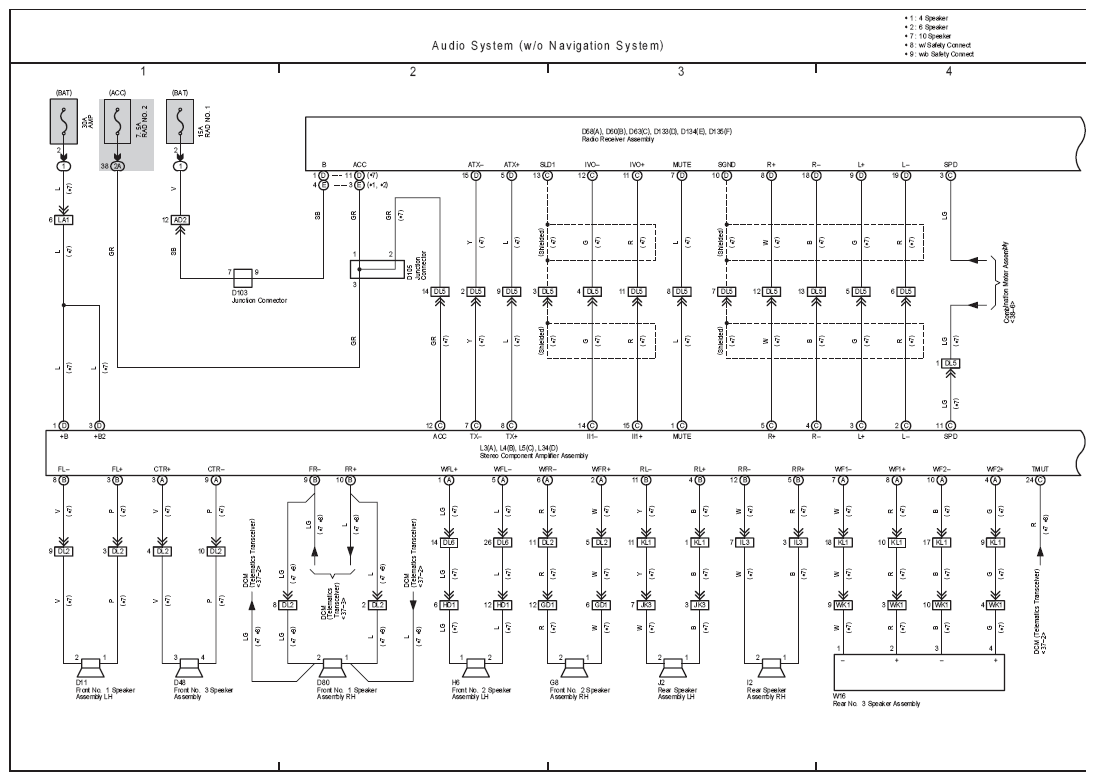

Fig 2: Audio System Electrical Wiring Diagram (W/O Navigation System; 2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

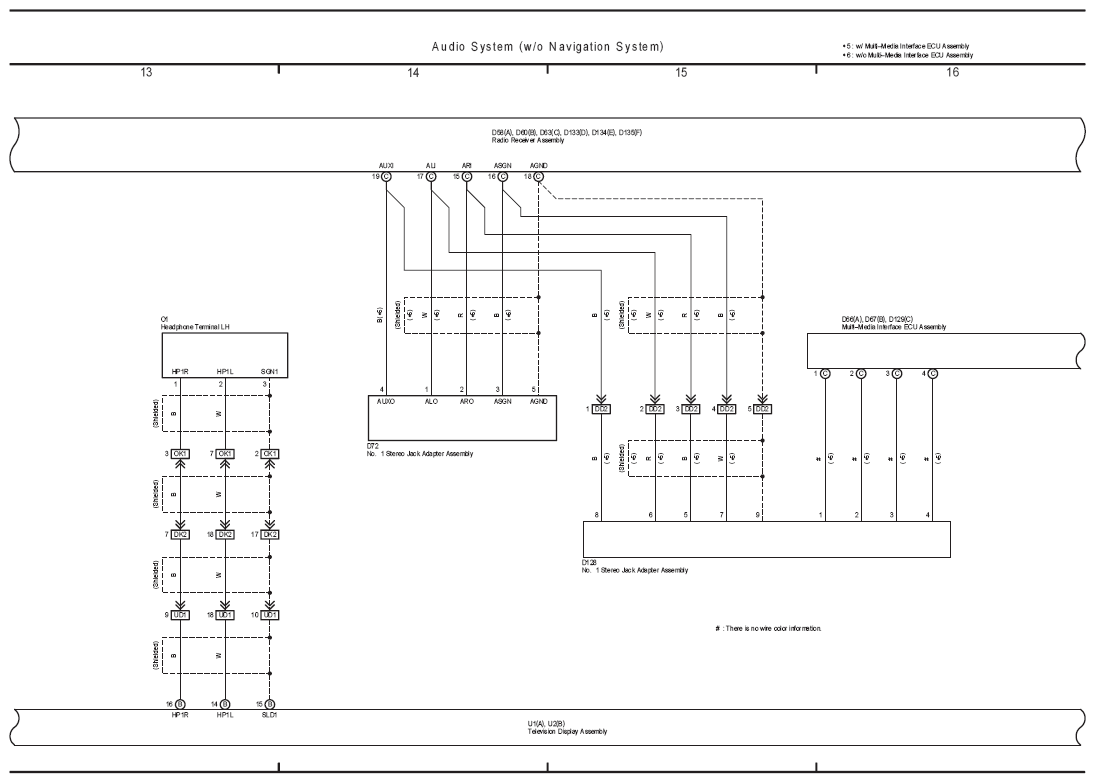

Fig 3: Audio System Electrical Wiring Diagram (W/O Navigation System; 3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

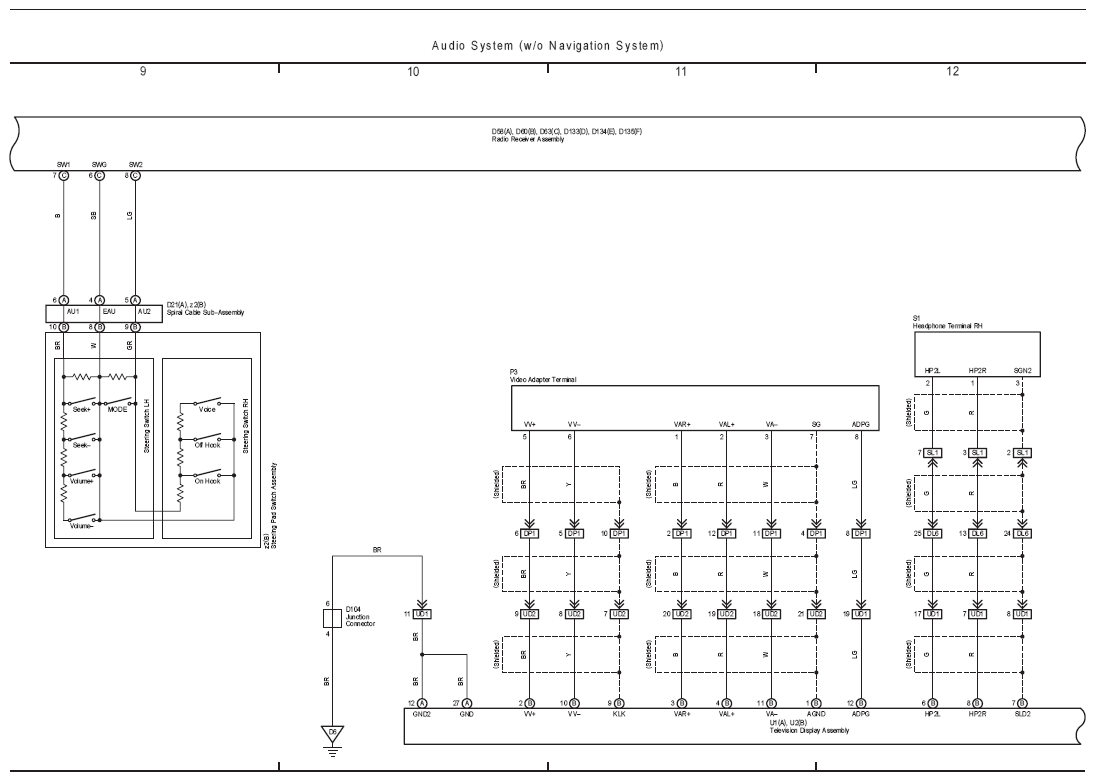

Fig 4: Audio System Electrical Wiring Diagram (W/O Navigation System; 4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

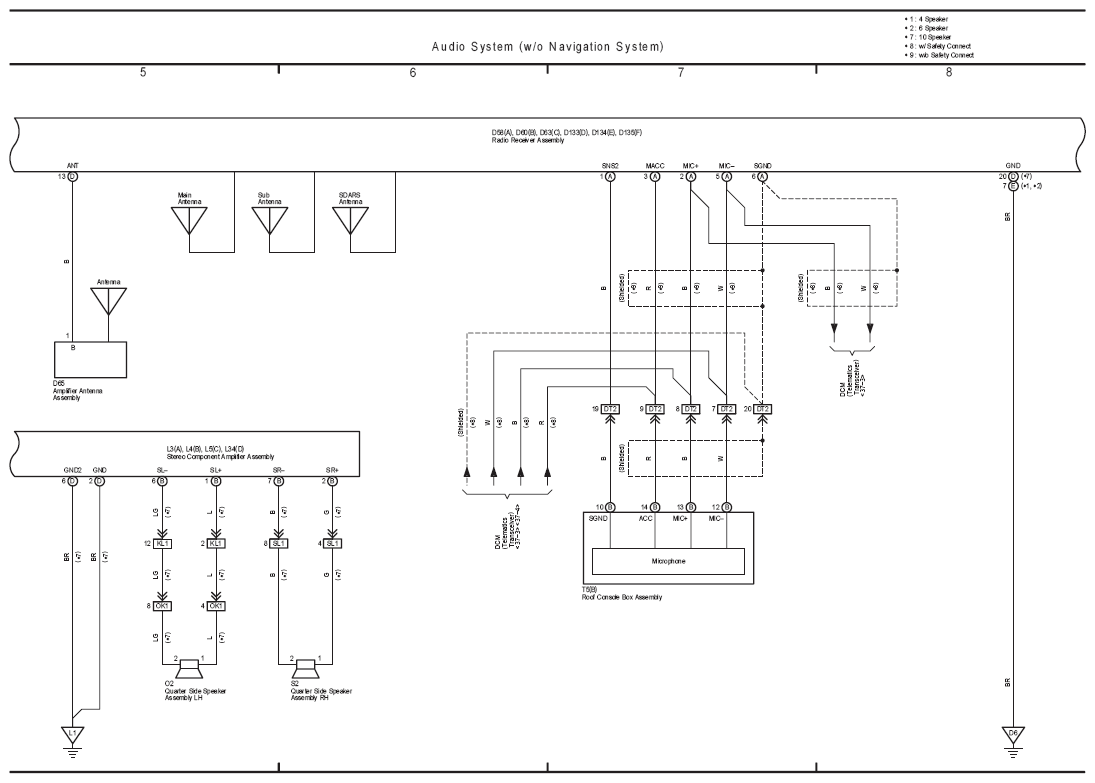

Fig 5: Audio System Electrical Wiring Diagram (W/O Navigation System; 5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

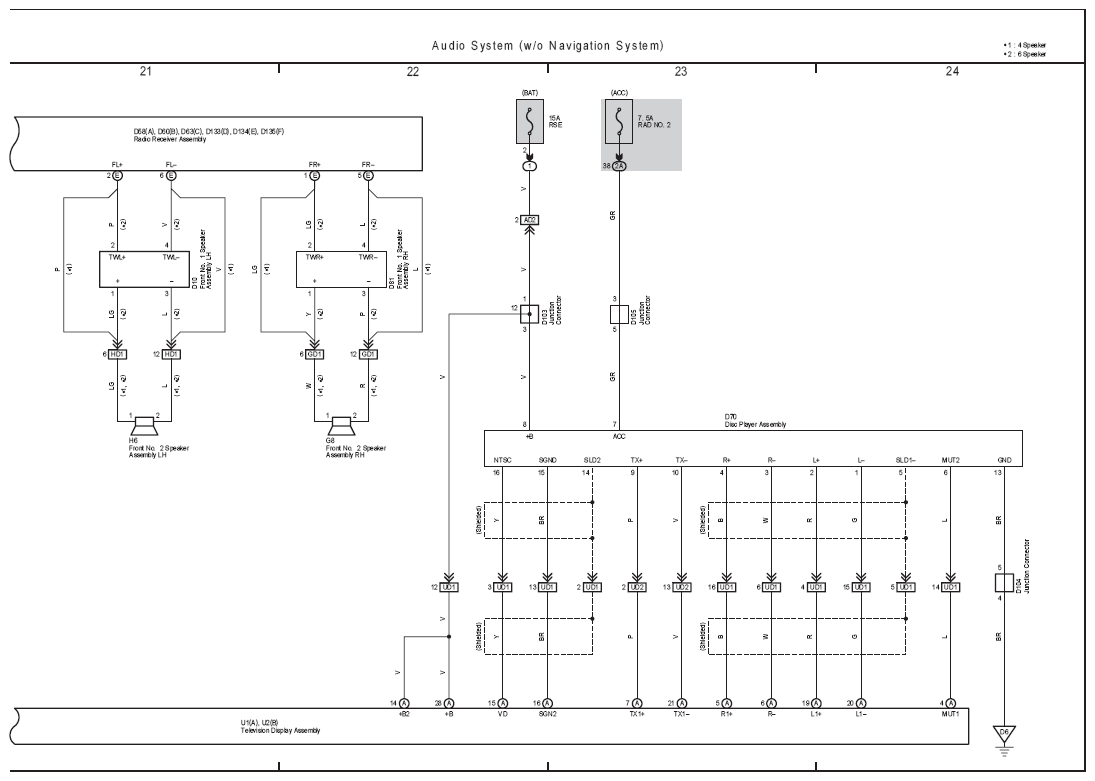

Fig 6: Audio System Electrical Wiring Diagram (W/O Navigation System; 6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
