Home >> Toyota >> 2012 >> Sienna SE >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> OEM Overall Electrical Wiring Diagram >> Overall Electrical Wiring Diagram >> Air Conditioning

Air Conditioning

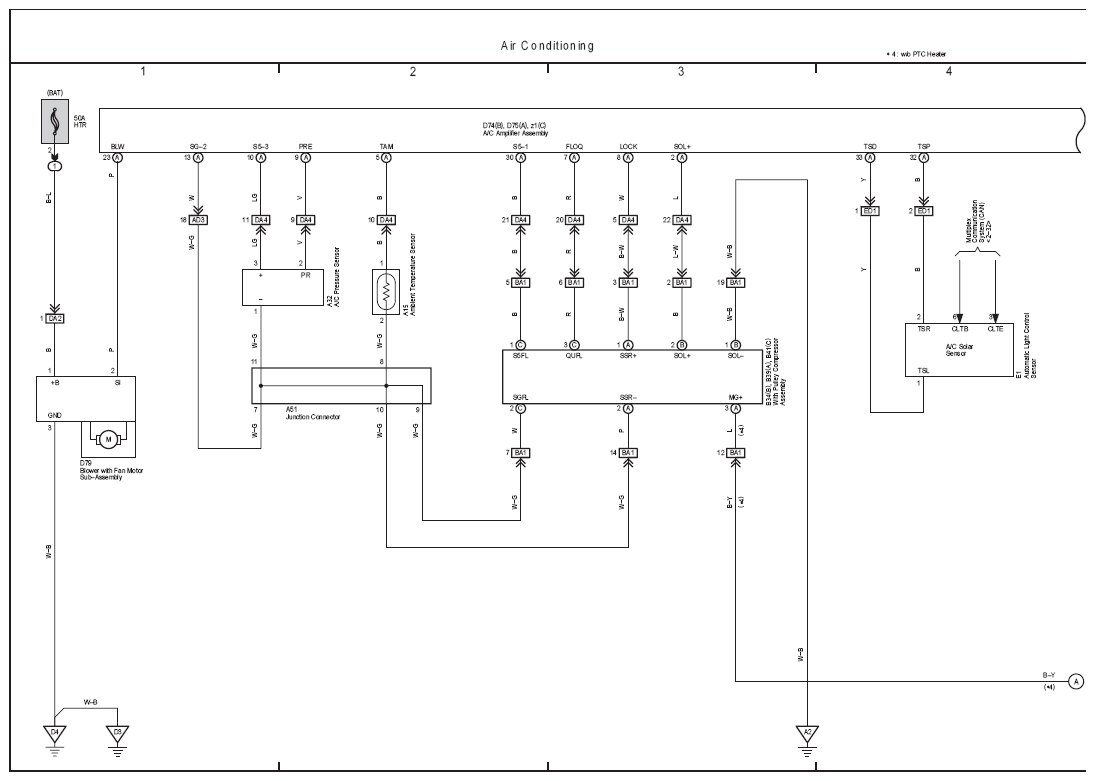

Fig 1: Air Conditioning System Electrical Wiring Diagram (1 Of 5)
G08847074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

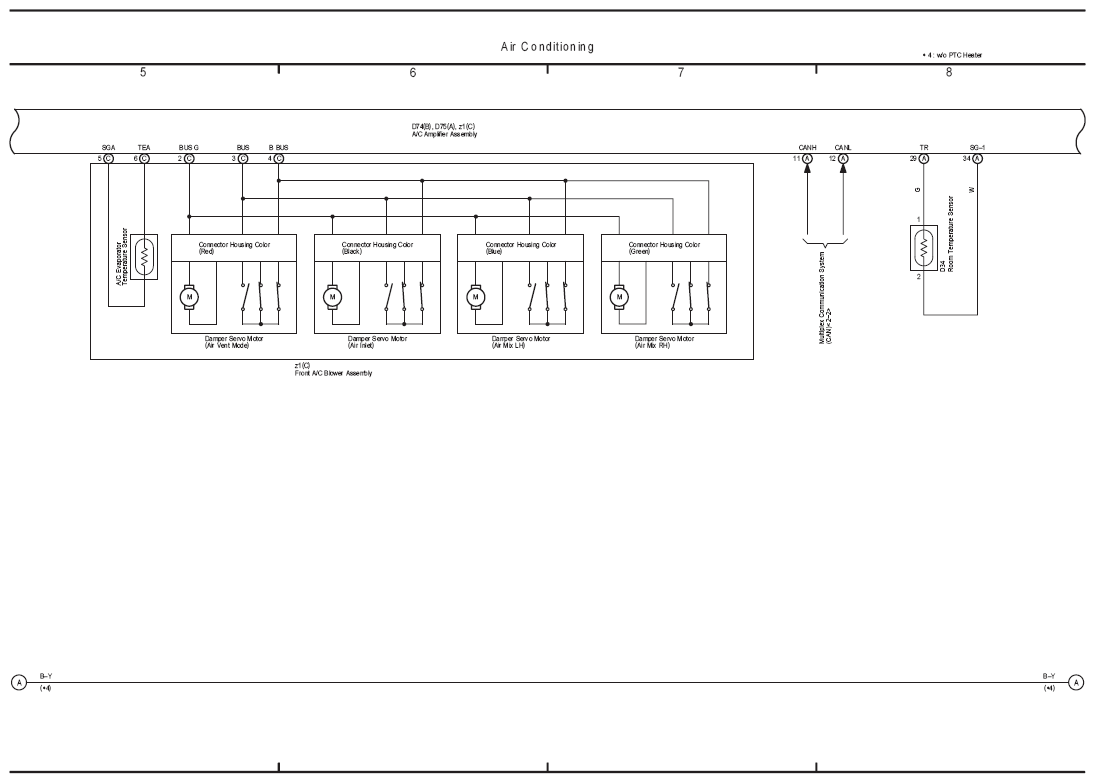

Fig 2: Air Conditioning System Electrical Wiring Diagram (2 Of 5)
G08847075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

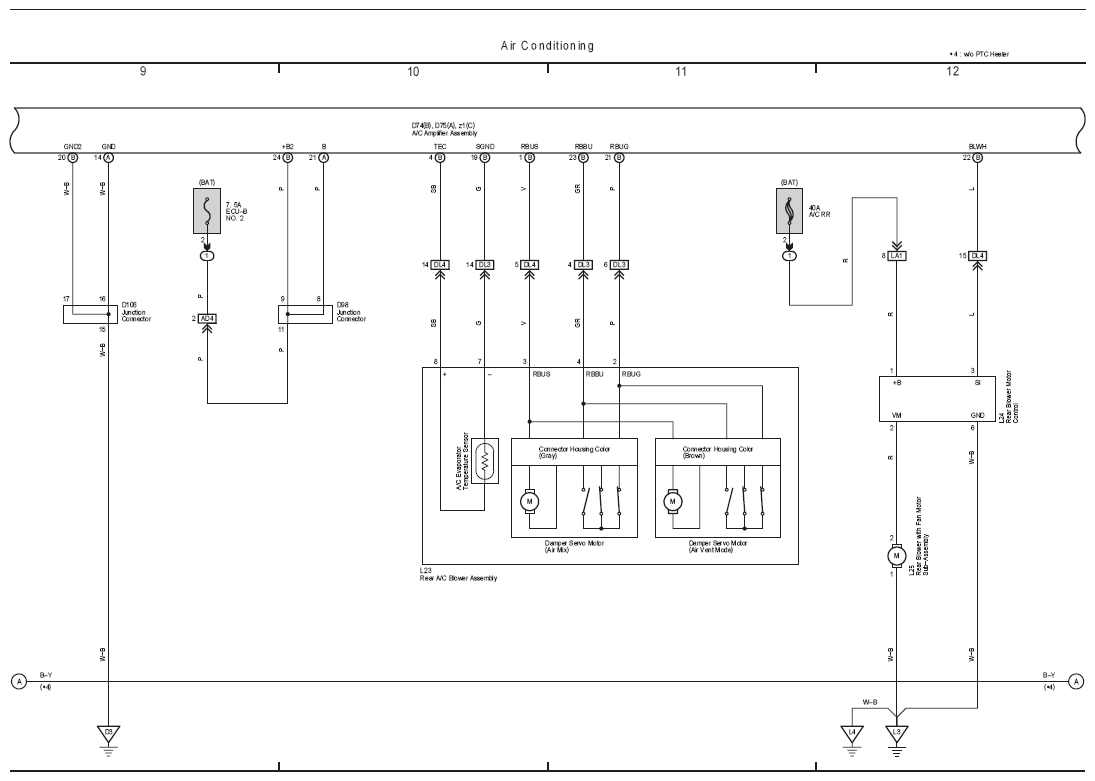

Fig 3: Air Conditioning System Electrical Wiring Diagram (3 Of 5)
G08847076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

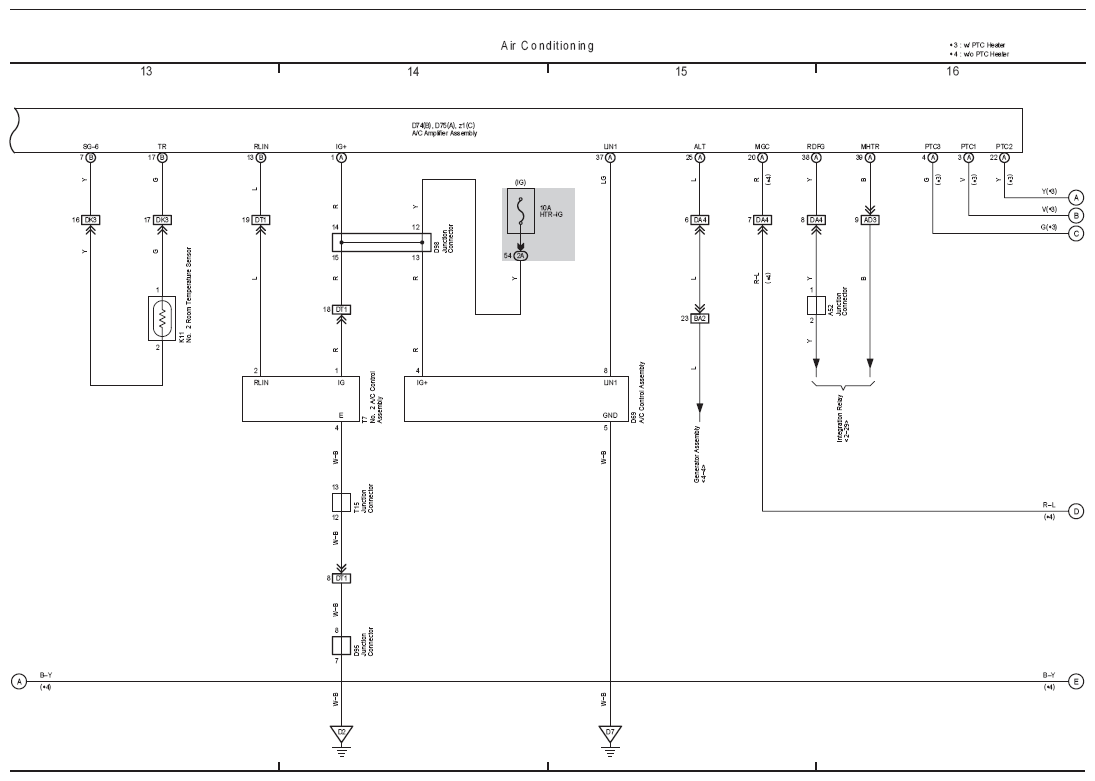

Fig 4: Air Conditioning System Electrical Wiring Diagram (4 Of 5)
G08847077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

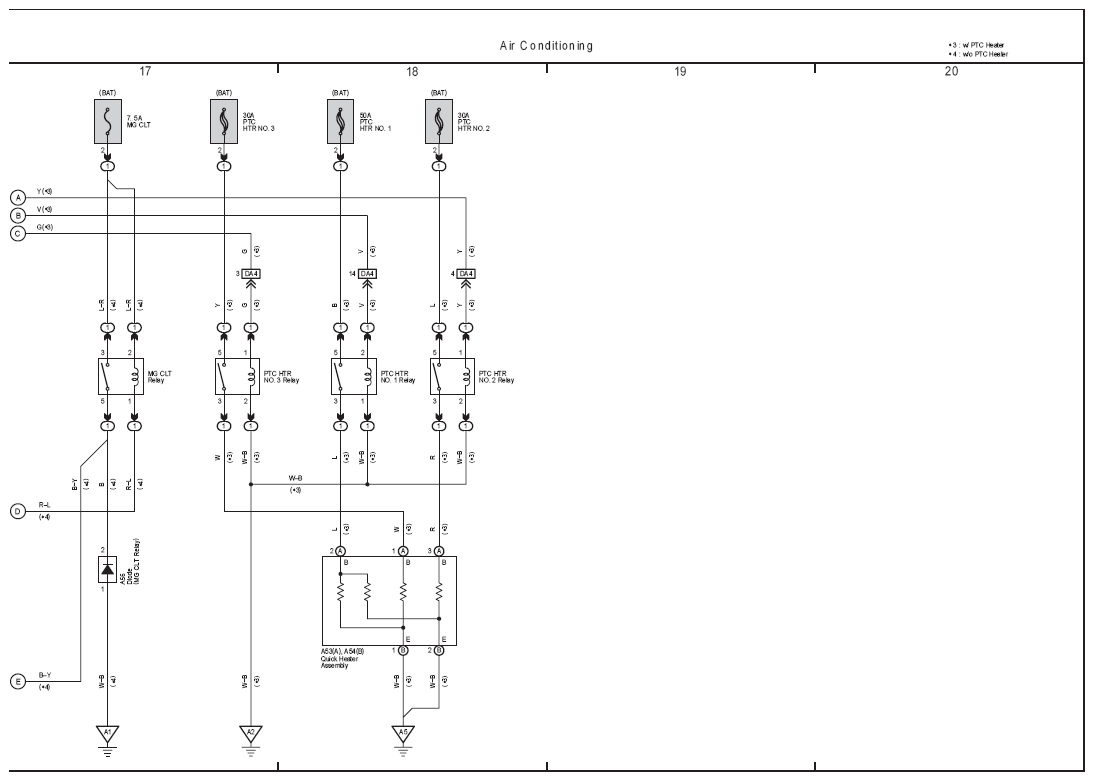

Fig 5: Air Conditioning System Electrical Wiring Diagram (5 Of 5)
G08847078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
