Overall Electrical Wiring Diagram: AWD

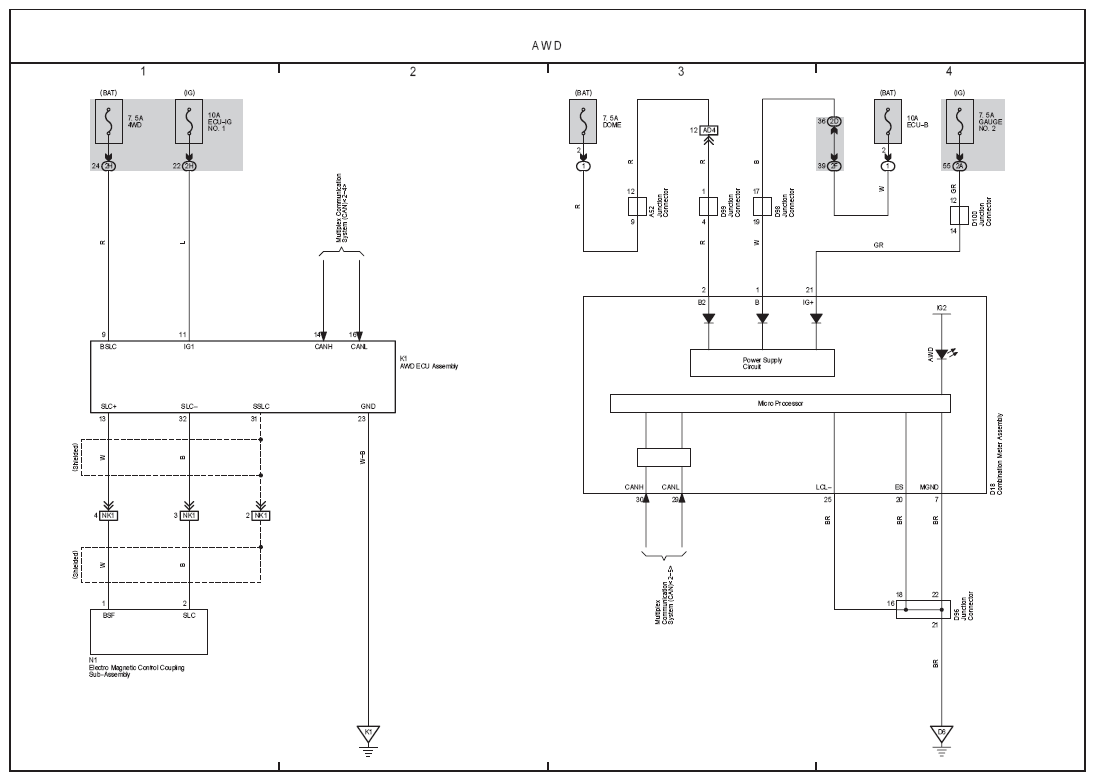

Fig 1: AWD Electrical Wiring Diagram

G08847035

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
