ABS, Hill-start Assist Control, TRAC, Vehicle Dynamics Integrated Management, VSC

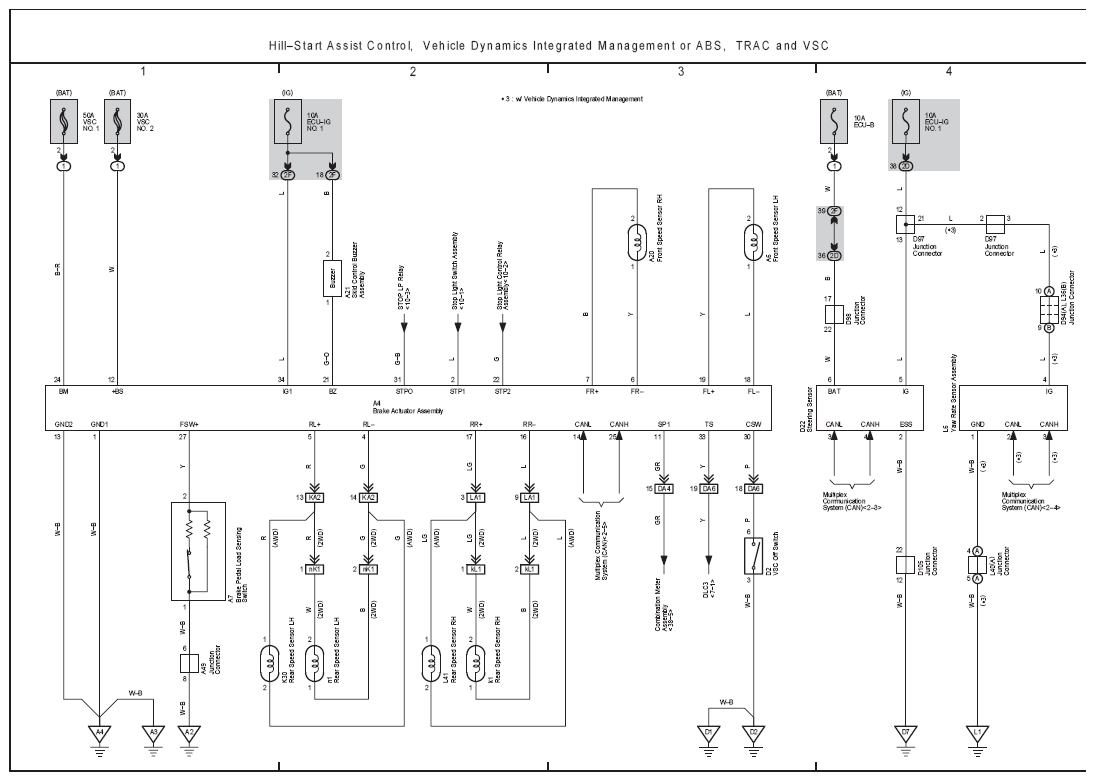

Fig 1: ABS, Hill-start Assist Control, TRAC, Vehicle Dynamics Integrated Management And VSC Electrical Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

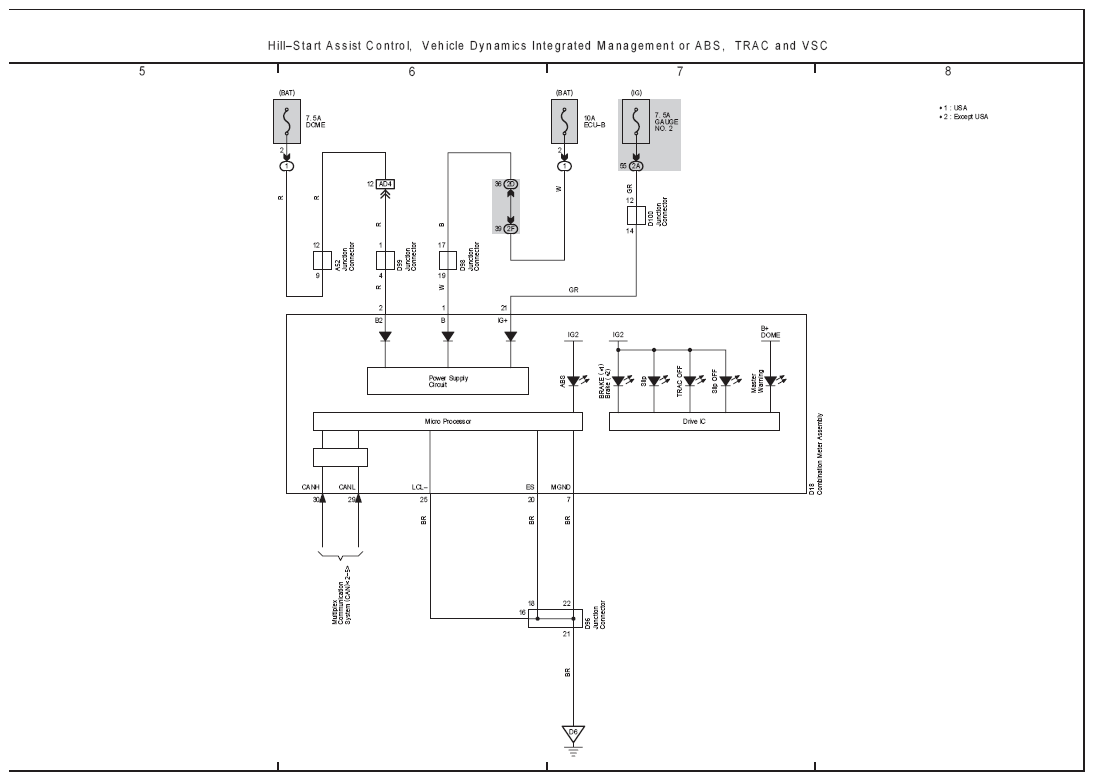

Fig 2: ABS, Hill-start Assist Control, TRAC, Vehicle Dynamics Integrated Management And VSC Electrical Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
