OEM Electrical Wiring Routing
>>
Electrical Wiring Routing
>>
Position of Parts in Seat
>>
Rear No. 1 Seat
Rear No. 1 Seat

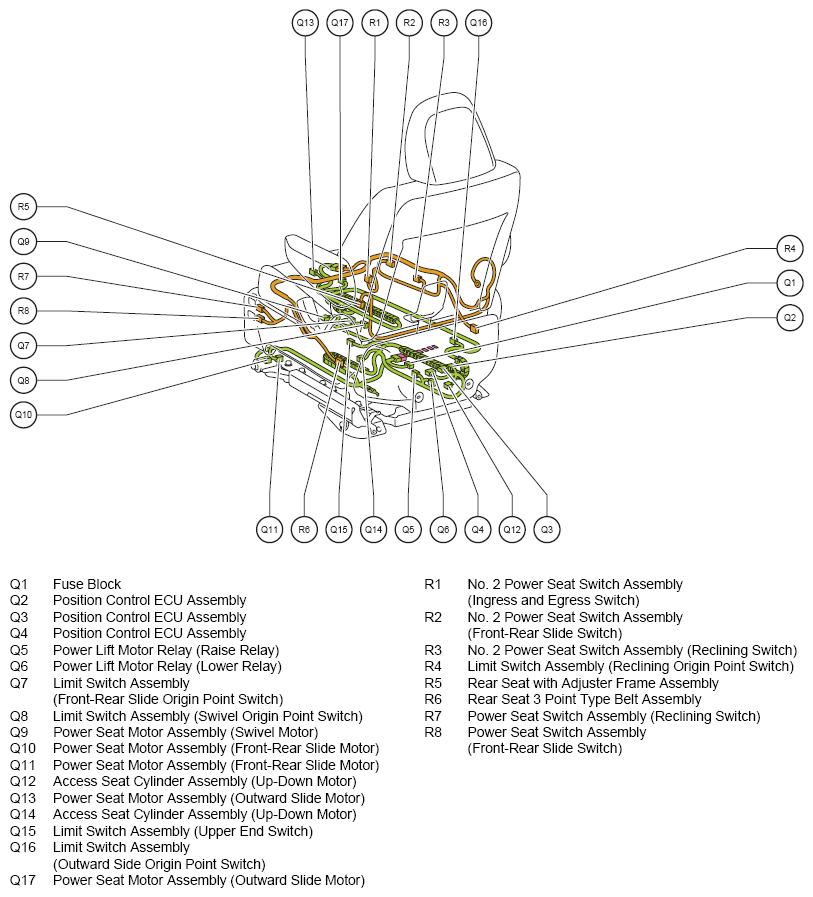

Fig 1: Seat Parts (Rear No. 1 Seat)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
