Position of Parts in Engine Compartment: 2GR-FE

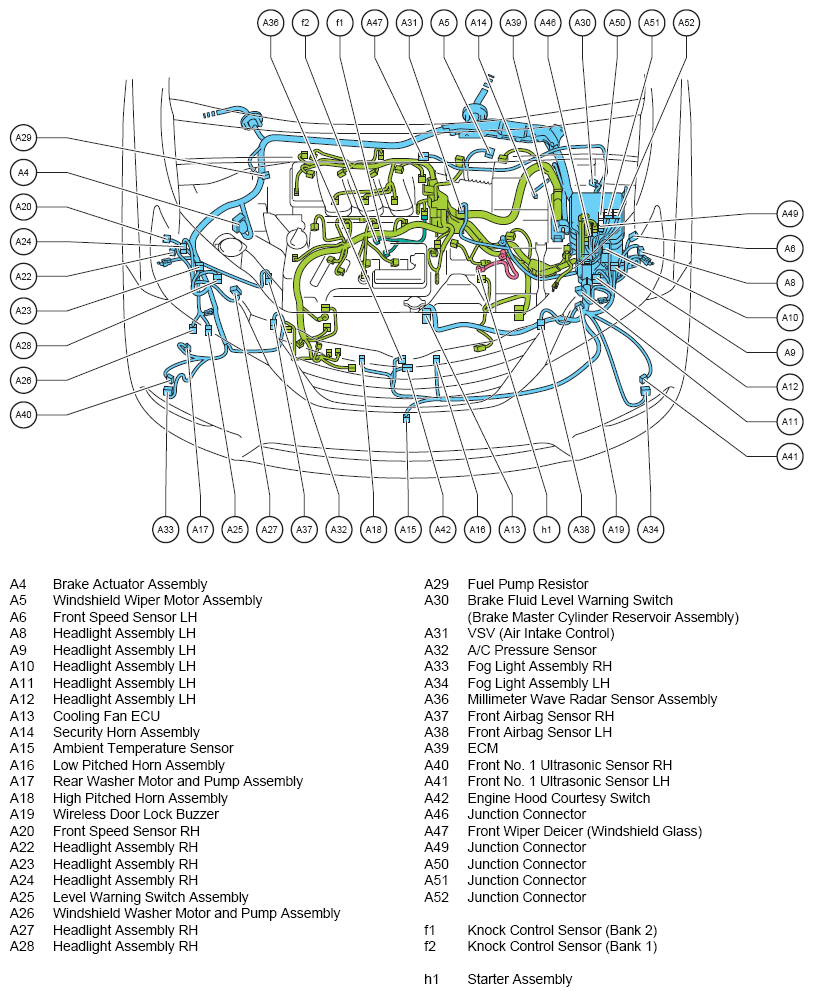

Fig 1: Engine Compartment Parts (2GR-FE; 1 Of 2)
G08846010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

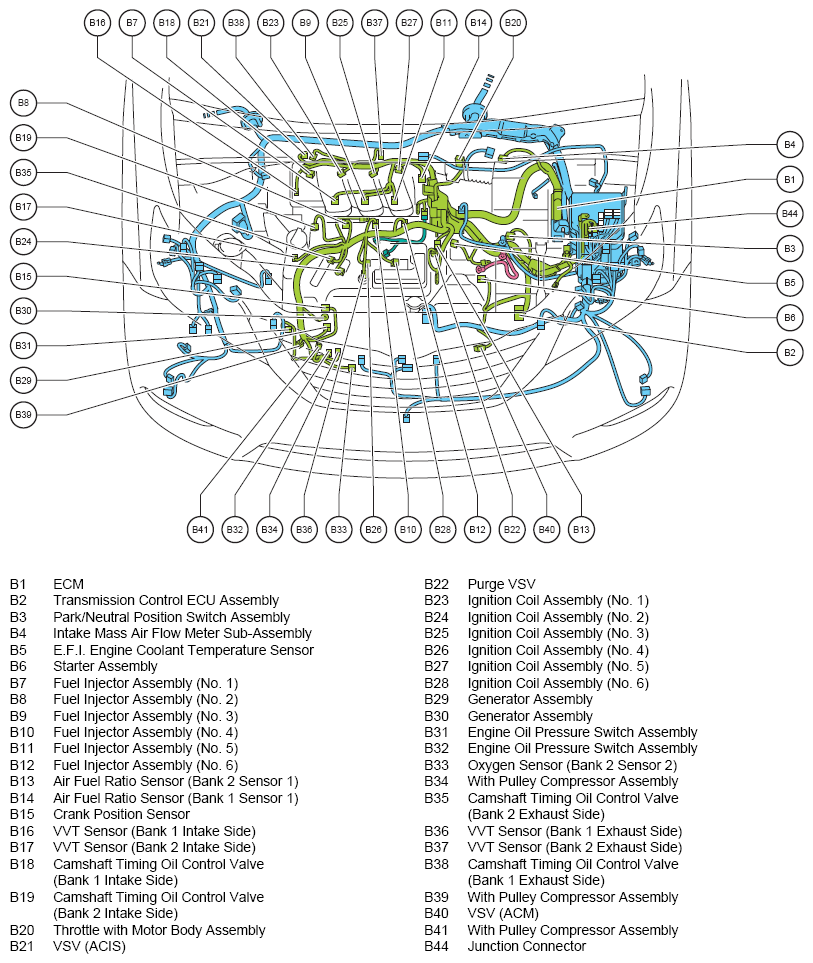

Fig 2: Engine Compartment Parts (2GR-FE; 2 Of 2)
G08846011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
